Product Details:
Payment & Shipping Terms:
|
| New Or Used: | New | Performance: | Quality Product |
|---|---|---|---|
| Service Weight: | 71400 Kgs (unload) | Drive Axle: | Kessler D102PL341 |
| Engine: | CUMMINS QSM11-330 | Load Capacity: | 45000kgs |
| Transmission: | ZF 5WG261 AUTO | Spreader Type: | Handling ISO 20'-40' Containers |
| Highlight: | 45000kgs Load Container Reach Stacker,Container Reach Stacker Spreader Type,45000kgs Reach Stacker |
||
| CHARACTERISTICS | ||
| Model | SLDR450 | |
| Power unit | Diesel | |
| Operation type | Driver seated | |
| Load capacity (L1, L2, L3) | Q (kg) | 45000/31000/16000 |
| Load centre, first row (L1) | c (mm) | 1800 |
| Load centre, second row (L2) | C (mm) | 3860 |
| Load centre, third row (L3) | C (mm) | 6400 |
| Axle centre to spreader center (L1-1/2 high) | x (mm) | 2800 |
| Wheelbase | y (mm) | 6400 |
| DIMENSIONS | ||
| Boom lift angle, raise/lowered | α/β(/°) | 61/0 |
| Height boom lowered | h1 (mm) | 4945 |
| Lift height (L1, L2, L3) | h3 (mm) | 15900/14100/11350 |
| Height, boom extended | h4 (mm) | 19000 |
| Height of cabin | h6 (mm) | 3900 |
| Height, operator's seat | h7 (mm) | 2840 |
| Towing coupling height | h10 (mm) | 600 |
| Twist lock height lowered | h13 (mm) | 1495 |
| Overall length with spreader | l1 (mm) | 11618 |
| Overall length | l2 (mm) | 8410 |
| Overall width | b1/b2 (mm) | 4180/3400 |
| Width of spreader 20'/40' | b3 (mm) | 6050/12150 |
| Ground clearance min. | m1 (mm) | 345 |
| Ground clearance, centre of wheelbase | m2 (mm) | 350 |
| Stacking aisle 20' containers | Ast (mm) | 10225 |
| Stacking aisle 40' containersTurning radius | Ast (mm) | 13050 |
| Min. pivoting point distance | Wa (mm) | 8605 |
| Min. pivoting point distance | b13 (mm) | 3400 |
| Wheelspan, front wheels | b10 (mm) | 3030 |
| Wheelspan, rear wheel | b11 (mm) | 2786 |
| WEIGHT | ||
| Weight (unladen/laden) | kg | 71400/116400 |
| Load on drive axle (unladen/laden) | kg | 36400/101900 |
| Load on steering axle (unladen/laden) | kg | 35000/14500 |
| PERFORMANCE | ||
| Travelling speed (unladen/laden) | Km/h | 25/21 |
| Gradeability (unladen/laden) | % | 30/28.8 |
| Tractive force (unladen) | Kn | 408 |
| Lifting speed (unladen/laden) | m/s | 0.39/0.28 |
| Lowering speed (unladen/laden) | m/s | 0.39/0.39 |
| CABIN | ||
| Movable closed cabin | ||
| Equipped with A/C, cooling/heating functions | ||
| Noise level at driver's seat | dBA | 74 |
| ENGINE | ||
| Brand | CUMMINS | |
| Type | QSM11 | |
| Cylinder no./displacement | 6/10820 cm3 | |
| Rated power @ rated speed | 250kw @ 2100rpm | |
| Max. torque | 1674Nm@ 1500rpm | |
| Rated current of alternator | 150A | |
| Battery | 24V | |
| TRANSMISSION | ||
| Brand | ZF/5WG261 AUTO | |
| Type | Auto-shift/interlock | |
| Clutch type | Torque converter | |
| Gear no. | 5F/3R | |
| TYRES | ||
| Drive wheels | 18.00-25 40PR | |
| Steering wheels | 18.00-25 40PR | |
| Type | Pneumatic | |
| Pressure | 10 bar | |
| Quantity, front/rear | 4/2 | |
| TANKS CAPACITY | ||
| Hydraulic oil tank | L | 800 |
| Fuel tank | L | 500 |
| DRIVE AXLE | ||
| Brand | Kessler/Germany | |
| Model | D102PL341 | |
| STEERING AXLE | ||
| Brand | Kessler/Germany | |
| Model | L102 | |
| Steering | Double action cylinder | |
| BRAKE SYSTEM | ||
| Service brake | Hydraulic wet-disc | |
| Parking brake | Electric released disc brake, enabled when power off | |
| HYDRAULIC SYSTEM | ||
| Twin piston pump | ||
| Max. pressure: 310 bar | ||
| Load sensing system | ||
| Hydraulic cooler with electric motor | ||
| Separate brake oil tank | ||
| BOOM | ||
| 2x Dual action lift cylinders | ||
| 1x Dual action extension cylinder | ||
| SPREADER | ||
| Handling ISO 20'-40' containers | ||
| 2x damping cylinder | 2x gearbox & brake system | |
| Brand | SP45 | |
| Rotate degrees | -105°/+195° | |
| Sideshift | -800/+800mm | |
| TRUCK SAFETIES | ||
| Error display system | ||
| Counter system for containers | ||
| Weighing system (low precision) | ||
| Electric anti-overload system | ||
| Full can-bus control system | ||
| Direction gearshift interlock | ||
| Parking brake enabled when power off | ||
| Seat switch | ||
| SPREADER SAFETIES | ||
| Locking/unlocking only after correct landing | ||
| Lifting/lowering only when the 4 twistlocks on same position | ||
| Anticollision rotation limit switch | ||

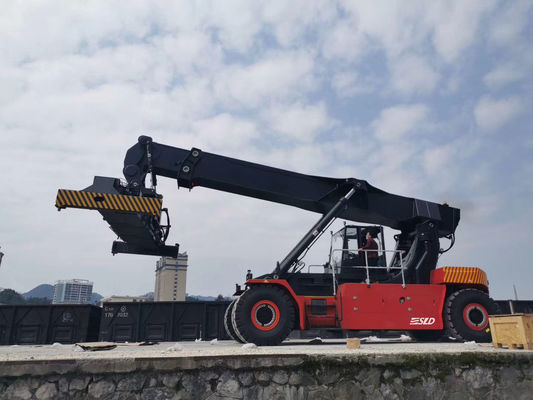

The Container Reach Stacker is designed to handle and transport shipping containers in various settings. It is ideal for use in shipping yards, ports, and warehouses to move containers from one location to another. Its performance is exceptional, making it a quality product that can deliver high productivity and efficiency.
This Container Reach Stacker is suitable for different applications and scenarios. Here are some of its product application occasions:
The Container Reach Stacker comes in a vibrant red color that makes it easy to spot in any setting. It is equipped with a Kessler L102 steering axle that adds to its maneuverability, making it easy to navigate tight spaces. This product is a must-have for any business that handles shipping containers regularly.
The Container Reach Stacker boasts a service weight of 71400 Kgs (unload) and is brand new. It is equipped with a Kessler D102PL341 drive axle and can handle a maximum load capacity of 45000kgs. The engine of this machine is a CUMMINS QSM11-330, making it a powerful and reliable choice for your cargo container stacking needs.
Product Packaging:
Shipping:
Q: What is the brand name of the container reach stacker?
A: The brand name of the container reach stacker is SLD.
Q: Where is the container reach stacker manufactured?
A: The container reach stacker is manufactured in China.
Q: What certifications does the container reach stacker have?
A: The container reach stacker has CE, ISO, and FDA certifications.
Q: What is the minimum order quantity of the container reach stacker?
A: The minimum order quantity of the container reach stacker is 1 unit.
Q: How much does the container reach stacker cost?
A: The price of the container reach stacker is negotiable.
Q: What are the packaging details for the container reach stacker?
A: The packaging details for the container reach stacker is nude.
Q: What is the delivery time for the container reach stacker?
A: The delivery time for the container reach stacker is 30 working days.
Q: What are the payment terms for the container reach stacker?
A: The payment terms for the container reach stacker are L/C and T/T.
Q: What is the supply ability of the container reach stacker?
A: The supply ability of the container reach stacker is 10 units per month.
