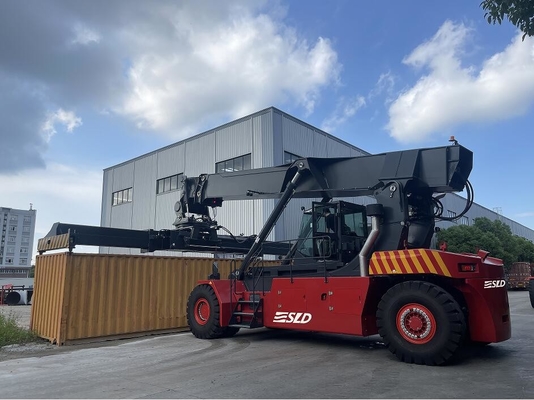

Heavy-Duty Container Reach Stacker Enhanced Performance And Safety For Container Operations

Heavy-Duty Container Reach Stacker Enhanced Performance And Safety For Container Operations
Heavy-Duty Container Reach Stacker Enhanced Performance And Safety For Container Operations Heavy-Duty Container Reach Stacker Enhanced Performance And Safety For Container Operations

Large Image :  Heavy-Duty Container Reach Stacker Enhanced Performance And Safety For Container Operations

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: CE; ISO; FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Detailed Product Description
Service Weight: 71400 Kgs (unload) Performance: Quality Product
New Or Used: New Drive Axle: Kessler D102PL341
Engine: CUMMINS QSM11-330 Load Capacity: 45000kgs
Color: Red Steering Axle: Kessler L102
Highlight:

Enhanced Performance Container Reach Stacker

,

Heavy Duty Container Reach Stacker

,

Safety Container Reach Stacker

Overview



In the demanding container logistics industry, efficiency and safety are paramount. Our Heavy-Duty Container Reach Stacker is designed to meet these needs by providing enhanced performance and safety features. Whether you're operating in a busy port, a sprawling container yard, or an intermodal terminal, this machine can handle heavy container operations with ease and precision, ensuring smooth workflow and minimal downtime.





Features and Benefits





  • Powerful and Efficient Engine: The reach stacker is equipped with a high-power diesel engine that delivers 250 kW of power. This ensures strong acceleration and consistent performance during heavy-duty container operations. The engine is also designed for fuel efficiency, helping to reduce operational costs.

  • Advanced Hydraulic System: The advanced hydraulic system provides precise and responsive control of the lifting and handling mechanisms. With a pressure of 25 MPa, it enables quick and smooth lifting, lowering, and tilting of containers, ensuring efficient work cycles and enhancing overall productivity.

  • Enhanced Safety Features: Safety is a top priority. The reach stacker is equipped with multiple safety features such as seat belts, overhead guards, emergency stop buttons, and advanced stability systems. These features protect the operator and prevent accidents during operation.

  • Operator-Friendly Cab: The cab is ergonomically designed for operator comfort and efficiency. It features an adjustable seat and steering wheel, allowing operators to customize their position for optimal comfort during long-duration operations. The spacious interior includes air conditioning and heating systems to ensure a pleasant working atmosphere in various weather conditions. Large windows and excellent visibility in all directions enable operators to have a clear view of the surrounding area and container movements, reducing the risk of accidents.

  • Excellent Maneuverability: Despite its large size and heavy-duty construction, the reach stacker offers impressive maneuverability. With a turning radius of 8 meters and a ground clearance of 0.5 meters, it can easily navigate through tight spaces within ports and yards, making it suitable for operations in congested areas. The hydraulic steering system provides precise control, enabling operators to easily position the machine and containers with accuracy.

  • Durable and Long-Lasting Construction: Built to withstand the harsh conditions of port and yard environments, the reach stacker is constructed from high-strength steel and other premium-quality materials. Its robust frame and reinforced components can endure prolonged heavy-duty usage, daily wear and tear, and exposure to various weather elements, ensuring long-term reliability and minimal downtime.

Technical Parameters



CHARACTERISTICS

Model

SLDR450

Power unit

Diesel

Operation type

Driver seated

Load capacity (L1, L2, L3)

Q (kg)

45000/31000/16000

Load centre, first row (L1)

c (mm)

1800

Load centre, second row (L2)

C (mm)

3860

Load centre, third row (L3)

C (mm)

6400

Axle centre to spreader center (L1-1/2 high)

x (mm)

2800

Wheelbase

y (mm)

6400

DIMENSIONS

Boom lift angle, raise/lowered

α/β(/°)

61/0

Height boom lowered

h1 (mm)

4945

Lift height (L1, L2, L3)

h3 (mm)

15900/14100/11350

Height, boom extended

h4 (mm)

19000

Height of cabin

h6 (mm)

3900

Height, operator's seat

h7 (mm)

2840

Towing coupling height

h10 (mm)

600

Twist lock height lowered

h13 (mm)

1495

Overall length with spreader

l1 (mm)

11618

Overall length

l2 (mm)

8410

Overall width

b1/b2 (mm)

4180/3400

Width of spreader 20'/40'

b3 (mm)

6050/12150

Ground clearance min.

m1 (mm)

345

Ground clearance, centre of wheelbase

m2 (mm)

350

Stacking aisle 20' containers

Ast (mm)

10225

Stacking aisle 40' containersTurning radius

Ast (mm)

13050

Min. pivoting point distance

Wa (mm)

8605

Min. pivoting point distance

b13 (mm)

3400

Wheelspan, front wheels

b10 (mm)

3030

Wheelspan, rear wheel

b11 (mm)

2786

WEIGHT

Weight (unladen/laden)

kg

71400/116400

Load on drive axle (unladen/laden)

kg

36400/101900

Load on steering axle (unladen/laden)

kg

35000/14500

PERFORMANCE

Travelling speed (unladen/laden)

Km/h

25/21

Gradeability (unladen/laden)

%

30/28.8

Tractive force (unladen)

Kn

408

Lifting speed (unladen/laden)

m/s

0.39/0.28

Lowering speed (unladen/laden)

m/s

0.39/0.39

CABIN

Movable closed cabin

Equipped with A/C, cooling/heating functions

Noise level at driver's seat

dBA

74

ENGINE

Brand



CUMMINS

Type



QSM11

Cylinder no./displacement



6/10820 cm3

Rated power @ rated speed



250kw @ 2100rpm

Max. torque



1674Nm@ 1500rpm

Rated current of alternator



150A

Battery



24V

TRANSMISSION

Brand



ZF/5WG261 AUTO

Type



Auto-shift/interlock

Clutch type



Torque converter

Gear no.



5F/3R

TYRES

Drive wheels



18.00-25 40PR

Steering wheels



18.00-25 40PR

Type



Pneumatic

Pressure



10 bar

Quantity, front/rear



4/2

TANKS CAPACITY

Hydraulic oil tank

L

800

Fuel tank

L

500

DRIVE AXLE

Brand



Kessler/Germany

Model



D102PL341

STEERING AXLE

Brand



Kessler/Germany

Model



L102

Steering



Double action cylinder

BRAKE SYSTEM

Service brake



Hydraulic wet-disc

Parking brake



Electric released disc brake, enabled when power off

HYDRAULIC SYSTEM

Twin piston pump

Max. pressure: 310 bar

Load sensing system

Hydraulic cooler with electric motor

Separate brake oil tank

BOOM

2x Dual action lift cylinders

1x Dual action extension cylinder

SPREADER

Handling ISO 20'-40' containers

2x damping cylinder

2x gearbox & brake system

Brand

SP45

Rotate degrees

-105°/+195°

Sideshift

-800/+800mm

TRUCK SAFETIES

Error display system

Counter system for containers

Weighing system (low precision)

Electric anti-overload system

Full can-bus control system

Direction gearshift interlock

Parking brake enabled when power off

Seat switch

SPREADER SAFETIES

Locking/unlocking only after correct landing

Lifting/lowering only when the 4 twistlocks on same position

Anticollision rotation limit switch





Applications

  • Port Operations: Efficiently handle the loading and unloading of containers from ships onto trucks or railcars. Its high lifting capacity and reach allow for quick turnaround of vessels and optimal utilization of port storage areas.

  • Container Yards: Manage and organize large numbers of containers. The reach stacker can easily transport containers between storage areas, stack them neatly, and retrieve them when needed for shipping or further transportation.

  • Intermodal Transport Hubs: Facilitate the transfer of containers between different transportation modes, such as from trucks to trains or vice versa. Its ability to handle various container sizes and types makes it an ideal solution for seamless intermodal operations.

  • Heavy-Cargo Logistics Centers: Handle oversized and heavy-duty containers or equipment. The high lifting capacity and robust construction of the reach stacker ensure safe and efficient movement of these challenging loads.
