Product Introduction

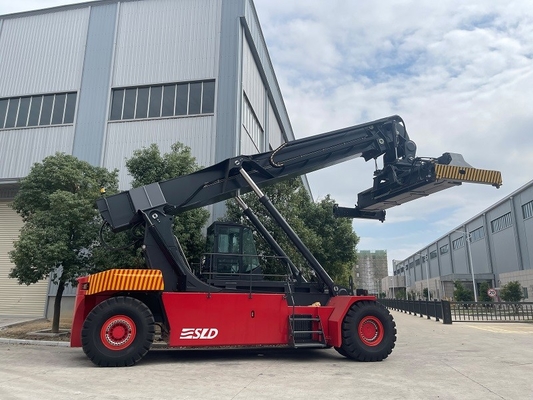

For all your container handling needs, look no further than our powerful and reliable Spreader Type Container Reach Stacker. Designed to efficiently move ISO 20' - 40' containers in ports, terminals, and logistics centers, this machine combines advanced technology with robust construction to deliver outstanding performance and durability.
Whether you're stacking containers in multiple tiers or transporting them over long distances within your facility, our reach stacker is equipped with the precision and power required for seamless operations.
Key Features
Powerful Lifting Capacity: Capable of handling ISO 20' - 40' with containers ease, ensuring smooth and safe lifting and stacking operations.
High - Precision Spreader: The advanced spreader system automatically attaches to containers, guaranteeing secure and accurate handling. It adapts to different container sizes quickly and efficiently.
Excellent Mobility: Equipped with a strong engine and agile steering system, the reach stacker can move swiftly across various terrains within your facility, reducing downtime between operations.
Wide Operating Range: Thanks to its telescopic boom and extendable outreach, it can stack containers to impressive heights and reach containers in tight spaces.
Ergonomic Operator Cabin: The comfortable cabin offers excellent visibility of the work area and easy - to - operate controls, reducing operator fatigue during long shifts.
Advanced Safety Features: Multiple safety sensors and alarms monitor the machine's status and surroundings. Emergency stop functions and stable counterweight design ensure the operator's safety.
| CHARACTERISTICS |
| Model |
SLDR450 |
| Power unit |
Diesel |
| Operation type |
Driver seated |
| Load capacity (L1, L2, L3) |
Q (kg) |
45000/31000/16000 |
| Load centre, first row (L1) |
c (mm) |
1800 |
| Load centre, second row (L2) |
C (mm) |
3860 |
| Load centre, third row (L3) |
C (mm) |
6400 |
| Axle centre to spreader center (L1-1/2 high) |
x (mm) |
2800 |
| Wheelbase |
y (mm) |
6400 |
| DIMENSIONS |
| Boom lift angle, raise/lowered |
α/β(/°) |
61/0 |
| Height boom lowered |
h1 (mm) |
4945 |
| Lift height (L1, L2, L3) |
h3 (mm) |
15900/14100/11350 |
| Height, boom extended |
h4 (mm) |
19000 |
| Height of cabin |
h6 (mm) |
3900 |
| Height, operator's seat |
h7 (mm) |
2840 |
| Towing coupling height |
h10 (mm) |
600 |
| Twist lock height lowered |
h13 (mm) |
1495 |
| Overall length with spreader |
l1 (mm) |
11618 |
| Overall length |
l2 (mm) |
8410 |
| Overall width |
b1/b2 (mm) |
4180/3400 |
| Width of spreader 20'/40' |
b3 (mm) |
6050/12150 |
| Ground clearance min. |
m1 (mm) |
345 |
| Ground clearance, centre of wheelbase |
m2 (mm) |
350 |
| Stacking aisle 20' containers |
Ast (mm) |
10225 |
| Stacking aisle 40' containersTurning radius |
Ast (mm) |
13050 |
| Min. pivoting point distance |
Wa (mm) |
8605 |
| Min. pivoting point distance |
b13 (mm) |
3400 |
| Wheelspan, front wheels |
b10 (mm) |
3030 |
| Wheelspan, rear wheel |
b11 (mm) |
2786 |
| WEIGHT |
| Weight (unladen/laden) |
kg |
71400/116400 |
| Load on drive axle (unladen/laden) |
kg |
36400/101900 |
| Load on steering axle (unladen/laden) |
kg |
35000/14500 |
| PERFORMANCE |
| Travelling speed (unladen/laden) |
Km/h |
25/21 |
| Gradeability (unladen/laden) |
% |
30/28.8 |
| Tractive force (unladen) |
Kn |
408 |
| Lifting speed (unladen/laden) |
m/s |
0.39/0.28 |
| Lowering speed (unladen/laden) |
m/s |
0.39/0.39 |
| CABIN |
| Movable closed cabin |
| Equipped with A/C, cooling/heating functions |
| Noise level at driver's seat |
dBA |
74 |
| ENGINE |
| Brand |
|
CUMMINS |
| Type |
|
QSM11 |
| Cylinder no./displacement |
|
6/10820 cm3 |
| Rated power @ rated speed |
|
250kw @ 2100rpm |
| Max. torque |
|
1674Nm@ 1500rpm |
| Rated current of alternator |
|
150A |
| Battery |
|
24V |
| TRANSMISSION |
| Brand |
|
ZF/5WG261 AUTO |
| Type |
|
Auto-shift/interlock |
| Clutch type |
|
Torque converter |
| Gear no. |
|
5F/3R |
| TYRES |
| Drive wheels |
|
18.00-25 40PR |
| Steering wheels |
|
18.00-25 40PR |
| Type |
|
Pneumatic |
| Pressure |
|
10 bar |
| Quantity, front/rear |
|
4/2 |
| TANKS CAPACITY |
| Hydraulic oil tank |
L |
800 |
| Fuel tank |
L |
500 |
| DRIVE AXLE |
| Brand |
|
Kessler/Germany |
| Model |
|
D102PL341 |
| STEERING AXLE |
| Brand |
|
Kessler/Germany |
| Model |
|
L102 |
| Steering |
|
Double action cylinder |
| BRAKE SYSTEM |
| Service brake |
|
Hydraulic wet-disc |
| Parking brake |
|
Electric released disc brake, enabled when power off |
| HYDRAULIC SYSTEM |
| Twin piston pump |
| Max. pressure: 310 bar |
| Load sensing system |
| Hydraulic cooler with electric motor |
| Separate brake oil tank |
| BOOM |
| 2x Dual action lift cylinders |
| 1x Dual action extension cylinder |
| SPREADER |
| Handling ISO 20'-40' containers |
| 2x damping cylinder |
2x gearbox & brake system |
| Brand |
SP45 |
| Rotate degrees |
-105°/+195° |
| Sideshift |
-800/+800mm |
| TRUCK SAFETIES |
| Error display system |
| Counter system for containers |
| Weighing system (low precision) |
| Electric anti-overload system |
| Full can-bus control system |
| Direction gearshift interlock |
| Parking brake enabled when power off |
| Seat switch |
| SPREADER SAFETIES |
| Locking/unlocking only after correct landing |
| Lifting/lowering only when the 4 twistlocks on same position |
| Anticollision rotation limit switch |
Applications
Port Operations: Load and unload containers from ships and transport them within the port area.
Container Terminals: Stack and manage containers in busy terminals, maximizing storage space.
Logistics Centers: Move containers between storage areas and loading docks efficiently.
Industrial Facilities: Handle containers within manufacturing plants or warehouses for material storage and transportation.
