Load Capacity: | 45000kgs | Service Weight: | 71400 Kgs (unload) |
---|---|---|---|
Engine: | CUMMINS QSM11-330 | Transmission: | ZF 5WG261 AUTO |
Drive Axle: | Kessler D102PL341 | Steering Axle: | Kessler L102 |
Spreader Type: | Handling ISO 20'-40' Containers | Color: | Red |
New Or Used: | New | Performance: | Quality Product |
Highlight: | 45000kgs Container Reach Stacker,reach stacker container handler,reach stacker machine |

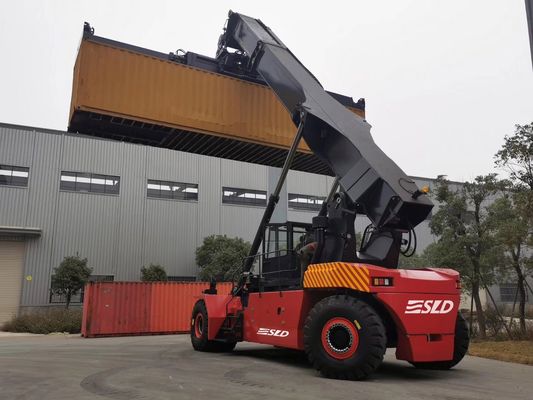

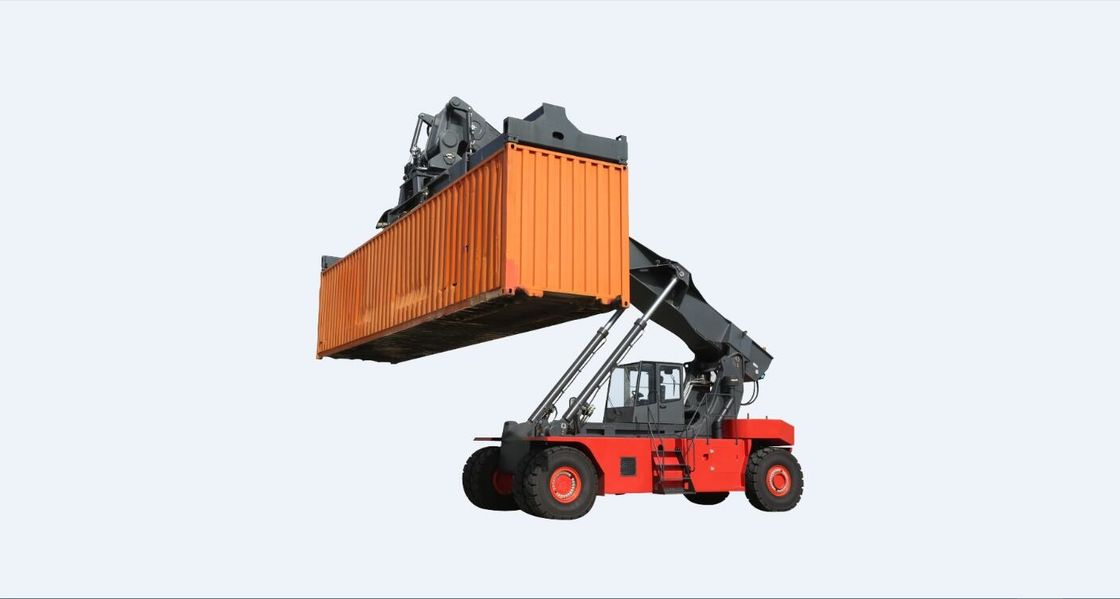

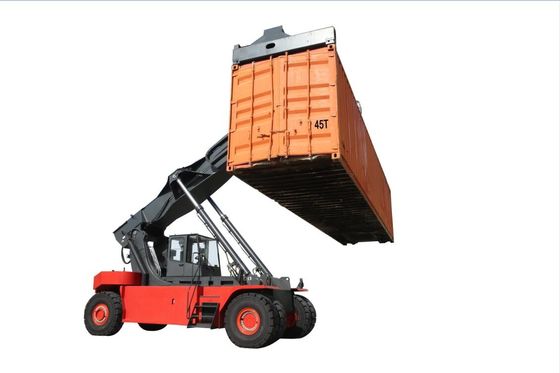

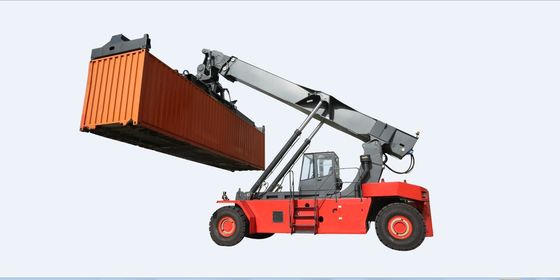

Rated Load 45000kgs Container Reach Stacker 45 Tons Work At The Seaport For Heavy Full Containers
45ton Container Reach Stacker advantages:
Full Can-bus Control System
Equipped with full Can-bus control system.
The engine / transmission / electric system / hydraulic system / loading safety system / spreader system are all integrated in the Can-bus system, all devices are monitored at real time. Parker control units ensure the system reliable and flexible.
Rigorous design process
FEM analysis supported design provides high strength of chasis and mast,making whole truck stable and robust.
Advanced Technology-Excellent Truck Quality
With multiple advantages, the truck has high safety/high efficiency/high precision and high stability performances. Integrated operating system ensure the truck highly productive.
Hydraulic System:
World class Linde hydraulic company is the famous hydraulic solution supplier which supplies the high-quality/high precision/high reliability hydraulic products.
It is equipped with Linde pump and control valve, these parts are specially developed for reach stacker, with load sense control circuit saving energy, precise control, low resistance and long life time, this excellent hydraulic system fully support truck excellent performance.
Intelligent hydraulic oil cooler can ensure the stable oil temperature and avoid the tremendous changing of the oil, prolong the oil lifetime to save money.
CHARACTERISTICS |
||
Model | SLDR450 | |
Power unit | Diesel | |
Operation type | Driver seated | |
Load capacity (L1, L2, L3) | Q (kg) | 45000/31000/16000 |
Load centre, first row (L1) | c (mm) | 1800 |
Load centre, second row (L2) | C (mm) | 3860 |
Load centre, third row (L3) | C (mm) | 6400 |
Axle centre to spreader center (L1-1/2 high) | x (mm) | 2800 |
Wheelbase | y (mm) | 6400 |
DIMENSIONS | ||
Boom lift angle, raise/lowered | α/β(/°) | 61/0 |
Height boom lowered | h1 (mm) | 4945 |
Lift height (L1, L2, L3) | h3 (mm) | 15900/14100/11350 |
Height, boom extended | h4 (mm) | 19000 |
Height of cabin | h6 (mm) | 3900 |
Height, operator's seat | h7 (mm) | 2840 |
Towing coupling height | h10 (mm) | 600 |
Twist lock height lowered | h13 (mm) | 1495 |
Overall length with spreader | l1 (mm) | 11618 |
Overall length | l2 (mm) | 8410 |
Overall width | b1/b2 (mm) | 4180/3400 |
Width of spreader 20'/40' | b3 (mm) | 6050/12150 |
Ground clearance min. | m1 (mm) | 345 |
Ground clearance, centre of wheelbase | m2 (mm) | 350 |
Stacking aisle 20' containers | Ast (mm) | 10225 |
Stacking aisle 40' containersTurning radius |
Ast (mm) | 13050 |
Min. pivoting point distance | Wa (mm) | 8605 |
Min. pivoting point distance | b13 (mm) | 3400 |
Wheelspan, front wheels | b10 (mm) | 3030 |
Wheelspan, rear wheel | b11 (mm) | 2786 |
WEIGHT | ||
Weight (unladen/laden) | kg | 71400/116400 |
Load on drive axle (unladen/laden) | kg | 36400/101900 |
Load on steering axle (unladen/laden) | kg | 35000/14500 |
PERFORMANCE | ||
Travelling speed (unladen/laden) | Km/h | 25/21 |
Gradeability (unladen/laden) | % | 30/28.8 |
Tractive force (unladen) | Kn | 408 |
Lifting speed (unladen/laden) | m/s | 0.39/0.28 |
Lowering speed (unladen/laden) | m/s | 0.39/0.39 |
CABIN | ||
Movable closed cabin | ||
Equipped with A/C, cooling/heating functions | ||
Noise level at driver's seat | dBA | 74 |
ENGINE |
||
Brand | CUMMINS | |
Type | QSM11 | |
Cylinder no./displacement | 6/10820 cm3 | |
Rated power @ rated speed | 250kw @ 2100rpm | |
Max. torque | 1674Nm@ 1500rpm | |
Rated current of alternator | 150A | |
Battery | 24V | |
TRANSMISSION | ||
Brand | ZF/5WG261 AUTO | |
Type | Auto-shift/interlock | |
Clutch type | Torque converter | |
Gear no. | 5F/3R | |
TYRES | ||
Drive wheels | 18.00-25 40PR | |
Steering wheels | 18.00-25 40PR | |
Type | Pneumatic | |
Pressure | 10 bar | |
Quantity, front/rear | 4/2 | |
TANKS CAPACITY | ||
Hydraulic oil tank | L | 800 |
Fuel tank | L | 500 |
DRIVE AXLE | ||
Brand | Kessler/Germany | |
Model | D102PL341 | |
STEERING AXLE | ||
Brand | Kessler/Germany | |
Model | L102 | |
Steering | Double action cylinder | |
BRAKE SYSTEM | ||
Service brake | Hydraulic wet-disc | |
Parking brake | Electric released disc brake, enabled when power off | |
HYDRAULIC SYSTEM | ||
Twin piston pump | ||
Max. pressure: 310 bar | ||
Load sensing system | ||
Hydraulic cooler with electric motor | ||
Separate brake oil tank | ||
BOOM | ||
2x Dual action lift cylinders | ||
1x Dual action extension cylinder | ||
SPREADER | ||
Handling ISO 20'-40' containers | ||
2x damping cylinder | 2x gearbox & brake system | |
Brand | SP45 | |
Rotate degrees | -105°/+195° | |
Sideshift | -800/+800mm | |
TRUCK SAFETIES |
||
Error display system | ||
Counter system for containers | ||
Weighing system (low precision) | ||
Electric anti-overload system | ||
Full can-bus control system | ||
Direction gearshift interlock | ||
Parking brake enabled when power off | ||
Seat switch | ||
SPREADER SAFETIES | ||
Locking/unlocking only after correct landing | ||
Lifting/lowering only when the 4 twistlocks on same position | ||
Anticollision rotation limit switch |
