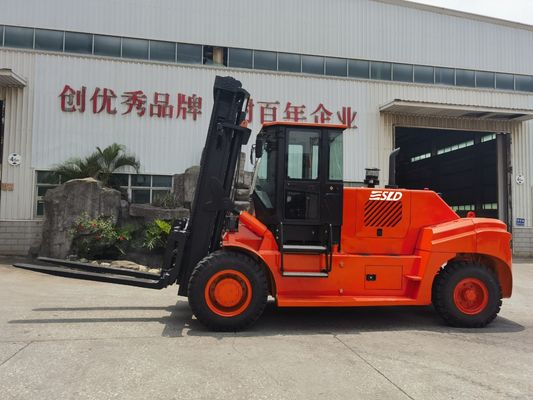

FD200 20 Ton Port Yard Container Lifting Forklift With Joystick Hydraulic Control

Terminal operators do not buy capacity alone, they buy repeatable cycle time. The FD200P is the port configured version of the 20 tonne platform, fitted with proportional joystick hydraulic control so fine fork movements happen without engine revving, a 5500 mm mast sized for three high loaded stacking plus lift clearance, and an operator environment designed for twelve hour shifts. Wet disc brakes, a sealed wiring harness with IP67 connectors, and a corrosion protected paint system address the salt and humidity that shorten the life of general purpose trucks in coastal yards.

• Proportional Joystick Control Single lever joystick with proportional hydraulics gives millimetre control at the fork tip, cutting container damage and setting time on the landing zone.
• Terminal Cabin Specification Full air conditioned cabin with sliding laminated glass, sun visor, rear view camera display and an air suspension seat matched to high cycle work.
• 5500 mm Container Mast Sized for three high loaded stacking with 1500 mm of clearance margin, reducing wasted lift travel on every move.
• Corrosion Protection Blasted steel, epoxy primer and a two pack topcoat with sealed cavity wax treatment resist salt laden air in coastal terminals.
• IP67 Electrical System Sealed connectors, tinned harness and a waterproof fuse panel remove the electrical faults that account for most yard downtime in humid climates.
• Wet Disc Braking Oil immersed wet disc brakes on the drive axle deliver consistent stopping power with extended service intervals under loaded cycling.

Coastal container terminals, ro ro yards, barge loading points and inland dry ports with tidal exposure all benefit from the sealed electrical system and corrosion package. The proportional joystick is particularly valued where containers must be landed on trailer twistlocks to within a few millimetres, a routine operation in feeder terminal operations.

A dry port near Ningbo used general purpose 20 tonne trucks in a two shift container operation. After twelve months, electrical faults and brake wear had driven availability down to 82 percent. Two FD200P units replaced them, availability measured 96 percent over the following year, and average move time fell by eleven seconds per container, which equated to roughly 40 extra moves per shift.

The SLD factory group operates four workshops dedicated to heavy lift trucks between 12 and 45 tonnes. In house capabilities include mast fabrication, counterweight casting, hydraulic cylinder machining and full vehicle electrical harness assembly, which keeps lead times short and quality control tight. The company exports to over 70 countries with a service network of regional parts warehouses, and holds CE, ISO 9001 and SGS factory audit reports. Production capacity stands at 600 heavy units per year.

The heavy lift programme has been in continuous production for eighteen years, with cumulative output above 4,000 units. Engineering holds complete weld traceability records, uses finite element analysis on every new mast section, and runs a 125 percent overload test on 100 percent of finished masts. Assembly technicians average nine years on the heavy line. Paint systems are salt spray tested to 500 hours, and every machine undergoes a four hour loaded road test before dispatch.

Q: What is the difference between this model and the standard FD200?
The FD200P adds proportional joystick hydraulics, a 5500 mm terminal mast, wet disc brakes, IP67 electrics and the coastal corrosion package. The FD200 is the general heavy cargo version with a 6000 mm mast.

Q: Is a rear view camera standard?
Yes. A camera and 7 inch cabin monitor are factory fitted, along with reverse alarm and work light package suitable for night shifts.

Q: Can the joystick be switched to lever control?
The hydraulic valve block supports both. Lever control can be specified at order stage, and a conversion kit is available later if operator preferences change.

Q: What maintenance interval applies in terminal duty?
Engine oil and filters at 250 hours, hydraulic filter at 500 hours, and a full inspection at 1,000 hours. Wet disc brake oil is changed at 2,000 hours.

Q: How is spare parts support handled for terminals?
A recommended two year spare parts package can ship with the trucks, and the regional parts warehouse holds consumables for next day dispatch in most Asian markets.

Export packing uses flat rack containers with the mast folded, forks detached and all hydraulic connections capped. Shipment is completed within 30 working days of deposit under T/T or L/C terms. Warranty coverage extends 12 months or 2,000 hours across frame, mast, transmission and hydraulics. The after sales team supplies a commissioning checklist, operator training videos, and a stocked one year wear parts list, with air freight support for urgent components in Southeast Asia, the Middle East and Africa.
