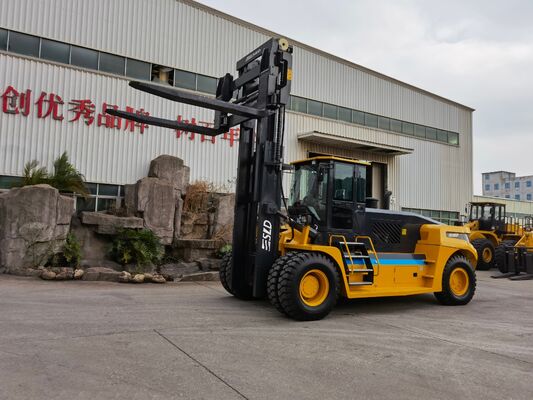

FD250 25 Ton Heavy Lift Forklift Truck
The FD250 25 Ton Heavy Lift Forklift Truck is engineered for the most demanding lifting duties in port container logistics, heavy pallet and cargo handling, steel and machinery loading, and break bulk terminal work. Rated at 25,000 kg at a 1250 mm load center, this robust machine combines a Weichai WD10G240E21 turbocharged diesel engine with a ZL60 powershift transmission and reinforced hub reduction axle for stable, predictable performance in continuous operations.
Key Features
- Reliable Weichai Turbocharged Power: WD10 series turbocharged diesel engine delivers strong torque and low fuel consumption for high-efficiency 25-ton duty.
- Heavy Duty Box-Type Frame: Reinforced frame verified through 3D finite element analysis with non-destructive testing of main welds for superior stability.
- Reinforced Hub Reduction Axle: High-strength axle case and hub reduction design ensure excellent stability and reliability with 25,000 kg loads.
- Full-Hydraulic Steering: Transverse oil cylinder steering bridge provides flexible, light, and reliable steering even under maximum load.
- Four Caliper Disc Brakes: Thickened discs and rear air tank maintain stable braking and fast heat dissipation when fully loaded.
- Pilot Valve Control: Enhances working efficiency and reduces driver labor intensity.
- Independent Cooling: Separate transmission oil and hydraulic oil cooling maintains system stability in demanding conditions.
- Comfortable Cab: Air-conditioned cab with rupture membrane, heat and sound insulation, sunroof, and damping seat for operator productivity.
Technical Specifications
| Parameter |
Specification |
Unit |
| Model |
FD250 |
— |
| Power Type |
Diesel |
— |
| Rated Capacity |
25,000 |
kg |
| Load Center |
1250 |
mm |
| Lift Height |
4000 |
mm |
| Fork Size |
2200x280x110 |
mm |
| Overall Width |
3100 |
mm |
| Wheelbase |
4650 |
mm |
| Service Weight |
33,000 |
kg |
| Max Traction (Load) |
165 |
kN |
| Travel Speed (Unload/Load) |
28/23 |
km/h |
| Lifting Speed (Unload/Load) |
255/180 |
mm/s |
| Engine Model |
WD10G240E21 (WEICHAI) |
— |
| Rated Output |
155 |
kW |
| Transmission |
ZL60 |
— |
| Front Tire |
4 x 14.00-24-32PR |
— |
Note: The above data are subject to change without prior notice. Custom masts, forks, attachments and lifting heights are available for special heavy lift projects.
Applications
The FD250 is specified for port container logistics, heavy pallet and cargo handling, steel and machinery loading, and break bulk terminal work. Its 25,000 kg capacity, full-hydraulic steering and heavy duty chassis make it equally effective in continuous terminal cycles and in yard, mill or fabrication shop duty. The machine is also deployed for heavy cargo loading, oversized equipment movement and megaproject logistics where a crane would otherwise be required.
Company Strength
SLD is a specialist heavy lift forklift manufacturer with an integrated production base covering research and development, structural fabrication, assembly, testing and after-sales service. Our engineering team designs the box-type frame, mast and axle packages in-house, and every heavy duty forklift passes load testing and inspection before shipment. We supply 16-ton to 40-ton heavy lift forklifts to more than 60 countries with comprehensive export support.
Production Experience
With over twenty years of manufacturing heavy duty material handling equipment, our factory has delivered thousands of 25-ton class machines to ports, steel plants, shipyards, timber yards and precast concrete facilities. Production follows a disciplined process including laser cutting, robotic welding, non-destructive testing, precision machining, and controlled assembly. Each FD250 undergoes comprehensive testing before shipment.
Frequently Asked Questions
What is the capacity of the FD250?
The FD250 is rated at 25,000 kg at a 1250 mm load center.
Does it handle break bulk cargo?
Yes, with the correct forks or clamp attachments the machine lifts heavy crates, machinery and steel that sit outside container flows.
What is the service weight?
Service weight is approximately 33,000 kg depending on configuration.
Is air conditioning available?
A fully air conditioned luxury cab with wide view glass is available for hot climate terminals.
How do I get a quotation?
Contact our export team with your duty cycle and destination port and we will send a tailored quotation.
Packaging & Quality Assurance
Every FD250 is prepared for ocean freight with corrosion protection and secured fixings. Documentation includes operation manual, spare parts catalogue and warranty statement. The forklift carries a 12-month or 2000-hour warranty on major components, supported by our overseas spare parts channels and remote technical help. We also offer scheduled maintenance plans and operator training for fleet owners.
