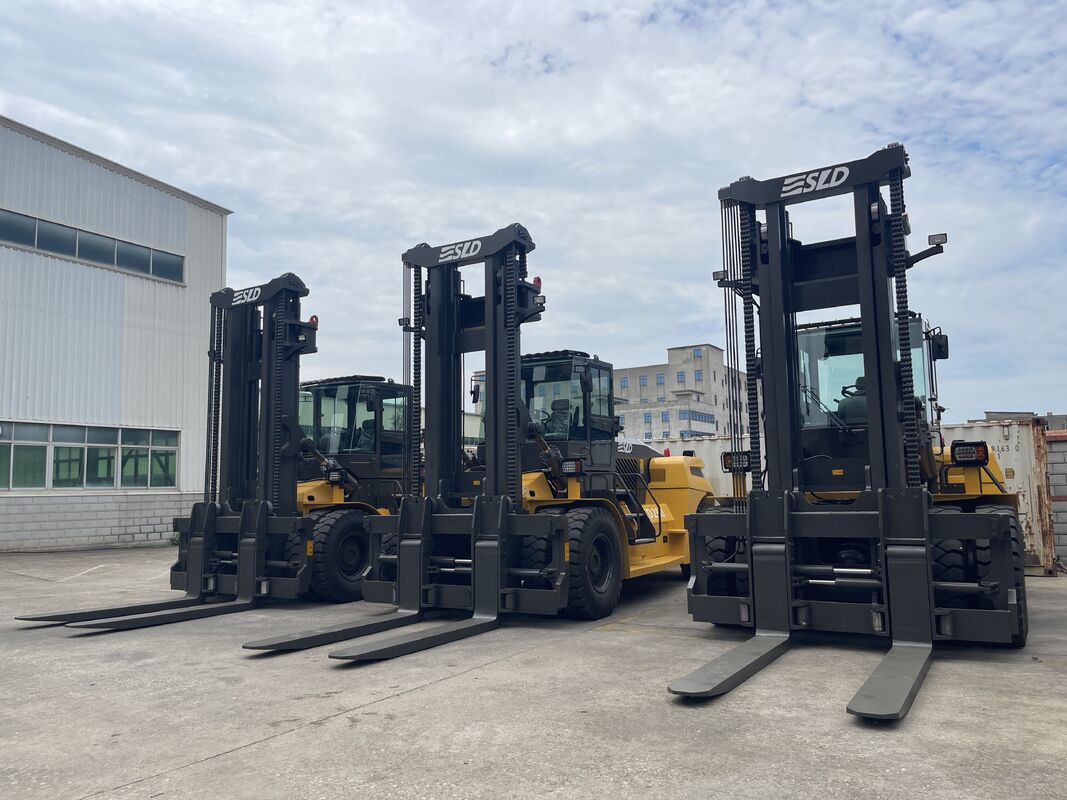

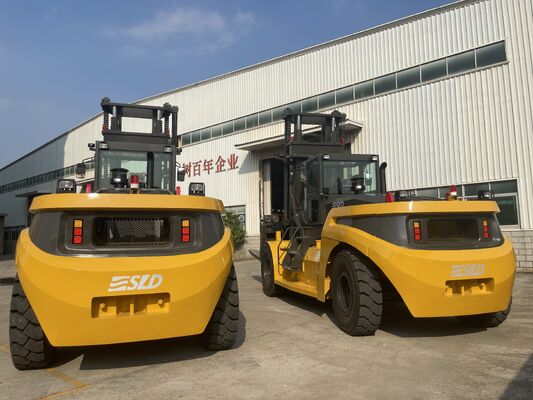

Container Handling 30 Ton High Lift Diesel Forklift Truck FD300 5500mm Mast

Container Handling 30 Ton High Lift Diesel Forklift Truck FD300 5500mm Mast
Container Handling 30 Ton High Lift Diesel Forklift Truck FD300 5500mm Mast Container Handling 30 Ton High Lift Diesel Forklift Truck FD300 5500mm Mast

Large Image :  Container Handling 30 Ton High Lift Diesel Forklift Truck FD300 5500mm Mast

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO 9001:2015, CE
Model Number: FD300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 78,000 - 105,000 / Unit
Packaging Details: Export-grade seaworthy packaging, anti-rust oil protection for machined surfaces
Delivery Time: 25-35 days after deposit
Payment Terms: T/T,L/C
Supply Ability: 30 Units per Month
Detailed Product Description
Rated Capacity: 30000 Kg Load Center: 1250 Mm
Lift Height: 6000 Mm Engine Model: WD10G240E21
Engine Manufacturer: Weichai / Cummins Transmission: Hydraulic Power Shift
Service Weight: 38000 Kg Overall Width: 3200 Mm
Highlight:

High Mast Container Handling

,

Engine Option

,

Full Hydraulic Steering System

Container Handling 30 Ton High Lift Diesel Forklift Truck FD300 5500mm Mast
The SLD FD300 is a 30-tonne high-lift diesel forklift truck designed for container depots, ports, and intermodal terminals where stacked container handling demands superior free-lift and precise mast control. Equipped with a 5500 mm high mast and full-hydraulic steering, the FD300 allows operators to stack and retrieve containers safely even in confined yard aisles. Backed by SLD's ISO 9001:2015 and CE-certified manufacturing and a reinforced heavy-duty drive axle, this machine delivers the reliability that round-the-clock terminal operations require.
Key Features
  • Turbocharged Diesel Engine: Weichai (optional) turbocharged engine delivers powerful, fuel-efficient and emission-compliant performance for high-efficiency operation.
  • Hydraulic Power-Shift Transmission: Double-turbine hydraulic torque converter with single-lever speed control for smooth, effortless gear changes.
  • Reinforced Heavy-Duty Drive Axle: Hub reduction design with a high-strength axle case provides large load capacity, stability and reliability under full load.
  • Full-Hydraulic Steering System: Transverse-cylinder steering bridge delivers light, precise and responsive steering for maneuvering in tight spaces.
  • Four Heavy Caliper Disc Brakes: Thickened brake discs with a rear air tank offer stable, fast heat dissipation and dependable braking under heavy load.
  • Double-Pump Hydraulic System: Convergent-flow design reduces system flow, lowers power consumption and ensures reliable, smooth lifting performance.
  • Box-Type Frame Structure: Exquisite workmanship with 3D finite element analysis and non-destructive testing on critical welds for superior structural integrity.
  • Comfortable Operator Cab: Air-conditioned cab with ROPS/FOPS protection, rupture membrane, heat insulation, sunroof and ergonomic suspension seat.
  • High Free-Lift Mast: Box-type internal-external mast with special all-round roller bearings enables 6000 mm lift height and smooth, precise container stacking.
Technical Specifications
Parameter Specification
Model FD300
Power Type Diesel
Rated Capacity 30000 kg
Load Center 1250 mm
Lift Height 5500 mm
Mast Tilt Angle (F/R) 6° / 12°
Fork Size 2400×300×120 mm
Overall Dimensions (L×W×H) 7160 × 3200 × 5960 mm
Min. Outer Turning Radius 6480 mm
Travel Speed (Unload/Load) 28 / 24 km/h
Max. Gradeability (Load) 20%
Service Weight 40000 kg
Tires (Front / Rear) 4×14.00-24-36PR / 2×14.00-24-36PR
Engine Model / Rated Output WD10G240E21 / 178 kW
Transmission Hydraulic Power Shift
Manufacturing Experience & Company Strength
With more than a decade of focused heavy-lift manufacturing experience, SLD has continuously refined its box-type frame design, hydraulic power-shift transmission, and reinforced drive axle into a proven, field-tested platform. Our engineering team optimizes every powertrain and hydraulic system based on real-world feedback from thousands of units operating in demanding industrial environments, which is why SLD trucks deliver consistent uptime and a low total cost of ownership across their service life.
Application Cases & Solutions
SLD FD300 high-lift trucks are engineered for container depots, ports, and intermodal terminals where stacked container handling demands high free-lift and precise mast control. In a regional container yard, FD300 units handle 20-ft and 40-ft containers on a continuous double-shift schedule, and their reinforced masts and full-hydraulic steering allow operators to stack containers safely even in confined yard aisles.
Frequently Asked Questions (FAQ)
What is the minimum order quantity (MOQ)?
The MOQ is one unit. We welcome both single-unit trial orders and bulk fleet purchases.
Which engine options are available?
Weichai engines are standard, and engines are available as an option to meet specific emission or performance requirements.
What is the delivery time?
Standard delivery is 25-35 days after receiving the deposit, depending on configuration and order quantity.
Can the mast height, forks, or attachments be customized?
Yes. Mast height, fork length, side shift, fork positioner, and various attachments can be customized to match your application.
Do you provide spare parts and after-sales support?
Yes. We maintain a comprehensive spare parts inventory and offer online technical guidance plus on-site service through our global service network.
What warranty is provided?
Each forklift comes with a 12-month or 2,000-hour warranty (whichever comes first), covering manufacturing defects in materials and workmanship.
Packaging & Quality Assurance
Each SLD forklift is shipped with export-grade seaworthy packaging. Machined surfaces are protected with anti-rust oil, and the machine is secured in a standard container or as break-bulk cargo. A complete tool kit, operator's manual, and CE documentation are included. Before dispatch, every unit passes a full-load test, hydraulic pressure test, and a 100% inspection of the mast, drive axle, and braking system, and is backed by our 12-month warranty.
