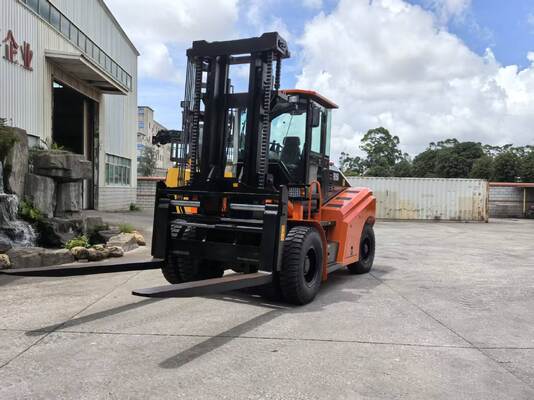

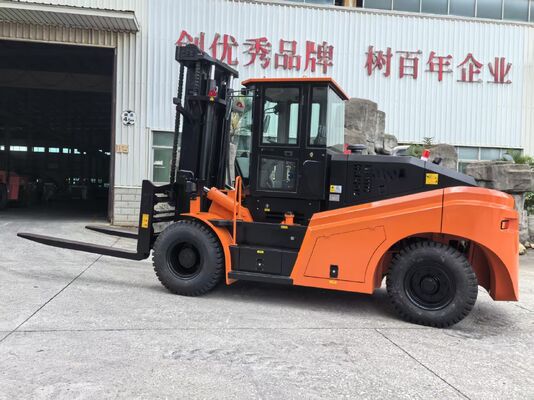

SLD FD160 16 Ton Heavy Duty Diesel Forklift Truck 4000mm Mast Weichai Engine
The SLD FD160 is a 16-tonne counterbalanced heavy-duty diesel forklift truck engineered for continuous, high-duty-cycle material handling in steel mills, precast concrete plants, and heavy machinery workshops. Powered by a Weichai WD10G175E21 turbocharged diesel engine and a hydraulic power-shift transmission, the FD160 combines high traction with energy-efficient operation. Manufactured by SLD in an ISO 9001:2015 and CE-certified facility, this truck is built on a reinforced box-type frame validated by 3D finite element analysis and non-destructive testing of all critical welds, ensuring the reliability that heavy industry depends on.
Key Features
- Turbocharged Diesel Engine: Weichai (optional) turbocharged engine delivers powerful, fuel-efficient and emission-compliant performance for high-efficiency operation.
- Hydraulic Power-Shift Transmission: Double-turbine hydraulic torque converter with single-lever speed control for smooth, effortless gear changes.
- Reinforced Heavy-Duty Drive Axle: Hub reduction design with a high-strength axle case provides large load capacity, stability and reliability under full load.
- Full-Hydraulic Steering System: Transverse-cylinder steering bridge delivers light, precise and responsive steering for maneuvering in tight spaces.
- Four Heavy Caliper Disc Brakes: Thickened brake discs with a rear air tank offer stable, fast heat dissipation and dependable braking under heavy load.
- Double-Pump Hydraulic System: Convergent-flow design reduces system flow, lowers power consumption and ensures reliable, smooth lifting performance.
- Box-Type Frame Structure: Exquisite workmanship with 3D finite element analysis and non-destructive testing on critical welds for superior structural integrity.
- Comfortable Operator Cab: Air-conditioned cab with ROPS/FOPS protection, rupture membrane, heat insulation, sunroof and ergonomic suspension seat.
Technical Specifications
| Parameter |
Specification |
| Model |
FD160 |
| Power Type |
Diesel |
| Rated Capacity |
16000 kg |
| Load Center |
1250 mm |
| Lift Height |
4000 mm |
| Mast Tilt Angle (F/R) |
6° / 12° |
| Fork Size |
2000*280*110 mm |
| Overall Dimensions (L×W×H) |
5800 × 2800 × 3960 mm |
| Min. Outer Turning Radius |
5600 mm |
| Travel Speed (Unload/Load) |
28 / 24 km/h |
| Max. Gradeability (Load) |
20% |
| Service Weight |
20500 kg |
| Tires (Front / Rear) |
4×12.00-24-28PR / 2×12.00-24-28PR |
| Engine Model / Rated Output |
WD10G175E21 / 129 kW |
| Transmission |
Hydraulic Power Shift |
Manufacturing Experience & Company Strength
With more than a decade of focused heavy-lift manufacturing experience, SLD has continuously refined its box-type frame design, hydraulic power-shift transmission, and reinforced drive axle into a proven, field-tested platform. Our engineering team optimizes every powertrain and hydraulic system based on real-world feedback from thousands of units operating in demanding industrial environments, which is why SLD trucks deliver consistent uptime and a low total cost of ownership across their service life.
Application Cases & Solutions
SLD FD160 trucks are widely deployed in steel and aluminum plants for coil and ingot handling, in precast concrete yards for moving heavy molds and finished panels, and in heavy machinery workshops for equipment repositioning. In one steel mill application, a fleet of FD160 units maintained 24/7 slab-handling duty with only routine maintenance, reducing material-handling downtime by more than 30% compared with the customer's previous fleet.
Frequently Asked Questions (FAQ)
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is one unit. We welcome both single-unit trial orders and bulk fleet purchases.
Q: Which engine options are available?
A: Weichai engines are standard, and engines are available as an option to meet specific emission or performance requirements.
Q: What is the delivery time?
A: Standard delivery is 25-35 days after receiving the deposit, depending on configuration and order quantity.
Q: Can the mast height, forks, or attachments be customized?
A: Yes. Mast height, fork length, side shift, fork positioner, and various attachments can be customized to match your application.
Q: Do you provide spare parts and after-sales support?
A: Yes. We maintain a comprehensive spare parts inventory and offer online technical guidance plus on-site service through our global service network.
Q: What warranty is provided?
A: Each forklift comes with a 12-month or 2,000-hour warranty (whichever comes first), covering manufacturing defects in materials and workmanship.
Packaging & Quality Assurance
Each SLD forklift is shipped with export-grade seaworthy packaging. Machined surfaces are protected with anti-rust oil, and the machine is secured in a standard container or as break-bulk cargo. A complete tool kit, operator's manual, and CE documentation are included. Before dispatch, every unit passes a full-load test, hydraulic pressure test, and a 100% inspection of the mast, drive axle, and braking system, and is backed by our 12-month warranty.
