| Power Type: | Diesel | Engine: | ISUZU 6BG1 |
|---|---|---|---|
| Rated Load: | 6000kgs | Load Center: | 600mm |
| Max.Lifiting Height: | 3600mm | Wheelbase: | 2900mm |
| Overall Dimension LxWxH: | 5280x2100x3000mm | Fork Size: | 1220x150x60mm |
| Min.turning Radius: | 4450mm | Service Weight: | 10140mm |

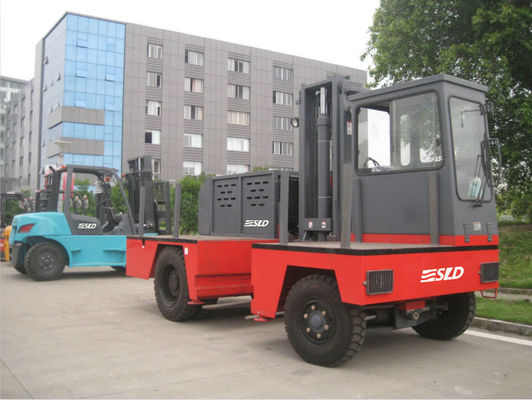

| Highlight: | 6 Tons Side Forklift Truck,ISUZU Engine Side Forklift Truck,ISUZU 6BG1 Side Loader Forklift |
||
We are professional manufacturer of 3.0-12.0 tons Diesel Side Loader Forklift from China.
Side loader forklift are specially use in Warehouse,Port,Factory,Distribution Center,Logistics ect for side lifting long objects. such as steel bar, batten and other kinds of heterosexual strip object etc. good performance, high work efficiency, good for value.
3.0 Ton-12.0Ton Diesel Side Loader Forklift advantages:
- Work in Narrow Aisle
- Side loading advantage
- Used of long objects
- Rubber Mounted Half Open Cabin
- Multi-Direction Operation
- 3 Wheel hydrostatic Drive
- Load Sensing Steering
- 4 Way Lever Positioning of Wheels
- Hydraulic Oil Cooler
The specification of 5 tons 6 tons side forklift truck
| CONFIGURATION DIMENSIONS AND PWRFORMANCE | FDS50 | FDS60 | |
| Rated Capacity | kg | 5000 | 6000 |
| CG of cargo | mm | 600 | 600 |
| Max. lift height | mm | 3600 | 3600 |
| Max. lift speed(laden) | mm/s | 350 | 350 |
| Max. traveling speed(laden) | Km/s | 24 | 24 |
| Fork tilt angle(up/down) | Deg | 3/5 | 3/5 |
| Gradeability | % | 20 | 20 |
| Platform width | mm | 1300 | 1300 |
| Platform length | mm | 5150 | 5150 |
| Fork length | mm | 1220 | 1220 |
| Axle spacing | mm | 2800 | 2800 |
| Wheel spacing Front of the wheel spacing | mm | 1750 | 1750 |
| Wheel spacing Behind of the wheel spacing | mm | 1750 | 1750 |
| Overall dimension(LXWXH) | mm | 5150X2100X2800 | 5150X2100X2800 |
| Service weight | kg | 8000 | 8500 |
| Tyre size Front wheel | mm | 2-9.00-16-14PR | 2-9.00-16-14PR |
| Tyre size Rear wheel | mm | 2-9.00-16-14PR | 2-9.00-16-14PR |
| Engine | |||
| Manufacturer | ISUZU | ISUZU | |
| Model | 6BG1 | 6BG1 | |
| Rated power / Speed | kw | 82.3/2000 | 82.3/2000 |
