Product Details:
Payment & Shipping Terms:
|
| Rated Load: | 10000kgs | Load Center: | 600mm |
|---|---|---|---|
| Max.Lifiting Height: | 3600mm | Overall Dimension LxWxH: | 6150x2620x3264mm |
| Fork Size: | 1220x175x85mm | Wheelbase: | 3700mm |
| Min.turning Radius: | 5570mm | Service Weight: | 16000mm |
| Power Type: | Diesel | Engine: | ISUZU 6BG1 |
| Highlight: | FDS100 Diesel Side Loader Forklift,10Tons Side Loader Forklift,ISUZU 6BG1 Engine Side Lifter Forklift |
||

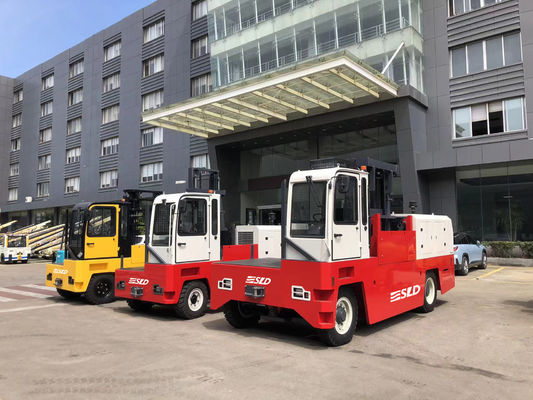

10 Tons FDS100 Diesel Side Loader Forklift
Side loader forklift are specially use in Warehouse,Port,Factory,Distribution Center, Logistics ect for side lifting long objects. such as steel bar, batten and other kinds of heterosexual strip object etc. good performance, high work efficiency, good for value.
3.0 Ton-12.0Ton Diesel Side Loader Forklift advantages:
- Work in Narrow Aisle
- Side loading advantage
- Used of long objects
- Rubber Mounted Half Open Cabin
- Multi-Direction Operation
- 3 Wheel hydrostatic Drive
- Load Sensing Steering
- 4 Way Lever Positioning of Wheels
- Hydraulic Oil Cooler
The specification of 10 tons diesel side loader forklift
| 1 | Model | FDS100 | |
| 2 | Power type | diesel | |
| 3 | Rated capacity | kg | 10000 |
| 4 | Load center | mm | 600 |
| 5 | Lift height | mm | 4500 |
| 6 | Fork size L*W*T | mm | 1220x175x85 |
| 7 | Mast tilt angle F/R | deg | 6 / 6 |
| 8 | Front overhang(wheel center to fork face) | mm | 700 |
| 9 | Ground clearance(bottom of mast) | mm | 160 |
| 10 | Overall dimension L*W*T | mm | 6250x2620x3240 |
| 11 | platform width | mm | 1800 |
| 12 | platform length | mm | 6250 |
| 13 | overhead guard height | mm | 2820 |
| 14 | Turning radius(outside) | mm | 5650 |
| 15 | Travel(empty load) | km/h | 15 |
| 16 | Lifting(full load) | mm/s | 350 |
| 17 | Max. gradeability | % | 20 |
| 18 | Front Tires | 2X9.00-20-14PR | |
| 19 | Rear Tires | 4X9.00-20-14PR | |
| 20 | Wheelbase | mm | 3700 |
| 21 | Service weight | kg | 15600 |
| 22 | Battery voltage/capacity | v/ah | (12/ 80)x2 |
| 23 | Engine model | 6BG1 | |
| 24 | Manufacturer of Engine | ISUZU | |
| 25 | Rated output/r.p.m. | kw | 82.3/20000 |
| 26 | Rated torque/r.p.m. | n.m | 416/1400-1600 |
| 27 | No. of cylinder | 6 | |
| 28 | Bore x stroke | mm | 105*125 |
| 29 | Displacement | cc | 6494 |
| 30 | Fuel tank capacity | L | 170 |
| 31 | Transimission type | Hydraulic | |
| 32 | Transmission Stage | FWD/RVS | 2/2 |
| 33 | Operating Pressure for Attachment | Mpa | 19 |
