Product Details:
Payment & Shipping Terms:
|
| Rated Load: | 45000kgs | Max. Lifting Height: | 2530mm |
|---|---|---|---|
| Operating Weight: | 40000kgs | Load Center: | 800mm |
| Overall Dimension(L×W×H): | 10100×3260×3870mm | Engine: | Weichai |
| Engine Power: | 199kw | Wheelbase: | 4500 Mm |
| Color: | Yellow | New Or Used: | New |
| Highlight: | 45Ton Forklift Loader,Marble Granite Forklift Loader,45T forklift loader |
||
Rated Load 45000kgs Forklift Loader Lift 45Tons Marble Granite In Stone Logstic Yard

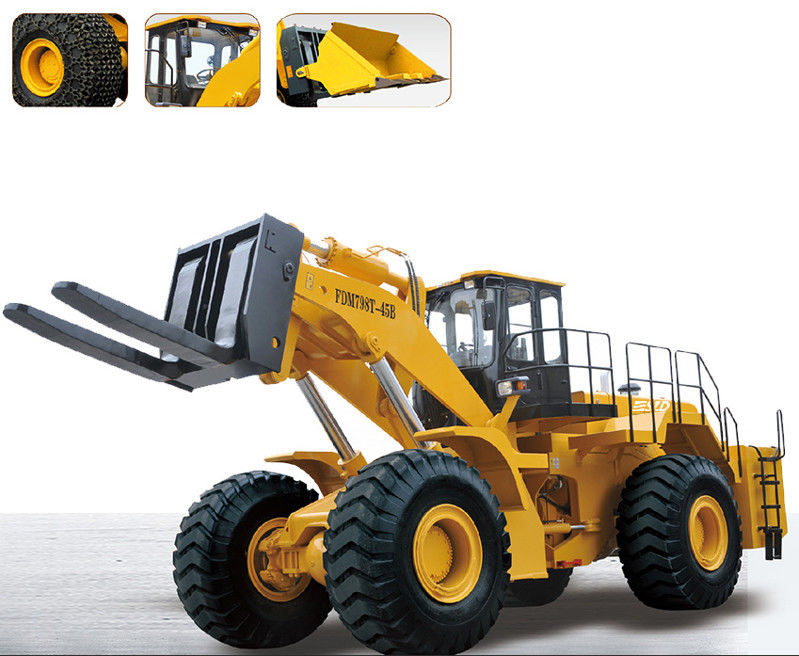

FDM798T-45 fork loading truck
Optional equipment
![]()
| Item | Specification | Unit | |
| Engine power | 199 | kw/h | |
| Overall dimension(L×W×H) | 10100×3260×3870 | mm | |
| Max. lifting height | 2530 | mm | |
| Operating weight | 40000 | kg | |
| Load center distance | 800 | mm | |
| Fork size | L×W×H | 1600×300×130 | mm |
| Distance of fork | 250-1330 | mm | |
| Rated loading capacity | 42000 | kg | |
| Turning angle | 30°/ 30° | ||
| Max. Grade Ability | ≥21 | ° | |
| Unloading angle | 33 | ° | |
| Wheel base | 4500 | mm | |
| Wheel Tread | 2450 | mm | |
| Min. Ground clearance | 500 | mm | |
| Maximum traction force | 236 | KN | |
| Fuel tank capacity | 260 | L | |
| Hydraulic fuel tank capacity | 380 | L | |
| Specification of tyre | 4*29.5-25 - 38PR | ||
![]()
