Rated Load: | 36000kgs | Max. Lifting Height: | 2530mm |
---|---|---|---|
Operating Weight: | 34500kgs | Load Center: | 800mm |
Overall Dimension(L×W×H): | 10090×3120×3780mm | Engine: | Weichai |
Engine Power: | 199kw | Wheelbase: | 4500 Mm |
Color: | Yellow | New Or Used: | New |
Highlight: | 36t Front end Forklift Loader,36t Forklift Loader,36t forklift front loader |

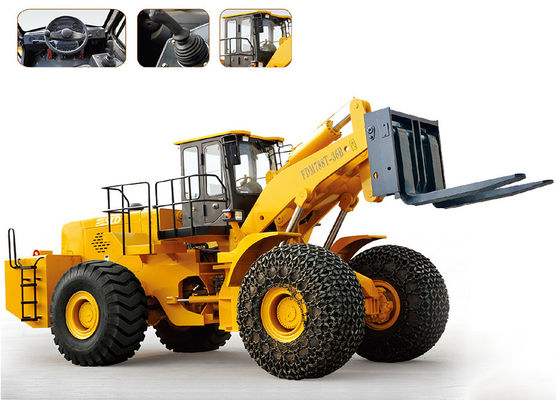

Weichai Engine Front Loader Forklift Machine 32 Ton 36 Ton 29.5-25 Tire Type
FDM788T-36 fork loading truck
The specifications of 36ton diesel fuel forklift loader for sale
1). Competitive price and customizing :we manufacturer’s products are directly exported to buyers without the trading company in China. we can design and produce the unique loaders and accessories just for specail need. Such as changing the cabin and appearance, the bucket volume,the fork length,and the Max. dump height and so on.
2). Exclusive Patent:6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety.
3). Details in Structure: Besides the special design of structure, full steel plate thickening, the thickness of lift arm and hinge plate reaches 60mm. Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful. The exclusive dust-proof layer and sealed articulated points make the loader more durable.
4). Novel appearance and humanized design: cabin with broad view. Single(double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
5). Hydraulic systems: To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
Item | Specification | Unit | |
Engine power | 199 | kw/h | |
Overall dimension(L×W×H) | 10090×3120×3780 | mm | |
Max. lifting height | 2530 | mm | |
Operating weight | 34500 | kg | |
Load center distance | 800 | mm | |
Maximum load | 38000(≤200mm) | kg | |
Bucket capacity | |||
Fork size | L×W×H | 1600X300X130 | mm |
Distance of fork | 250-1330 | mm | |
Rated loading capacity | 32000 | kg | |
Turning angle | 30 | ° | |
Unloading angle | 33 | ° | |
Max. Grade Ability | ≥21 | ° | |
Wheel base | 4500±15 | mm | |
Wheel Tread | 2460 | mm | |
Min. Ground clearance | 490 | mm | |
Fuel tank capacity | 240 | L | |
Hydraulic fuel tank capacity | 350 | L | |
Specification of tyre | 4*29.5-25-44PR |
