Product Details:
Payment & Shipping Terms:
|
| Power Type: | Electric | Controller: | CURTIS |
|---|---|---|---|
| Battery: | 48V/440Ah | Rated Load: | 1500kgs |
| Load Center: | 500mm | Lift Height: | 3000mm |
| Overall Size: | 2150x1090x1995mm | Wheelbase: | 1380mm |
| Fork Size: | 920x120x35mm | Turning Radius: | 1950mm |
| Highlight: | FB15 lithium ion battery forklift,FB15 1.5T Compact Electric Forklift,FB15 forklift 1.5 ton |
||

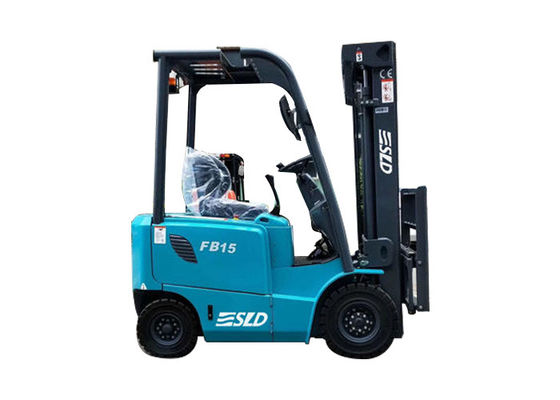

1.5 TONS AC Electric Forklift Truck With Lithium Battery
- Forklift With Powerful Ac driving motor applied to reduce maintenance cost and increase the overall performance.
1.5 ton electric forklift advantages:
100% enlarged accelerator panel and 40% enlarged brake pedal improve driver's foot operating comfort;
Rear handle with horn button ensure safe and comfortable operation whilereverse driving;
Ratchet hand brake has different brake force on slope and ground, reducing driver'sfatigue.
- LED lamp
- Famous brand battery and charger
- Import controller,like Curtis or Zapi AC controller
- Reasonable structure,better heat dissipation for controller
- Battery water automatic replenish for optional
- Powerful AC driving motor applied to reduce maintenance cost and increase the overall performance.
| General | |||||
| Model | FB10 | FB15 | FB18 | ||
| Power Type | Electric | Electric | Electric | ||
| Load Capacity | kg | 1000 | 1500 | 1800 | |
| Load centre | mm | 500 | 500 | 500 | |
| Tyre | |||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Rear Tyre | 5.00-8-10PR | 5.00-8-10PR | 5.00-8-10PR | ||
| Overall Dimension | |||||
| Lift Height | mm | 3000 | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 920×120×35 | 920×120×35 | 920×120×35 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 | 6/12 |
| Mast Lowered Height | mm | 1995 | 1995 | 1995 | |
| Mast Extended Height(with backrest) | mm | 3940 | 3940 | 3940 | |
| Length to face of fork(Without fork) | mm | 2185 | 2185 | 2185 | |
| Overall Width | mm | 1090 | 1090 | 1090 | |
| Overhead Guard Height | mm | 2195 | 2195 | 2195 | |
