| Rated Load: | 1800kgs | Lift Height: | 3000mm |
|---|---|---|---|
| Power Type: | Electric | Battery: | 48V/440Ah |
| Controller: | CURTIS | Load Center: | 500mm |
| Overall Size: | 2150x1090x1995mm | Wheelbase: | 1380mm |
| Fork Size: | 920x120x35mm | Turning Radius: | 1950mm |
| High Light: | 1800kgs Electric Forklift Truck,Fork Length 1070mm Electric Forklift Truck,1800kgs Small Electric Forklift |
||

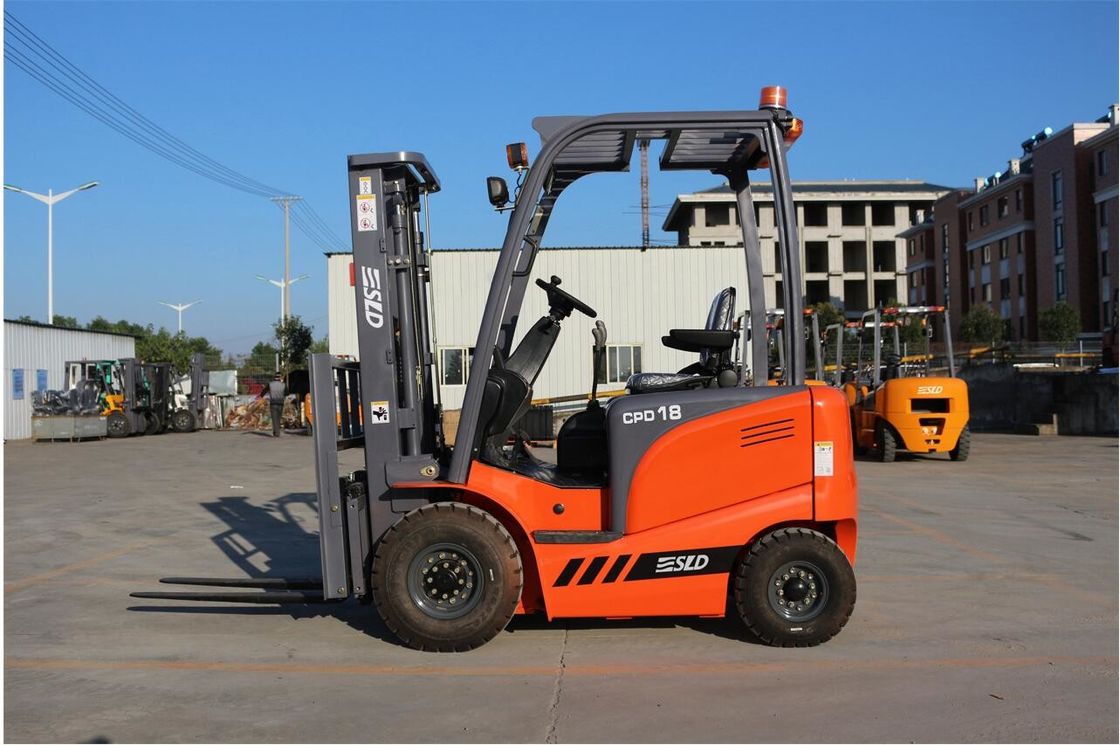

1800kgs capacity small truck with fork length 1070mm electric forklift
1. Power system : Equipped with original imported American Curtis electric control system. High voltage and large capacity battery can supply the forklift with the strong power. DC or AC motors are optional according to customers’ requirements.
2. Security system: Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3. Lighting system: Equipped with full set of LED lamps, which are brighter and energy saving.
| General | |||||
| Model | FB10 | FB15 | FB18 | ||
| Power Type | Electric | Electric | Electric | ||
| Load Capacity | kg | 1000 | 1500 | 1800 | |
| Load centre | mm | 500 | 500 | 500 | |
| Tyre | |||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Rear Tyre | 5.00-8-10PR | 5.00-8-10PR | 5.00-8-10PR | ||
| Overall Dimension | |||||
| Lift Height | mm | 3000 | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 920×120×35 | 920×120×35 | 920×120×35 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 | 6/12 |
| Mast Lowered Height | mm | 1995 | 1995 | 1995 | |
| Mast Extended Height(with backrest) | mm | 3940 | 3940 | 3940 | |
| Length to face of fork(Without fork) | mm | 2185 | 2185 | 2185 | |
| Overall Width | mm | 1090 | 1090 | 1090 | |
| Overhead Guard Height | mm | 2195 | 2195 | 2195 | |
