Product Details:
Payment & Shipping Terms:
|
Power Type: | Electric | Rated Load: | 12000kgs |
---|---|---|---|
Overall Size: | 4480x2270x2810mm | Battery: | 96V/1250Ah |
Controller: | CURTIS | Load Center: | 500mm |
Lift Height: | 3000mm | Wheelbase: | 2850mm |
Fork Size: | 1520x180x70mm | Turning Radius: | 3850mm |
Highlight: | FB120 12t Electric Forklift Truck,FB120 Electric Forklift Truck,FB120 electric lift truck |

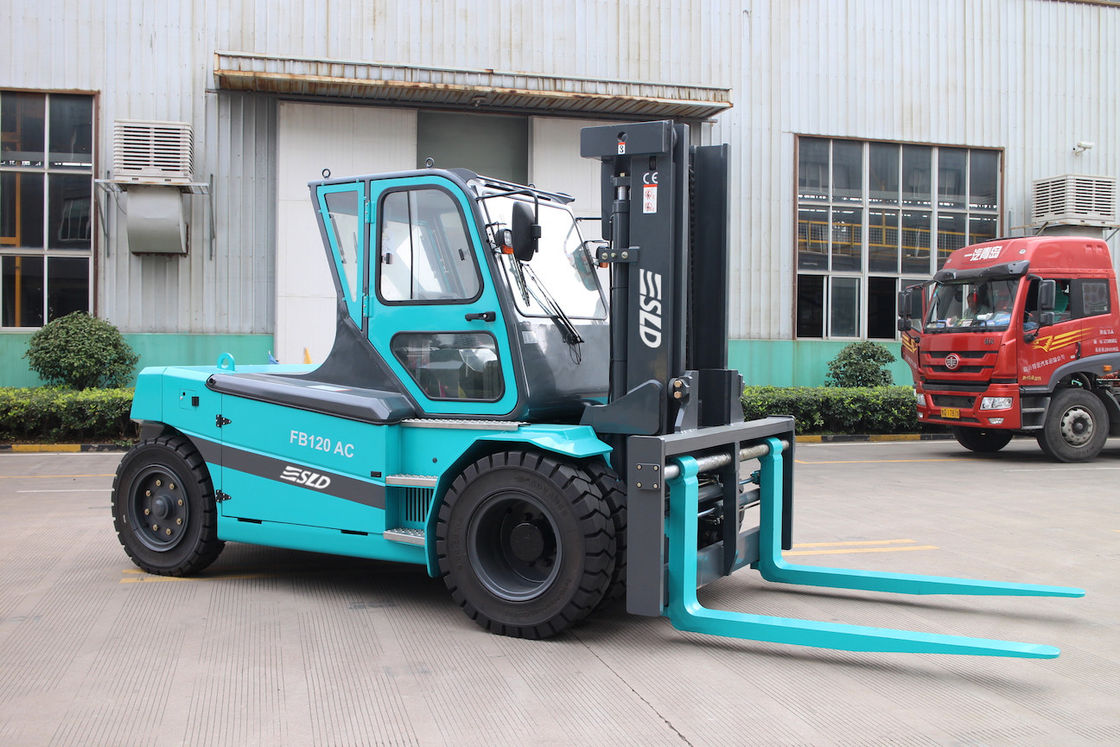

Big AC Electric Forklift Truck 12 Ton In China With CURTIS Controller
Advantages of 12 ton electric forklift, counter balanced electric forklift:
AC Variable Frequency Drive Motor Lowers The Maintenance Cost
Improves Sfficency And Reduce The Energy Consumption At The Same time
By Advanced America CURTIS Inverter Controller
General | |||||
Model | FB80 | FB100 | FB120 | ||
Power Type | Electric | Electric | Electric | ||
Load Capacity | kg | 8000 | 10000 | 10000 | |
Load centre | mm | 600 | 600 | 600 | |
Tyre | |||||
Tyre | Pneumatic Tyre | Pneumatic Tyre | Solid Tyre | ||
Front Tyre | 9.00-16-14PR | 9.00-20-14PR | 9.00-20 | ||
Rear Tyre | 8.25-15-14PR | 8.25-20-14PR | 8.25-20 | ||
Overall Dimension | |||||
Lift Height | mm | 3000 | 3000 | 3000 | |
Fork Size | L×W×T | mm | 1220×150×70 | 1220×175×85 | 1220×175×85 |
Mast Tilt Angle | F/R | . | 6/10 | 6/10 | 6/10 |
Mast Lowered Height | mm | 2600 | 2830 | 2830 | |
Mast Extended Height(with backrest) | mm | 4400 | 4260 | 4260 | |
Length to face of fork(Without fork) | mm | 3770 | 4412 | 4412 | |
Overall Width | mm | 2200 | 2250 | 2250 | |
Overhead Guard Height | mm | 2500 | 2640 |
2640 |
Standard devices of 12 ton electric forklift
Micro-computer controlling of AC driving type
Wide-view mast
Power steering
Neutral-safety switch
Regenerative braking
Big rubber pad
Optional parts of 12 tons country balanced battery forklift
Tires
solid tires environmental protection solid tires
Mast
2 stage free lift mast(VFM) 3 stage free lift mast(VFHM)
Attachments
side shifter, flat clamp, paper roll clamp, rotator, multi-purpose clamp, drum clamp,
carpet boom, boom, lifting hook, widen carriage, fork extension
AC lifting control
