Product Details:
Payment & Shipping Terms:
|
| Power Type: | Electric | Rated Load: | 12000kgs |
|---|---|---|---|
| Overall Size: | 4480x2270x2810mm | Battery: | 96V/1250Ah |
| Controller: | CURTIS | Load Center: | 500mm |
| Lift Height: | 3000mm | Wheelbase: | 2850mm |
| Fork Size: | 1520x180x70mm | Turning Radius: | 3850mm |
| Highlight: | FB120 Forklift,8T Forklift,FB120 8 Tonne Forklift |
||

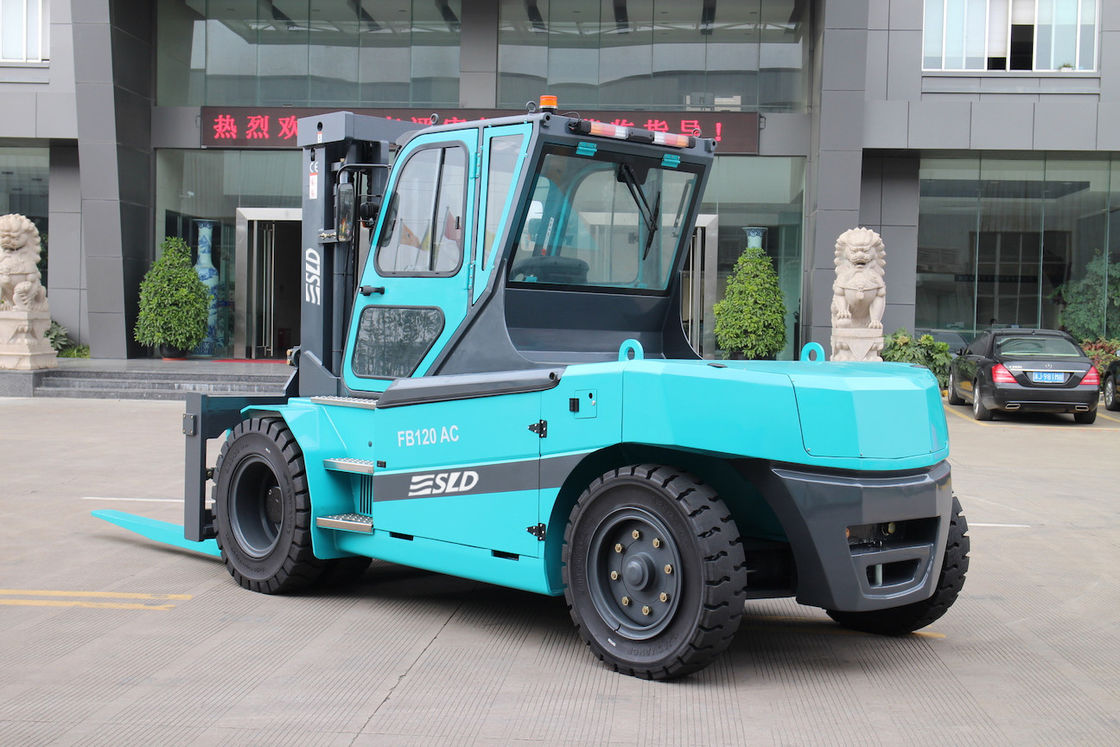

Huge AC Electric Forklift FB120 With Cabin 8 Tons 10 Tons 12 Tons With Schabmueller Motor
| General | |||||
| Model | FB80 | FB100 | FB120 | ||
| Power Type | Electric | Electric | Electric | ||
| Load Capacity | kg | 8000 | 10000 | 10000 | |
| Load centre | mm | 600 | 600 | 600 | |
| Tyre | |||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | Solid Tyre | ||
| Front Tyre | 9.00-16-14PR | 9.00-20-14PR | 9.00-20 | ||
| Rear Tyre | 8.25-15-14PR | 8.25-20-14PR | 8.25-20 | ||
| Overall Dimension | |||||
| Lift Height | mm | 3000 | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1220×150×70 | 1220×175×85 | 1220×175×85 |
| Mast Tilt Angle | F/R | . | 6/10 | 6/10 | 6/10 |
| Mast Lowered Height | mm | 2600 | 2830 | 2830 | |
| Mast Extended Height(with backrest) | mm | 4400 | 4260 | 4260 | |
| Length to face of fork(Without fork) | mm | 3770 | 4412 | 4412 | |
| Overall Width | mm | 2200 | 2250 | 2250 | |
| Overhead Guard Height | mm | 2500 | 2640 |
2640 |
|
12.0 Ton Biggest Electric Forklift Truck advantages:
- At present,it's the biggest electric forklift you can find in China.
- convenient battery replacement;
- Disc wet brake, reliability and free maintenance;
- Powerful security, self-braking on ramp;
- Electromagnetic compatibility reaches international standards.
- It can equip with cabin.
- Curtis or Zapi AC controller
- Famous brand battery and charger
- Reasonable structure,better heat dissipation for controller
- Battery water automatic replenish for optional
- Powerful AC driving motor applied to reduce maintenance cost and increase the overall performance.
Newly designed wide-view mast with special chains enlarges operator`s view effectively;
Better loading capacity at high position;
With optimized hydraulic system, the truck is more energy-efficient and has lower energy consumption.
- Famous brand battery and charger
- Reasonable structure,better heat dissipation for controller
- Battery water automatic replenish for optional
- Our forklift can equip with cabin,to be more comfortable.
