Product Details:
Payment & Shipping Terms:
|
Power Type: | Electric | Rated Load: | 6000kgs |
---|---|---|---|
Overall Size: | 3030x1600x2330mm | Battery: | 80V/800Ah |
Controller: | CURTIS | Load Center: | 500mm |
Lift Height: | 3000mm | Wheelbase: | 2000mm |
Fork Size: | 1070x150x50mm | Turning Radius: | 2755mm |
Highlight: | FB360 12k Forklifts,4 Wheel Electric Forklift Truck,12k electric reach truck forklift |

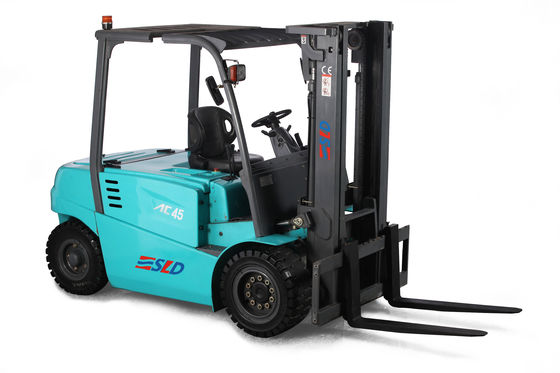

4-Wheel Electric Forklift 4.5 Tons 5 Tons 6ton High Quality With Zapi Controller
4.5 Ton forklift with side out battery advantages:
Automatic slowing down function when steering enhance truck safety.
Hydraulic load sensing steering technology ,flexible and reliable.
AC system
IP54 protection degree of AC motor.
Hydraulic emergency brake device enhance truck travelling safety.
Forklift with side out battery(two way,From top and from side),it's more easy for repair and maintain.
Curtis or Zapi AC controller
Famous brand battery and charger
Reasonable structure,better heat dissipation for controller
Battery water automatic replenish for optional
Powerful AC driving motor applied to reduce maintenance cost and increase the overall performance.
6.0 Ton Electric Forklift advantages:
- A kind of Big Ton Forklift, can lift heavy things.
- All nuts use zinc clear.
- Use Korean KCC painting to warranty the appearance.
- Wide view mast,all forklift can equip with Attachment.
The truck belongs to large truck category and it is suitable for goods handling and stacking in mechanical manufacturing factories ,such as large die mode, engine, reducer, ships, wind power, large industrial machinery, automobile, aviation and so on, wound working factory, paper mill, glass-works, airport logistics center can also be applied.
General | |||||
Model | FB45 | FB50 | FB60 | ||
Power Type | Electric | Electric | Electric | ||
Load Capacity | kg | 4500 | 5000 | 6000 | |
Load centre | mm | 500 | 500 | 500 | |
Tyre | |||||
Tyre | Pneumatic Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
Front Tyre | 28×12.5-15-24PR | 28×12.5-15-24PR | 28×12.5-15-24PR | ||
Rear Tyre | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | ||
Overall Dimension | |||||
Lift Height | mm | 3000 | 3000 | 3000 | |
Fork Size | L×W×T | mm | 1070×150×50 | 1070×150×50 | 1070×150×50 |
Mast Tilt Angle | F/R | . | 6/9 | 6/9 | 6/9 |
Mast Lowered Height | mm | 2330 | 2330 | 2330 | |
Mast Extended Height(with backrest) | mm | 4165 | 4165 | 4165 | |
Length to face of fork(Without fork) | mm | 3100 | 3100 | 3100 | |
Overall Width | mm | 1600 | 1600 | 1600 | |
Overhead Guard Height | mm | 2255 | 2255 | 2255 |
