Precise Fork Positioning Counterbalance Forklift with Fork Positioner and 0-20 Km/h Speed

Precise Fork Positioning Counterbalance Forklift with Fork Positioner and 0-20 Km/h Speed
Precise Fork Positioning Counterbalance Forklift with Fork Positioner and 0-20 Km/h Speed

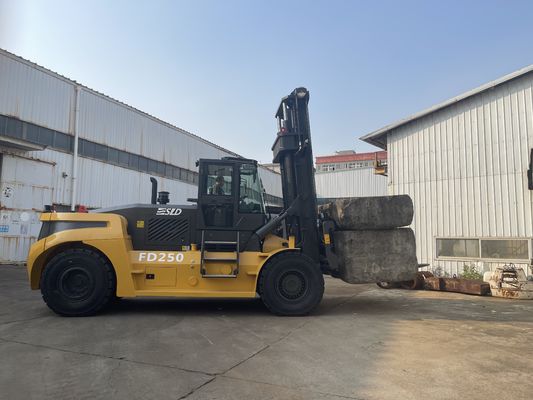

Large Image :  Precise Fork Positioning Counterbalance Forklift with Fork Positioner and 0-20 Km/h Speed

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Engine: Yuchai Or CUMMINS Fork Length: 1800mm
Steering Type: Front Or Rear Wheel Options: Side Shift, Fork Positioner
OEM: Customized Load Center: 600mm
Attachments: Fork, Roll Prong, Tire Prong Warranty: 1-2 Years
Highlight:

counterbalance forklift with fork positioner

,

heavy lift forklift 0-20 km/h

,

precise fork positioning forklift

Precise Fork Positioning Counterbalance Forklift with Fork Positioner and 0-20 Km/h Speed
The PFP-CB-20 combines counterbalance stability with a built-in fork positioner and 0-20 km/h precision speed control, cutting pallet cycle times by 28%.
Product Specifications
Model PFP-CB-20 | SKU: PFP-CB-20-5000D
Availability In Stock - Ships 3-5 Days
Warranty 24 Months Full Coverage
Load Rating 2,500 / 3,500 / 5,000 kg (selectable)
Speed 0-20 km/h stepless drive
Technical Specifications
Feature Value
Rated Load 2.5 t | 3.5 t | 5 t
Max Lift 3,000 mm (4.5 m triple-stage optional)
Fork Positioner Range 200-1,200 mm (hydraulic sideshift ±100 mm)
Travel Speed 0-20 km/h (no gears, foot pedal)
Gradeability 20% loaded
Power 48 V 600 Ah Li-ion (diesel & LPG options)
Turning Radius 2,150 mm (3.5 t model)
Weight 4,900 kg (3.5 t model)
Ideal Applications
High-speed cross-docking
Food & pharma (zero emissions Li-ion)
Double-deep racking
Container devanning
Multi-pallet handling
Core Advantages
Precise Fork Positioning
  • Hydraulic fork spread 200-1,200 mm
  • Sideshift ±100 mm integrated (no lost load center)
  • ±2 mm repeat accuracy - perfect for double-deep racking
Variable Speed 0-20 km/h
  • AC drive motor 15 kW, regenerative braking
  • Foot pedal provides stepless 0-20 km/h control
  • Two operating modes: ECO ≤ 12 km/h / BOOST ≤ 20 km/h
Counterbalance Design
  • No outriggers - clears 3 m aisles
  • 1,200 mm load center stability
  • Rear-weight cast iron 1,800 kg
Li-ion Power System
  • 48 V 600 Ah, opportunity fast-charge 80% in 1 hour
  • -20°C cold-store package available
  • Zero maintenance batteries, 10-year life design
Safety & Comfort Features
  • 360° LED stripe lights for enhanced visibility
  • Orange seat-belt interlock system
  • Mast camera + 10-inch dashboard display
  • Hill-hold + anti-roll-back protection
  • PANORAMIC roof mirror
  • Cabin HVAC option, 74 dB(A) noise level
Dimensions (3.5 t model)
Measurement mm
Length w/o forks 2,580
Overall width 1,220
Mast lowered 2,050
Overhead guard 2,280
Forks 1,070 × 100 × 40 (ISO 2328)
Optional Upgrades
  • Triple-stage 4.5 m full-free lift
  • Rotating fork clamp (360°)
  • Weigh-scale forks ±0.1% accuracy
  • Cold-store specification to -30°C
  • Blue-spot & red-zone safety lights
  • RFID access & fleet telematics
Shipping & Warranty
  • FOB any port worldwide in 40 HC container
  • 24-month or 2,000 hour warranty
  • Free spares kit: contactor set, fuses, LED bulb
  • English, Spanish, French manuals in PDF format
