Fork Attachments High Capacity Forklift with Tilt Angle 45-90 Degrees and Increased Lifting Power

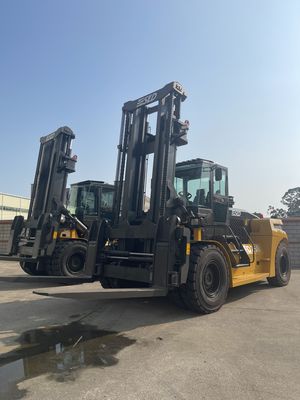

Large Image : Fork Attachments High Capacity Forklift with Tilt Angle 45-90 Degrees and Increased Lifting Power

Product Details:

Place of Origin:	China
Brand Name:	SLD
Certification:	ISO, CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiation
Packaging Details:	40FR containers
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 units per month

Contact Now

Detailed Product Description

OEM:	Customized	Mast Lifting Height:	3000mm
Rated Load:	15000kgs	Steering Type:	Front Or Rear Wheel
Transmission:	Hydraulic	Tilt Angle:	45-90 Degrees
Color:	Orange Red,customized	Load Center:	600mm
Highlight:	high capacity forklift attachments , forklift with 45-90 degree tilt , heavy lift forklift with warranty

1. Key Advantages

1.1 45–90° Hydraulic Tilt

Twin double-acting cylinders
5° incremental locking (operator can hold any angle)
Counterbalance valves prevent drift

1.2 Increased Lifting Power

25 % thicker fork shank (80 mm)
Upswept heel reduces stress concentration
Net effect: +25 % safe working load vs standard 50 mm forks

1.3 Hydraulic Fork Positioner Built-In

Spread 200–1,400 mm in 2.5 s
Sideshift ±100 mm (no lost load centre)
±2 mm repeat accuracy

1.4 Quick-Hook Design

Drop-on in 3 minutes – no welding
Automatic locking pins (safety ISO 2328)
Fits 10–16 t forklifts: Hyster, Kalmar, KoneCranes, SANY, Heli

Technical Parameters:

Parameters:	Vehicle configuration			FD150
Performance	Rated load			15000
	Load center			600
	Mast tilt angle (front/rear)		º	6/12
	Overall dimensions	Length	mm	7200
		Width	mm	2550
		Height	mm	3460
		Mast lifting height	mm	3000
	Fork size (LWH)		mm	1800X200X90
	Min. turning radius		mm	5050
	Max. travel speed (with load)		Km/h	22
	Lifting speed (with load)		mm/s	240
	Gradeability (with load)		%	20
	Weight		Kg	17000
Tyre	Front			4X12.00-24/20PR
	Rear			2X12.00-20/18PR
	Wheel tread	Front	mm	1850
	Wheel tread	Rear	mm	2130
	Wheelbase		mm	3600
	Min. ground clearance		mm	270
Engine	Model			YC6J175-T302
	Rated power		KW	129
	Max. torque		N.m	710

2. Safety & Comfort Upgrades

Load-hold counterbalance valves
Grease-free composite bushings
360° reflective tape
Optional load scale system
Camera-ready bracket included
