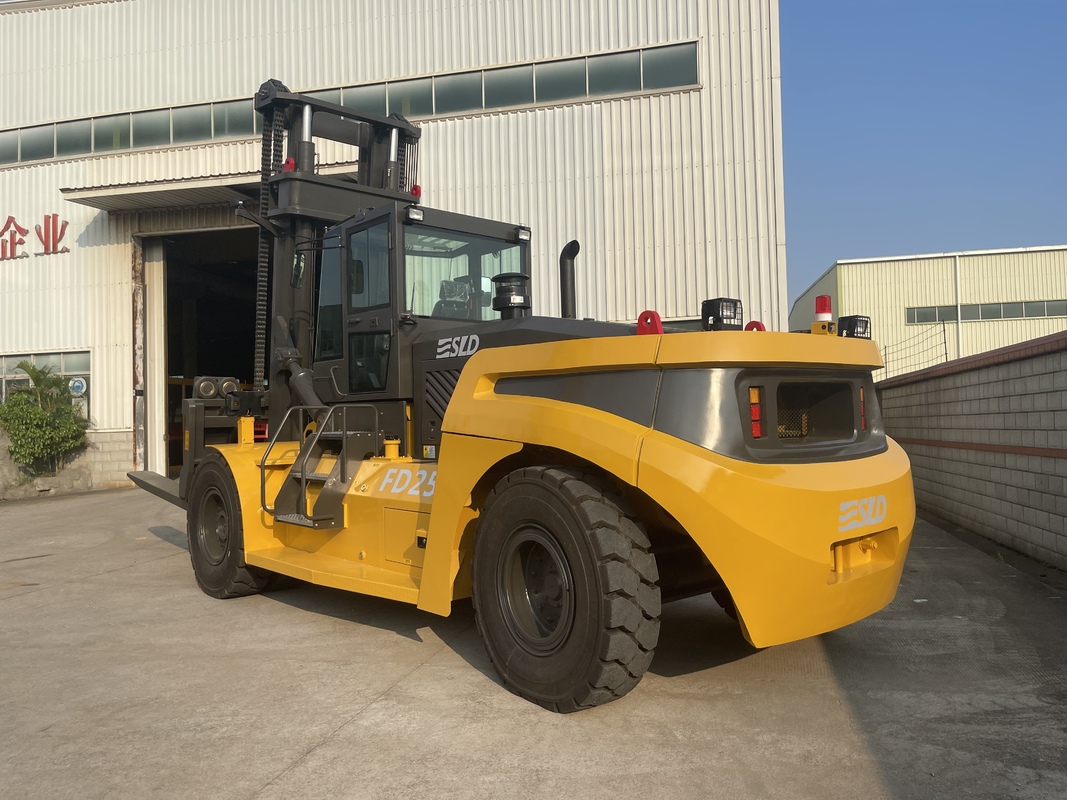

15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization

15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization
15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization

Large Image :  15000kgs Rated Load Heavy Load Forklift for Heavy Duty and Customization

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Engine: Yuchai Or CUMMINS Speed: 0-20 Km/h
Tilt Angle: 45-90 Degrees Options: Side Shift, Fork Positioner
Transmission: Hydraulic Warranty: 1-2 Years
Mast Lifting Height: 3000mm OEM: Customized
Highlight:

15000kgs heavy duty forklift

,

heavy lift forklift with customization

,

heavy duty forklift for industrial use

15000kgs Rated Load Heavy Duty Forklift for Custom Applications
Ideal Applications for Custom-Speed 15-Ton Forklifts
  • Steel mills - low-speed, high-torque coil handling
  • Port terminals - 28 km/h operation between quay and stack
  • Precast yards - 20 km/h performance on uneven concrete
  • Mining support - 12 km/h capability with 25% grade
  • Logistics fleets - mixed Eco/Hi-Speed configurations with unified parts
Technical Specifications
Parameter Unit FD150
Rated Load kg 15000
Load Center mm 600
Mast Tilt Angle (Front/Rear) ° 6/12
Length mm 7200
Width mm 2550
Height mm 3460
Mast Lifting Height mm 3000
Fork Size (L×W×H) mm 1800×200×90
Min. Turning Radius mm 5050
Max. Travel Speed (Loaded) km/h 22
Lifting Speed (Loaded) mm/s 240
Gradeability (Loaded) % 20
Weight kg 17000
Front Tire - 4×12.00-24/20PR
Rear Tire - 2×12.00-20/18PR
Front Wheel Tread mm 1850
Rear Wheel Tread mm 2130
Wheelbase mm 3600
Min. Ground Clearance mm 270
Engine Model - YC6J175-T302
Rated Power kW 129
Max. Torque N·m 710
Core Advantages
15,000 kg Heavy-Load Capacity
  • 80 mm heel with Grade-100 forks
  • Overload valve with load-moment cut-off system
  • Duplex mast 3,000 mm (triplex 4,500 mm optional)
Customizable Speed Modes
  • Factory-programmed ECM: choose 0-12, 0-20 or 0-28 km/h
  • Same hydrostatic transmission with different pump displacement
  • ECO mode delivers 18% fuel savings compared to 28 km/h mapping
Multi-Power Platform
  • Diesel: Cummins QSB 6.7 Stage V, 200 L tank for 12-hour operation
  • LPG: Dual-fuel PSI 2.4L, 70 L bottle, indoor zero-soot emission
  • Li-ion: 80 V 920 Ah, 2-hour fast-charge, -30°C operation package
Heavy-Duty Frame Construction
  • 20,500 kg service weight eliminates need for extra counterweight
  • 25% gradeability when fully loaded
  • Solid pneumatic tires 12.00-24 PR20 (super-elastic optional)
Safety & Operator Comfort
  • ROPS/FOPS certified cabin with 74 dB(A) noise level
  • Suspension seat with 3-point safety belt
  • Integrated rear-view camera with 10-inch dashboard display
  • 360° LED lighting package for enhanced visibility
  • Hill-hold function and neutral-start safety system
