Product Details:
Payment & Shipping Terms:
|
| Attachments: | Fork, Roll Prong, Tire Prong | Tilt Angle: | 45-90 Degrees |
|---|---|---|---|
| Transmission: | Hydraulic | Warranty: | 1-2 Years |
| Fork Length: | 1800mm | Color: | Orange Red,customized |
| OEM: | Customized | Mast Lifting Height: | 3000mm |
| Highlight: | Heavy Lift Mast Lifting Height Forklift,Mast Lifting Heavy Lift Forklift,Heavy Duty Forklift |
||

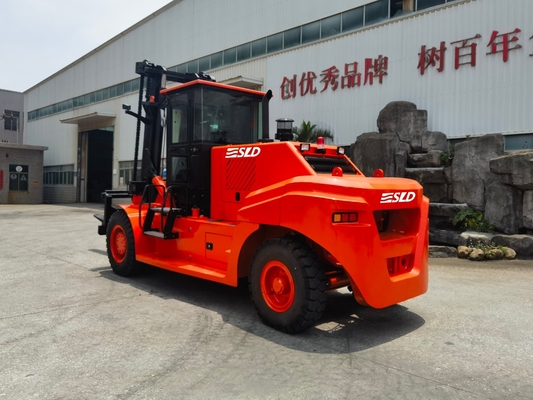

| Parameters: | Vehicle configuration | FD150 | ||
| Performance | Rated load | 15000 | ||
| Load center | 600 | |||
| Mast tilt angle (front/rear) | º | 6/12 | ||
| Overall dimensions | Length | mm | 7200 | |
| Width | mm | 2550 | ||
| Height | mm | 3460 | ||
| Mast lifting height | mm | 3000 | ||
| Fork size (L*W*H) | mm | 1800X200X90 | ||
| Min. turning radius | mm | 5050 | ||
| Max. travel speed (with load) | Km/h | 22 | ||
| Lifting speed (with load) | mm/s | 240 | ||
| Gradeability (with load) | % | 20 | ||
| Weight | Kg | 17000 | ||
| Tyre | Front | 4X12.00-24/20PR | ||
| Rear | 2X12.00-20/18PR | |||
| Wheel tread | Front | mm | 1850 | |
| Rear | mm | 2130 | ||
| Wheelbase | mm | 3600 | ||
| Min. ground clearance | mm | 270 | ||
| Engine | Model | YC6J175-T302 | ||
| Rated power | KW | 129 | ||
| Max. torque | N.m | 710 | ||
