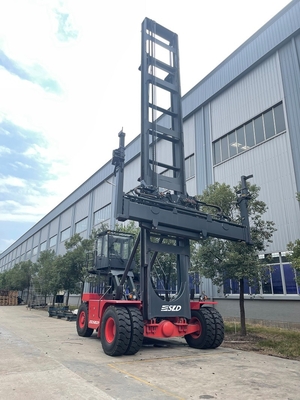

Kessler D102PL341 Drive Axle Empty Container Handler For Unloading 71400 Kgs Service Weight

Kessler D102PL341 Drive Axle Empty Container Handler For Unloading 71400 Kgs Service Weight
Kessler D102PL341 Drive Axle Empty Container Handler For Unloading 71400 Kgs Service Weight

Large Image :  Kessler D102PL341 Drive Axle Empty Container Handler For Unloading 71400 Kgs Service Weight

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable price USD 0.08-0.15/Piece
Packaging Details: Nude
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month
Detailed Product Description
Service Weight: 71400 Kgs (unload) Warranty: 1 Year
Load Capacity: 45000kgs Engine: CUMMINS QSM11-330
Color: Red Transmission: ZF 5WG261 AUTO
Performance: Quality Product Drive Axle: Kessler D102PL341
Highlight:

Kessler Empty Container Handler

,

Unloading Empty Container Handler

,

71400 Kgs Empty Container Handler

Product Introduction

The Kessler D102PL341 Drive Axle Empty Container Handler is specifically designed to efficiently unload containers with a 71,400 Kgs service weight. This high - performance machine is perfect for ports, terminals, and logistics centers where reliability and precision are essential.
With its robust Kessler D102PL341 drive axle and powerful engine, it delivers exceptional traction and stability, ensuring smooth and safe container - handling operations. Its advanced features and durable construction make it an ideal choice for demanding industrial environments.

Key Features





  • Kessler D102PL341 Drive Axle: Provides excellent traction and stability during container - handling operations, even on uneven surfaces. This high - quality drive axle is designed to handle heavy loads and deliver reliable performance.
  • Powerful Engine: Equipped with a high - torque engine that delivers strong power output and efficient performance, ensuring smooth operation during intense unloading tasks.
  • Hydraulic Spreader System: Accurately attaches to containers, ensuring secure and reliable handling. It adapts to different container sizes quickly and efficiently, reducing the risk of damage.
  • Excellent Maneuverability: Agile design and responsive steering system allow for easy movement in tight spaces within busy terminals and warehouses.
  • Ergonomic Operator Cabin: The comfortable cabin offers excellent visibility of the work area and easy - to - reach controls, reducing operator fatigue during long shifts.
  • Advanced Safety Features: Multiple safety sensors and alarms monitor the machine's status and surroundings. Emergency stop functions and a stable counterweight design provide extra protection for the operator.

Technical Parameters:

CHARACTERISTICS
Model ECH80/7
Load capacity 8 tons
Maximum stacking layer 7
Lifting speed (Laden/Unladen) m/s 0.55/0.60
Lowering speed (Laden/Unladen) m/s 0.60/0.60
Travel speed (Laden/Unladen) Km/h 25/27
Climbing ability % 30
Tractive force KN 107.5
DIMENSIONS
Wheelbase y(mm) 4020
Height of mast,lowered h1 (mm) 11091
Tilt angle (Forward/Backward) Degree 3/4
Height of mast,extended h4 (mm) 19204
Height of cabin h6 (mm) 4326
Height, operator's seat h7 (mm) 3206
Twistlock height lowered h13 (mm) 2290
Maximum twistlock height h3 (mm) 18600
Overall length l1 (mm) 6450
Length to spreader face l2 (mm) 6277
Overall width b1/b2 (mm) 3627/2398
Width of spreader 20'/40' b3 (mm) 6050/12150
Turning radius Wa (mm) 5700
Wheelspan,front wheels b10 (mm) 2880
Wheelspan,rear wheels b11 (mm) 2068
WEIGHTS
Service weight kg 33800
Axle load,front/rear kg 29050/10750
Axle without load,front/rear b13 (mm) 20100/13700
ENGINE
Engine manufacturer/type Cummins/QSB6.7
Cylinder number/Displacement 6/6700cm3
Rated power 129KW@2200rpm
Maximun torque 800NM@1500rpm
Rated current of alternator 70A
Battery 24V(2x12/110)
TRANSMISSION
Manufacturer/type ZF/3WG211AUTO
Clutch type Torque converter
Transmission Auto-shift/interlock
Gear number 3F/3R
BRAKESYSTEM
Service brake Wet-disc
Parking brake Brake enabled when power off
DRIVE AXLE
Manufacturer Kessler/Germany
Type D81PL478-NLB
STEER AXLE
Manufacturer Self-made
Type Z16A1
Steering type-Single cylinder Double action cylinder
TYRES
Drive wheels 14.00-24 24PR
Steering wheels 14.00-24 24PR
Type Pneumatic
Pressure 10 bar
Quantity, front/rear 4/2







Applications

  • Port Operations: Efficiently unload containers from ships and transport them within the port area.
  • Container Terminals: Manage empty containers with precision and speed, optimizing storage space and workflow.
  • Logistics Centers: Handle empty containers within logistics facilities, ensuring smooth material flow.
  • Industrial Facilities: Move empty containers within manufacturing plants or warehouses for storage or transportation.
