Versatile Heavy Lift Forklift for Heavy Loads Rated Load 15000kgs Tilt Angle 45-90 Degrees Mast Lifting Height 3000mm

Customer Reviews
Ordered SLD 12 tons and 16 tons forklifts , good quality, perfect service, looking forward to more cooperation.

—— Mohammad Asharf

SLD 30 tons forklift, It was my good choice, will buy more forklifts.

—— Ricky So

I'm Online Chat Now

Versatile Heavy Lift Forklift for Heavy Loads Rated Load 15000kgs Tilt Angle 45-90 Degrees Mast Lifting Height 3000mm

Versatile Heavy Lift Forklift for Heavy Loads Rated Load 15000kgs Tilt Angle 45-90 Degrees Mast Lifting Height 3000mm
Versatile Heavy Lift Forklift for Heavy Loads Rated Load 15000kgs Tilt Angle 45-90 Degrees Mast Lifting Height 3000mm

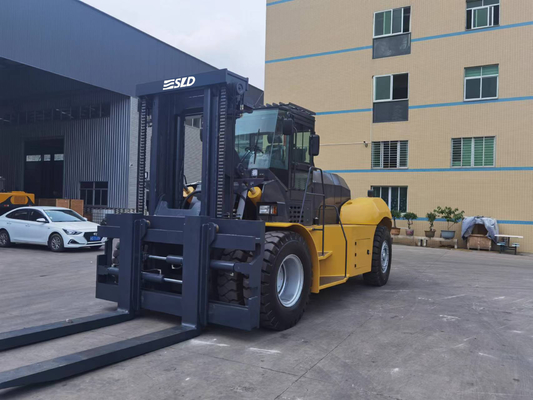

Large Image :  Versatile Heavy Lift Forklift for Heavy Loads Rated Load 15000kgs Tilt Angle 45-90 Degrees Mast Lifting Height 3000mm

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: 40FR containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Detailed Product Description
Warranty: 1-2 Years Engine: Yuchai Or CUMMINS
Speed: 0-20 Km/h Rated Load: 15000kgs
Attachments: Fork, Roll Prong, Tire Prong Tilt Angle: 45-90 Degrees
Steering Type: Front Or Rear Wheel Options: Side Shift, Fork Positioner
Highlight:

90 Degrees Heavy Lift Forklift

,

3000mm Heavy Lift Forklift

,

15000kgs Load Heavy Lift Forklift

Product Introduction

Our Versatile Heavy - Lift Forklift is designed to handle heavy - duty tasks with ease. With a rated load of 15,000kgs, a tilt angle of 45 - 90 degrees, and a mast lifting height of 3,000mm, this forklift is perfect for industries that require both power and precision in material handling.
This machine combines advanced technology with robust construction to ensure reliable performance in demanding environments such as manufacturing facilities, warehouses, construction sites, and logistics centers.

Key Features





  • 15,000kgs Rated Load Capacity: The forklift can handle heavy loads efficiently and safely, making it suitable for moving large machinery, bulk materials, and heavy pallets.
  • 45 - 90° Tilt Angle: Provides excellent load stability and flexibility during handling. The adjustable tilt angle allows for easy stacking and transportation of various types of loads.
  • 3,000mm Mast Lifting Height: Offers sufficient lifting height for most indoor and outdoor applications. It enables efficient stacking and loading/unloading operations in warehouses and construction sites.
  • Powerful and Efficient Engine: Equipped with a high - torque engine that delivers strong performance while maintaining low fuel consumption. The engine is optimized for smooth and reliable operation.
  • Ergonomic Operator Cabin: The spacious and comfortable cabin features excellent visibility and easy - to - reach controls. It reduces operator fatigue during long - hour operations.
  • Advanced Safety Features: Multiple safety sensors and alarms monitor the machine's status and surroundings. Emergency stop functions and a stable counterweight design provide extra protection for the operator.
Parameters: Vehicle configuration   FD150
Performance Rated load   15000
  Load center   600
  Mast tilt angle (front/rear) º 6/12
  Overall dimensions Length mm 6635
    Width mm 2230
    Height mm 3050
    Mast lifting height mm 3000
  Fork size (L*W*H) mm 1800X200X90
  Min. turning radius mm 4800
  Max. travel speed (with load) Km/h 22
  Lifting speed (with load) mm/s 220
  Gradeability (with load) % 20
  Weight Kg 18000
Tyre Front   4X12.00-20/20PR
  Rear   2X12.00-20/18PR
  Wheel tread Front mm 1740
    Rear mm 1900
  Wheelbase mm 3300
  Min. ground clearance mm 270
Engine Model   YC6J175-T302
  Rated power KW 129
  Max. torque N.m 710





Applications

  • Manufacturing Facilities: Lift and transport heavy raw materials and finished products within factories. Ideal for automotive, machinery, and heavy - industry manufacturing.
  • Warehousing Operations: Handle large - scale inventory and palletized goods in warehouses. Efficiently stack and retrieve items from high - level storage racks.
  • Construction Sites: Move construction equipment, steel materials, and other heavy - duty items around construction sites. Assist in loading and unloading materials from trucks.
  • Logistics Centers: Load and unload heavy cargo from trucks and containers in distribution centers. Facilitate efficient material flow and reduce handling time.
