Product Introduction

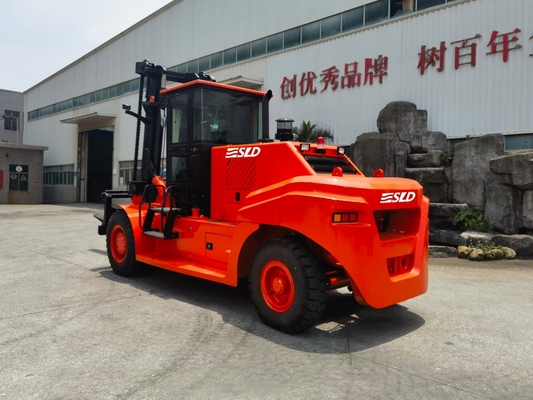

If you're looking for a powerful forklift to handle heavy - duty tasks, our 45 - 90 Degrees Tilt Angle Heavy Lift Forklift with15000kgs Rated Load is the perfect choice for you.
This forklift is designed to meet the needs of various industries, including manufacturing, warehousing, construction, and logistics. With its robust construction and high - performance capabilities, it can efficiently lift and transport heavy loads, saving you time and effort.
Key Features
Wide Tilt Angle Range: The 45 - 90 degrees tilt angle allows for better load stability and handling, especially on uneven surfaces or when stacking goods.
High Load Capacity: The 15,000kgs rated load makes it suitable for lifting heavy machinery, large equipment, and bulk materials.
Customized OEM Design: We offer customized design services to meet your specific requirements. Whether you need a specific color, logo, or additional features, we can tailor the forklift to your needs.
Advanced Safety Features: Equipped with multiple safety sensors and alarms to ensure safe operation. The emergency brake system and stable mast structure provide extra protection for the operator.
High - Performance Engine: Powered by a high - torque engine, it delivers strong power output and reliable performance, even under heavy - duty conditions.
Ergonomic Design: The comfortable cabin offers excellent visibility and easy - to - reach controls, reducing operator fatigue during long - hour operations.
| Parameters: |
Vehicle configuration |
|
FD150 |
| Performance |
Rated load |
|
15000 |
| Load center |
|
600 |
| Mast tilt angle (front/rear) |
º |
6/12 |
| Overall dimensions |
Length |
mm |
7200 |
| Width |
mm |
2550 |
| Height |
mm |
3460 |
| Mast lifting height |
mm |
3000 |
| Fork size (L*W*H) |
mm |
1800X200X90 |
| Min. turning radius |
mm |
5050 |
| Max. travel speed (with load) |
Km/h |
22 |
| Lifting speed (with load) |
mm/s |
240 |
| Gradeability (with load) |
% |
20 |
| Weight |
Kg |
17000 |
| Tyre |
Front |
|
4X12.00-24/20PR |
| Rear |
|
2X12.00-20/18PR |
| Wheel tread |
Front |
mm |
1850 |
| Rear |
mm |
2130 |
| Wheelbase |
mm |
3600 |
| Min. ground clearance |
mm |
270 |
| Engine |
Model |
|
YC6J175-T302 |
| Rated power |
KW |
129 |
| Max. torque |
N.m |
710 |
Applications
Manufacturing Industry: Lift and transport heavy raw materials and finished products within factories.
Warehousing and Logistics: Handle palletized goods, containers, and large - scale inventory in warehouses and distribution centers.
Construction Sites: Move construction equipment, steel materials, and other heavy - duty items around construction sites.
Port and Dock Operations: Load and unload heavy cargo from ships, trucks, and trains at ports and docks.
