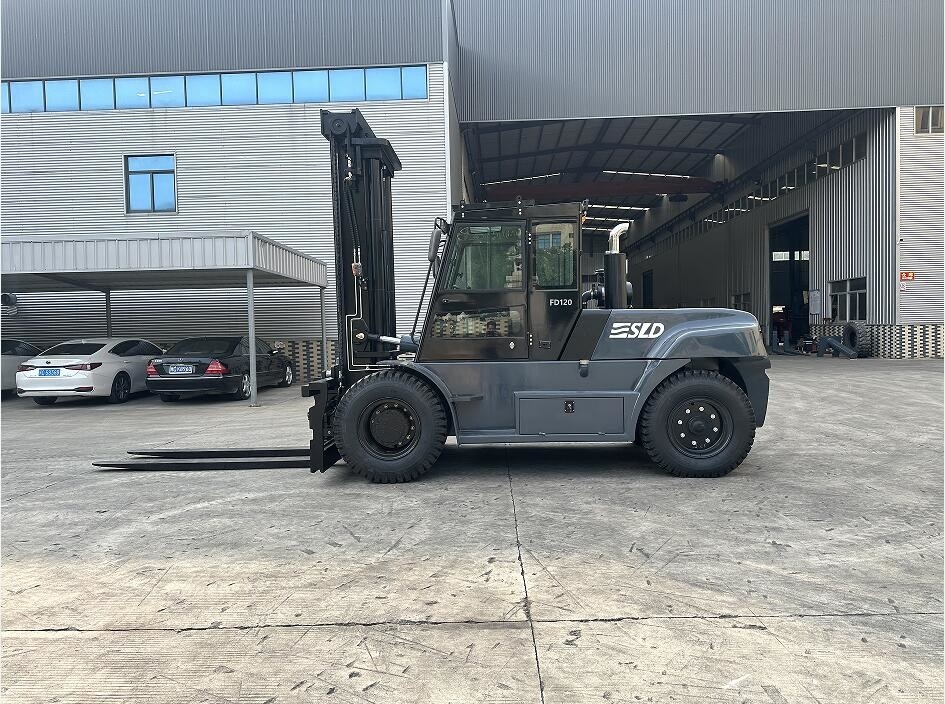

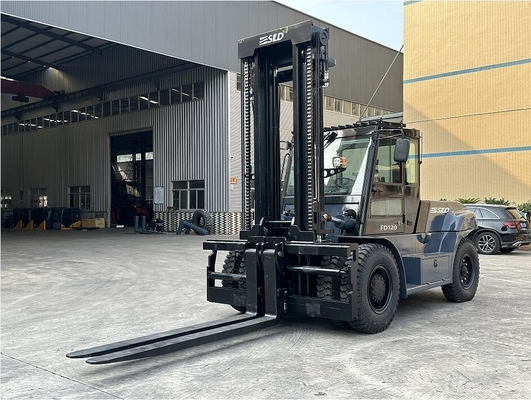

Full Cabin 12 Ton Powerful Heavy Lift Forklift With Air Conditioner

Full Cabin 12 Ton Powerful Heavy Lift Forklift With Air Conditioner
Full Cabin 12 Ton Powerful Heavy Lift Forklift With Air Conditioner Full Cabin 12 Ton Powerful Heavy Lift Forklift With Air Conditioner

Large Image :  Full Cabin 12 Ton Powerful Heavy Lift Forklift With Air Conditioner

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD120
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD43,478.00~USD50,724.00 unit
Packaging Details: 40HQ containers
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Detailed Product Description
Name: Heavy Lift Forklift Rated Load: 12000 Kgs
Mast Lifting Height: 3000mm Wheel Base: 2950mm
Service Weight: 16000kgs Engine: Yuchai Or CUMMINS
Load Center: 600mm Fork Size: 1600X180X90mm
Highlight:

12T Heavy Lift Forklift

,

Full Cabin Heavy Lift Forklift

,

Air Conditioner 12 Ton Forklift

Full Cabin with air conditioner 12 Ton Powerful Forklift With Cheap Price



Main features:

Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.

Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance

Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.

Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse,

longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.

Tyre: High strength tyres, bear heavy loaded - safe and reliable.

Fork: Reinforced fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity

Mast: Box-type internal-external mast, special all-round roller bearings, increase performance.

Cab: With air-conditioning and heating, and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation, wide view and comfortable seats, flexible control.

Engine: CUMMINS engine, strong power, energy conservation and environmental protection.

Transmission & torque converter: Hydraulic transmission special for heavy-duty forklift, imported technology, reliable performance, convenient maintenance, smooth transmission and convenient operation.

Driven axle: Reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.

Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.

Braking system: Use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.


Heavy Lift Forklift Parameters



Parameters:  Vehicle configuration   FD120
Performance Rated load   12000
Load center   600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 6130
Width mm 2230
Height mm 2940
Mast lifting height mm 3000
Fork size (L*W*H) mm 1600X180X90
Min. turning radius mm 4350
Max. travel speed (with load) Km/h 23
Lifting speed (with load) mm/s 220
Gradeability (with load) % 20
Weight Kg 16000
Tyre Front   4X11.00-20/18PR
Rear   2X10.00-20/18PR
Wheel tread Front mm 1630
Rear mm 1780
Wheelbase mm 2950
Min. ground clearance mm 300
Engine Model   YC6J150-T301
Rated power KW 110
Max. torque N.m 600

Note: the above data are subject to change without prior notice.
