Product Details:
Payment & Shipping Terms:
|
Rated Load: | 12000 Kgs | Load Center: | 600mm |
---|---|---|---|
Mast Lifting Height: | 3000mm | Wheel Base: | 2950mm |
Service Weight: | 16000kgs | Engine: | Yuchai Or CUMMINS |
Color: | Orange Red,customized | Warranty: | One Year Or 2000 Working Hours |
Fork Size: | 1600X180X90mm | Options: | Full Cabin With A/C, Fork Positioner, Side Shift |
Attachments: | Fork, Roll Prong, Bale Clamp, Tire Clamp | ||
Highlight: | Hydraulic Transmission 12 Ton Forklift,Overhead Guard 12 Ton Forklift,Cummins Engine Heavy Forklift Truck |

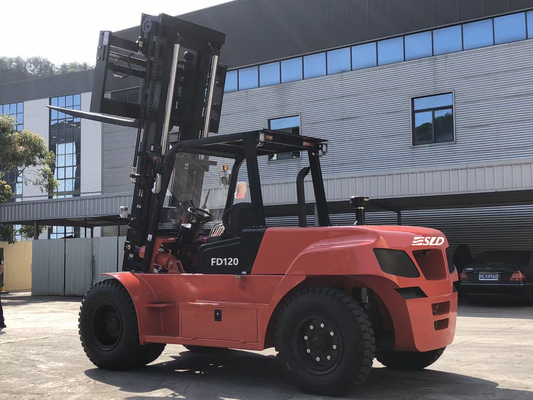

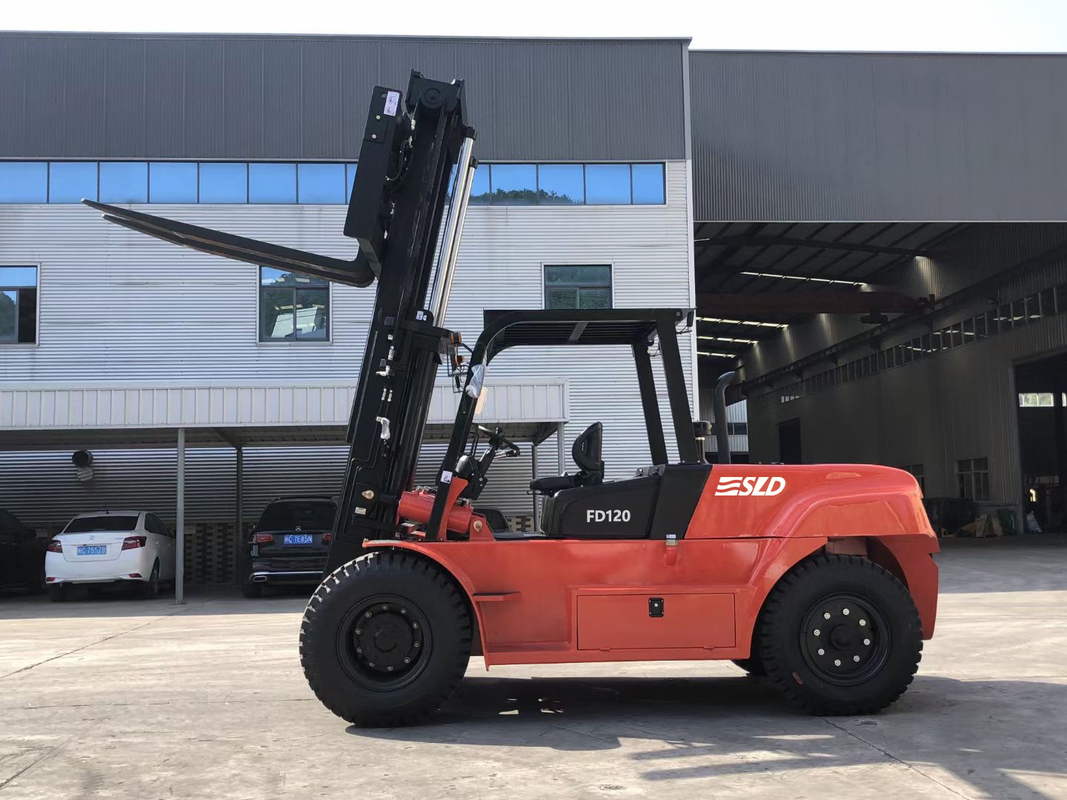

SLD 12 Ton Forklift With Overhead Guard Cummins Engine Hydraulic Transmission
Main features of heavy lift forklift:
Engine: CUMMINS engine, strong power, energy conservation and environmental protection.
Transmission & torque converter: Hydraulic transmission special for heavy-duty forklift, imported technology, reliable performance, convenient maintenance, smooth transmission and convenient operation.
Driven axle: Reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse,
longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.
Tyre: High strength tyres, bear heavy loaded - safe and reliable.
Fork: Reinforced fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: Box-type internal-external mast, special all-round roller bearings, increase performance.
Cab: With air-conditioning and heating, and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation, wide view and comfortable seats, flexible control.
Parameters: | Vehicle configuration | FD120 | ||
Performance | Rated load | 12000 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 6130 | |
Width | mm | 2230 | ||
Height | mm | 2940 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1600X180X90 | ||
Min. turning radius | mm | 4350 | ||
Max. travel speed (with load) | Km/h | 23 | ||
Lifting speed (with load) | mm/s | 220 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 16000 | ||
Tyre | Front | 4X11.00-20/18PR | ||
Rear | 2X10.00-20/18PR | |||
Wheel tread | Front | mm | 1630 | |
Rear | mm | 1780 | ||
Wheelbase | mm | 2950 | ||
Min. ground clearance | mm | 300 | ||
Engine | Model | YC6J150-T301 | ||
Rated power | KW | 110 | ||
Max. torque | N.m | 600 |
Note: the above data are subject to change without prior notice.
