FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking

Certification
China Xiamen Sealand Development Co., Ltd. certification
China Xiamen Sealand Development Co., Ltd. certification
Customer Reviews
Ordered SLD 12 tons and 16 tons forklifts , good quality, perfect service, looking forward to more cooperation.

—— Mohammad Asharf

SLD 30 tons forklift, It was my good choice, will buy more forklifts.

—— Ricky So

I'm Online Chat Now

FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking

FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking
FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking

Large Image :  FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD350
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD171,490.00 Unit
Packaging Details: Flat rack container
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 50 units per month
Detailed Product Description
Name: Heavy Duty Forklift Truck New Or Used: New
OEM: Customized Engine: Weichai Or CUMMINS
Engine Power: 192KW Load Center: 1250mm
Rated Load: 35000kgs Mast Lifting Height: 4000mm Or 5500mm
Usage: Transporting And Stacking Service Weight: 42000kgs
Highlight:

35000kgs Heavy Duty Forklift Truck

,

FD350 Heavy Duty Forklift Truck

,

Stacking Heavy Duty Forklift Truck

FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking


Heavy Duty Forklift Truck Feature


• Ergonomically design

• Wide-view Mast

• Excellent Cooling System and Heat Releasing System

• Cyclone Air Clean • Vertical Exhaust

• Dual Front Wheels

• Easy to maintain and repair

• Lower Gravity



Item Specification Unit
General 1 Model   FD350
2 Power Type/model   Diesel
3 Rated Capacity Kg 35000
4 Load Center mm 1250
Dimensions 5 Lift Height mm 4000
6 Fork size mm 2400*300*120
7 Mast Tilt Angle(F/R) deg 6/12
8 Fork Overhang mm 1190
9 Overall Dimensions Length without forks mm 7240
10 Overall Width mm 3360
11 Mast Lowered Height mm 4010
12 Height to Cabin mm 3770
13 Min.Outer turning Radius mm 6600
Performance 14 Speed Travel (Unload/Load) km/h 28/25
15 Max.Lifting (Unload/Load) mm/s 280/260
16 Max.gradeability(with Load) % 20
17 Max.traction(Load) KN 220
18 Service Weight kg 42000
Wheels&Tires 19 Tire Front   4×16.00-25-32PR
20 Rear   2×16.00-25-32PR
21 Tread Front mm 2430
22 Rear mm 2240
23 Wheelbase mm 4800
24 Min.Ground Clearance(Under mast) mm 400
Power & Transmission 25 Battery Voltage/Capacity(5HR) VA/h 2X12/150
26 Engine Model   WP10G240E341
27 Manufacturer   WEICHAI
28 Rated Output Kw 178
29 Rated Torque N.m 2200
30 No.Of Cyinder   6
31 Bore*stroke mm 114
32 Displacement L 8.3
33 Transmissions Model   ZL60
34 Gearshift (FWD/RVS)   2/1
  35 Operating Pressute Mpa 21

Note: the above data are subject to change without prior notice.

Main features of FD350 heavy duty forklift truck:
Engine: Adopt Cummins or Weichai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.

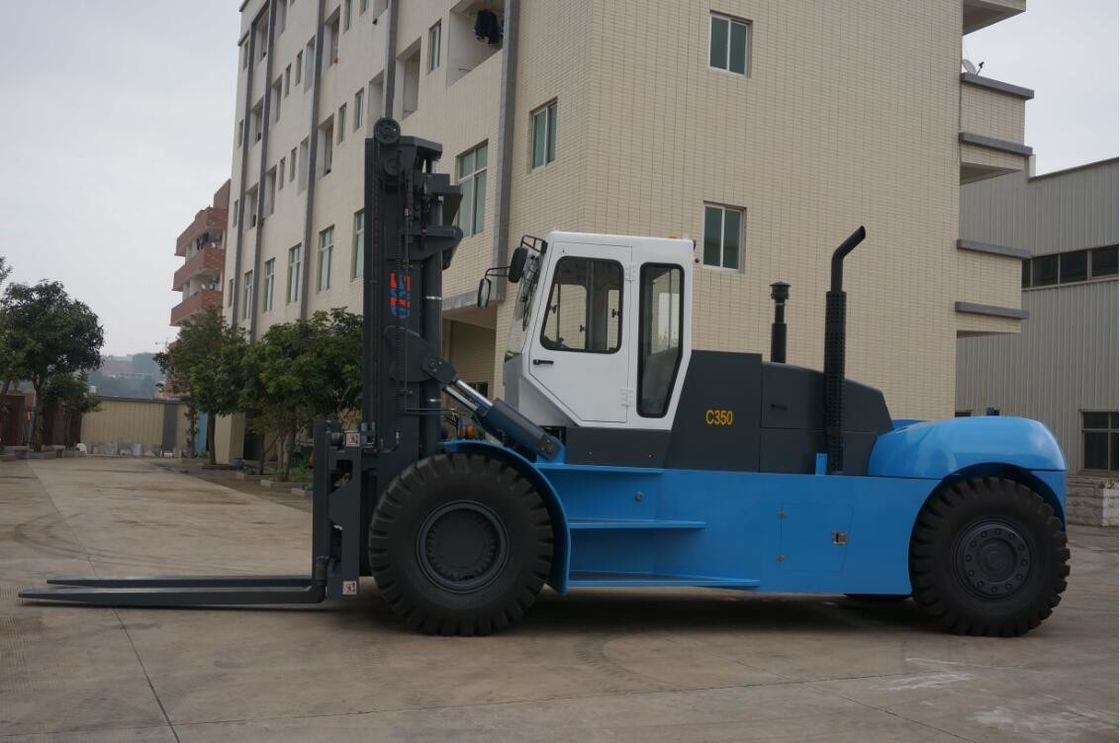

FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking 0
FD350 35000kgs Heavy Duty Forklift Truck For Transporting And Stacking 1
