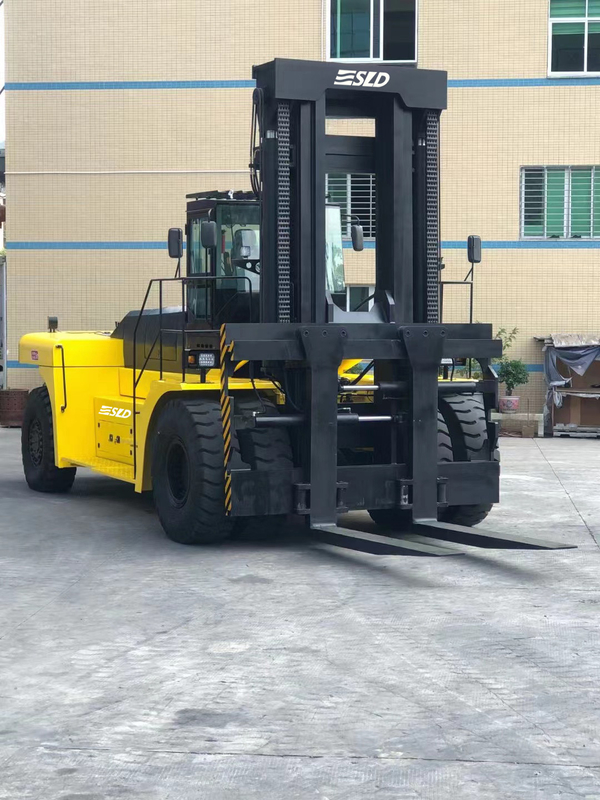

42 Tons 45 Tons Container Handler Heavy Lift Forklift Truck

42 Tons 45 Tons Container Handler Heavy Lift Forklift Truck
42 Tons 45 Tons Container Handler Heavy Lift Forklift Truck

Large Image :  42 Tons 45 Tons Container Handler Heavy Lift Forklift Truck

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD450
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Flat rack container
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 10 units per month
Detailed Product Description
Load Capacity: 45000 Kgs Load Center: 1250 Mm
Lifting Height: 4000 Mm Wheelbase: 5500 Mm
Service Weight: 53000 Kgs Engine: Weichai , 276 KW
Transmission: Powershift, ZL80 New Or Used: New
Performance: Quality Product Color: Orange Yellow
Highlight:

45Tons Container Handler

,

42Tons Heavy Lift Forklift Truck

42 Tons 45 Tons Container Handler Heavy Duty Forklift Truck





SLD 45 tons heavy lift forklift compare of TCM / Sany / Kalmar / Konecranes 45 tons diesel forklift, cheaper price base on good quality.High return on investment.



Main features of 42 tons 45 tons container forklifts:

  • Weichai powerful turbocharged engine with 6-cylinder 4-stroke, excellent performance and high torque reserve make low-oil consumption.
  • Chinese famous Hangzhou Advanced transmission ZL80 special use for heavy duty forklifts, ZF technology. Double-turbo hydraulic torque converter facilitates the gear shifting for easier operation.
  • Enlarged and strengthened professional driven axle special for heavy duty forklifts, also adopt enlarged bearing, gear, hub and supporting shaft . The transmission system has reliable quality and increased support weight.
  • Increase the steering cylinder to ensure flexible steering under heavy load. The system pressure of the whole machine is stronger and the lifting force is sufficient.
  • Independent transmission oil heat dissipation to improve system stability; The operation is light and comfortable to improve the stability of the system.
  • Luxury mold molding new professional cab, strong rigidity, high strength, outstanding sound insulation and shockproof effect. Equipped with professional cooling and heating air conditioners. Wiper spray setting, the whole machine operation is more modern and humanized.
  • Luxurious appearance and harmonious proportion structure make it beautiful, generous and compact. New arc appearance design, beautiful and generous appearance.
  • The ultra long wheelbase design improves the longitudinal stability of the whole vehicle and ensures the operation balance and load, so as to realize the effective lifting of goods. More reliable quality and long service life of products.
  • The tire adopts Sino US joint venture Zhongwei . Ensure high bearing capacity, durability and greatly prolong the aging.
  • Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
  • Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance.
  • Use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
  • Box-type internal-external mast, special all-round roller bearings, increase lifting performance.



Item Specification Unit SLD
General 1 Model   FD450
3 Power Type   Diesel
4 Rated Capacity Kg 42000
5 Load Center mm 1250
Dimensions 6 Mast Lift Height mm 4000
7 Fork Size(LxWxT) mm 2600x300x130
8 Fork Spread(outside)(Min./Max) mm 910/2830
9 Mast Tilt Angle(F/R) deg 6·/12·
10 Fork Overhang mm 1180
11 Overall Length without forks mm 8170
12 Overall Width mm 3600
13 Mast Lowered Height mm 5040
14 Cabin Height mm 3820
15 Min.Turning Radius   mm 7730
Performance 16 Speed(Unload/Load) Travel km/h 30/26
17 Lifting mm/s 300
18 Max.gradeability(Load) % 20
19 Max.traction(Load) KN 240
20 Service Weight kg 55000
Tires 21 Tire size Front   4X18.00-25-28PR
22 Rear   2X16.00-25-28PR
23 Tread Front mm 2495
24 Rear mm 2880
25 Wheelbase mm 5500
26 Min.Ground Clearance(Under mast) mm 400
Power & Transmission 27 Battery Voltage/Capacity(5HR) V/Ah 2X12/150
28 Engine Model   WP12G375E350
29 Manufacture   WeiChai
30 Rated Output Kw 276
31 Rated Torque N.m 1550
32 No.Of Cyinder   6
33 Bore*stroke mm 126x155
34 Displacement L 11.6
35 Transmissions Manufacture   ZL80
37 Gears FWD/RVS   4/4
  38 Operating Pressute Mpa 21

Note: the above data are subject to change without prior notice.
