Name: | Heavy Lift Forklift | Rated Load: | 15000 Kgs |
---|---|---|---|
Mast Lifting Height: | 3000mm | Wheel Base: | 2950mm |
Service Weight: | 18000kgs | Engine: | CUMMINS |
Load Center: | 600mm | Fork Size: | 1600X180X90mm |
Highlight: | Diesel Heavy Lift Forklift,12Ton Heavy Lift Forklift,CUMMINS Diesel Forklift |

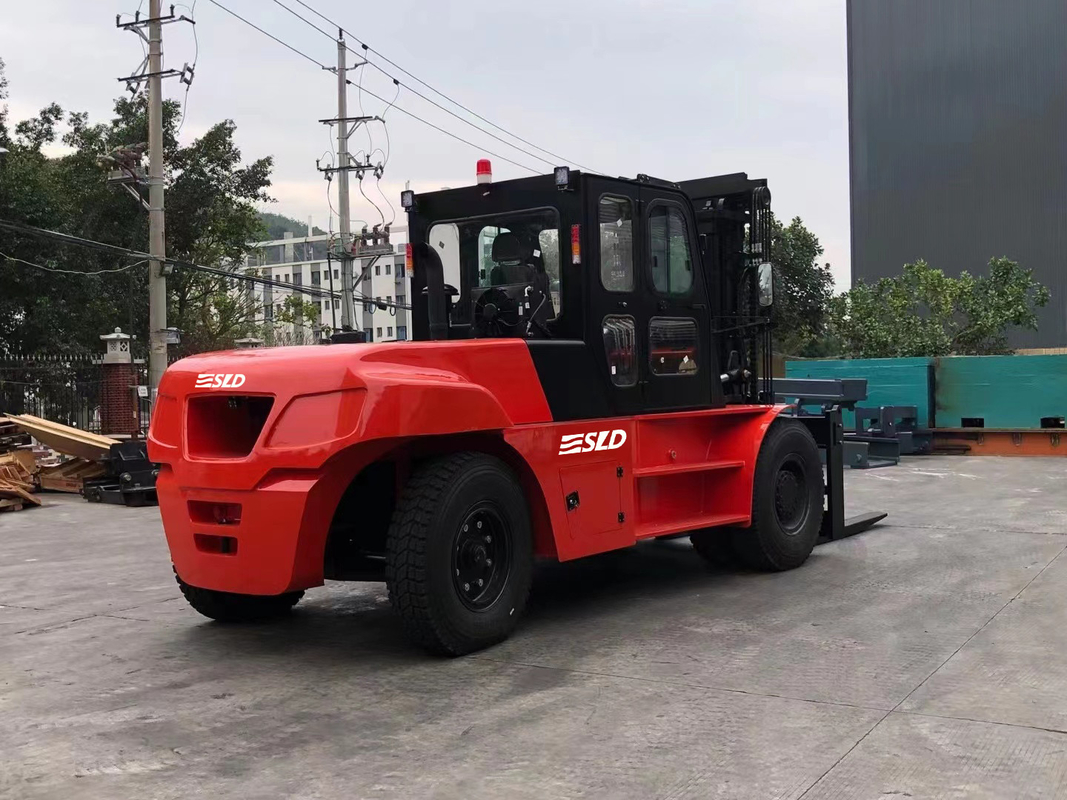

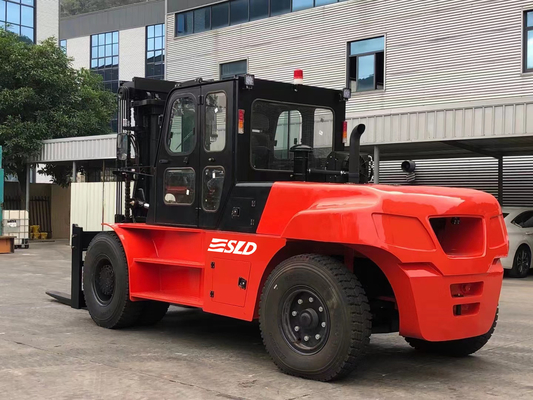

Heavy Duty Forklift 12 Ton 15 Ton 16 Ton Diesel Forklift For Sale
Main features of 15 ton 16 tons heavy lift diesel forklift:
Engine: Adopt Yuchai or CUMMINS turbocharging engine, powerful, energy conservation,
environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lift performance.
Overhead guard or Cab: Strong roof guard or full cabin with cool air-conditioner, wide view and comfortable seats, flexible control.
Heavy heavy forklift Parameters
Parameters: | Vehicle configuration | FD135 | ||
Performance | Rated load | 13500 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 6130 | |
Width | mm | 2230 | ||
Height | mm | 2940 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1600X180X90 | ||
Min. turning radius | mm | 4350 | ||
Max. travel speed (with load) | Km/h | 23 | ||
Lifting speed (with load) | mm/s | 220 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 16000 | ||
Tyre | Front | 4X11.00-20/18PR | ||
Rear | 2X10.00-20/18PR | |||
Wheel tread | Front | mm | 1630 | |
Rear | mm | 1780 | ||
Wheelbase | mm | 2950 | ||
Min. ground clearance | mm | 300 | ||
Engine | Model | YC6J150-T301 | ||
Rated power | KW | 110 | ||
Max. torque | N.m | 600 |
Note: the above data are subject to change without prior notice.
