Product Details:
Payment & Shipping Terms:
|
Engine: | Yuchai Or CUMMINS | Rated Load: | 12000 Kgs |
---|---|---|---|
Load Center: | 600mm | Mast Lifting Height: | 3000mm |
Wheel Base: | 2950mm | Service Weight: | 16000kgs |
Color: | Orange Red,customized | Warranty: | One Year Or 2000 Working Hours |
Fork Size: | 1600X180X90mm | Options: | Full Cabin With A/C, Fork Positioner, Side Shift |
Attachments: | Fork, Roll Prong, Bale Clamp, Tire Clamp | ||
Highlight: | 12 Tons Heavy Duty Forklift,600mm Heavy Duty Forklift,Cummins Engine Heavy Lift Truck |

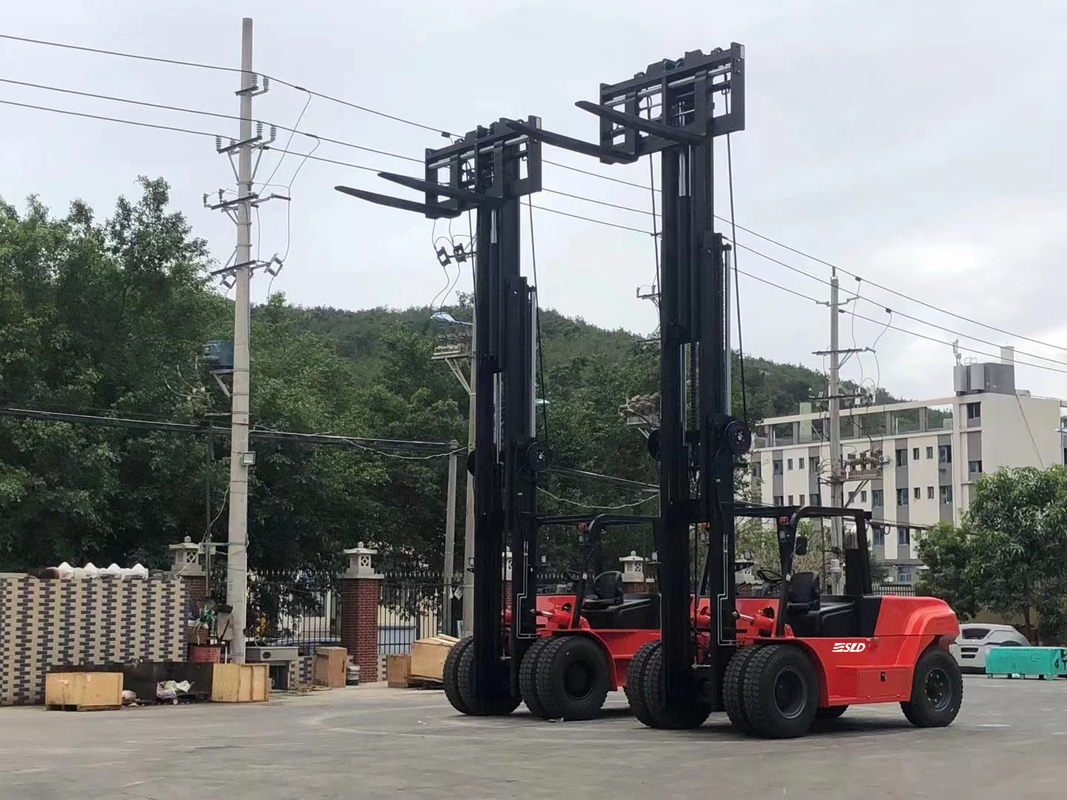

Heavy Duty Forklift 12 Tons With Cummins Engine For Sale
Features of 12 ton forklift:
1, The engine is Cummins or Yuchai Diesel Engine. big power, large torque, simple to operate and luxurious operation environment, save energy.
2, Hydraulic power shift transmission, big traction in combined operating condition, the transmission system more reliable.
3, Variable speed control valve matched with neutral starter, the machine start more secure.
4, Front axle adopt heavy duty type driving axle, enlarge size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist, steel structure bridge shell support, increase the load capacity and service life.
5, Strong roof guard or full cabin with air-conditioning , wide view and comfortable seats, flexible control.
Parameters: | Vehicle configuration | FD120 | ||
Performance | Rated load | 12000 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 6130 | |
Width | mm | 2230 | ||
Height | mm | 2940 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1600X180X90 | ||
Min. turning radius | mm | 4350 | ||
Max. travel speed (with load) | Km/h | 23 | ||
Lifting speed (with load) | mm/s | 220 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 16000 | ||
Tyre | Front | 4X11.00-20/18PR | ||
Rear | 2X10.00-20/18PR | |||
Wheel tread | Front | mm | 1630 | |
Rear | mm | 1780 | ||
Wheelbase | mm | 2950 | ||
Min. ground clearance | mm | 300 | ||
Engine | Model | YC6J150-T301 | ||
Rated power | KW | 110 | ||
Max. torque | N.m | 600 |
Note: the above data are subject to change without prior notice.
