Rated Load: | 12000 Kgs | Load Center: | 600mm |
---|---|---|---|
Mast Lifting Height: | 3000mm | Wheel Base: | 2950mm |
Service Weight: | 16000kgs | Engine: | Yuchai Or CUMMINS |
Color: | Orange Red,customized | Warranty: | One Year Or 2000 Working Hours |
Fork Size: | 1600X180X90mm | Options: | Full Cabin With A/C, Fork Positioner, Side Shift |
Attachments: | Fork, Roll Prong, Bale Clamp, Tire Clamp | ||
Highlight: | 12Ton Diesel Forklift,6m Lifting Height Diesel Forklift,CE Heavy Lift Forklift |

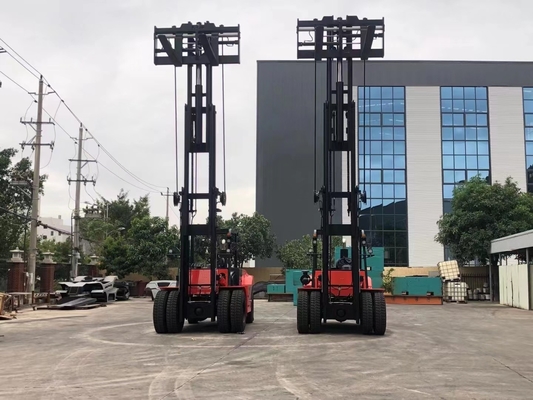

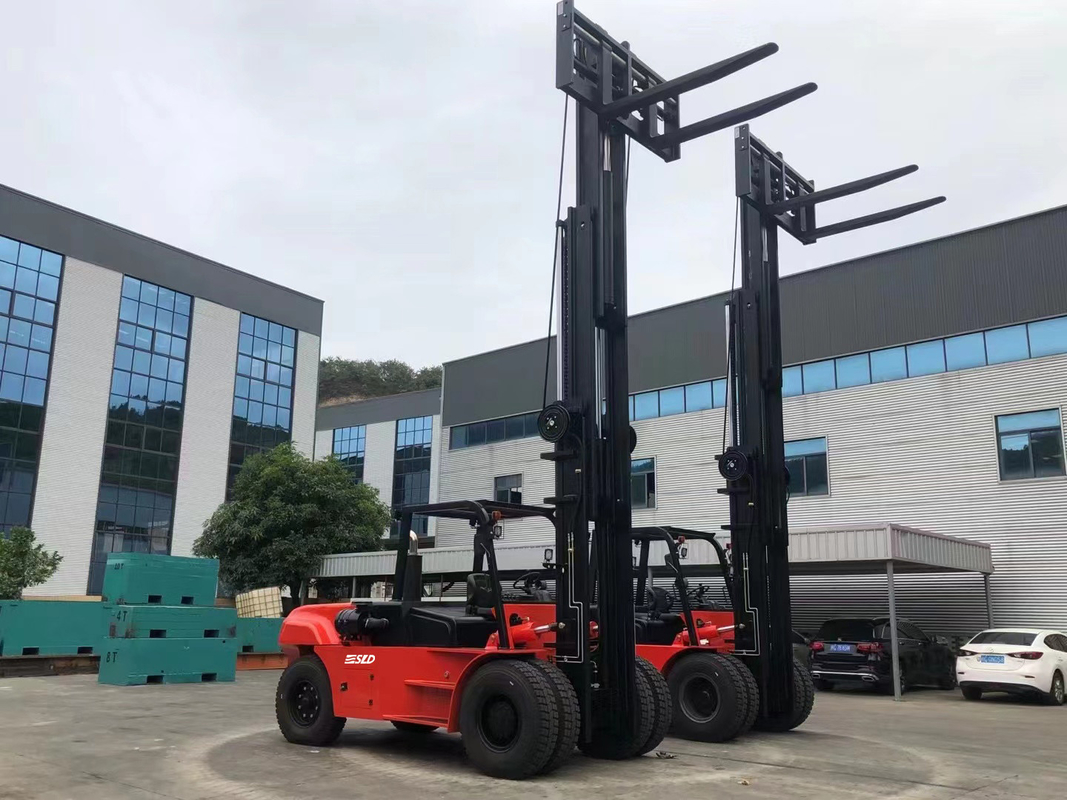

12 Ton Diesel Forklift With Lifting Height 6m, full cabin with A/C, fork positioner & side shift.
Main features of heavy lift forklift:
Engine: Adopt Cummins or Yuchai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable . Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Overhead guard or Cab: Strong roof guard or full cabin with air-conditioning , wide view and comfortable seats, flexible control.
Parameters: | Vehicle configuration | FD120 | ||
Performance | Rated load | 12000 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 6130 | |
Width | mm | 2230 | ||
Height | mm | 2940 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1600X180X90 | ||
Min. turning radius | mm | 4350 | ||
Max. travel speed (with load) | Km/h | 23 | ||
Lifting speed (with load) | mm/s | 220 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 16000 | ||
Tyre | Front | 4X11.00-20/18PR | ||
Rear | 2X10.00-20/18PR | |||
Wheel tread | Front | mm | 1630 | |
Rear | mm | 1780 | ||
Wheelbase | mm | 2950 | ||
Min. ground clearance | mm | 300 | ||
Engine | Model | YC6J150-T301 | ||
Rated power | KW | 110 | ||
Max. torque | N.m | 600 |
Note: the above data are subject to change without prior notice.
