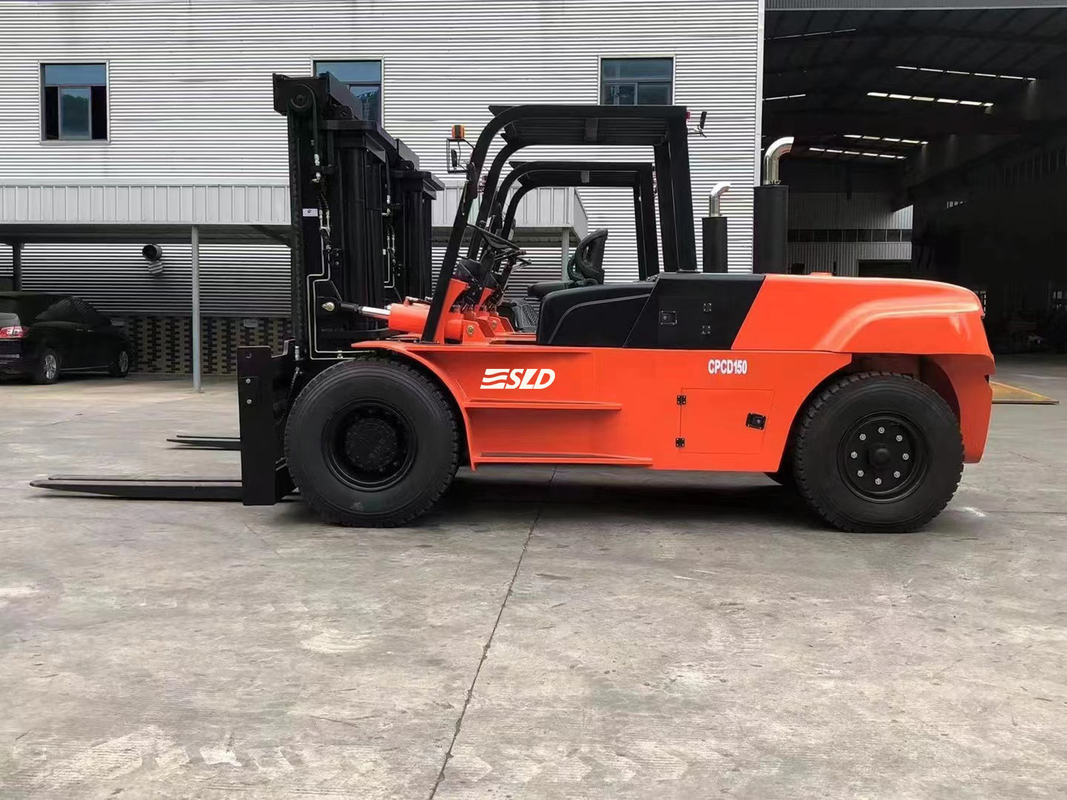

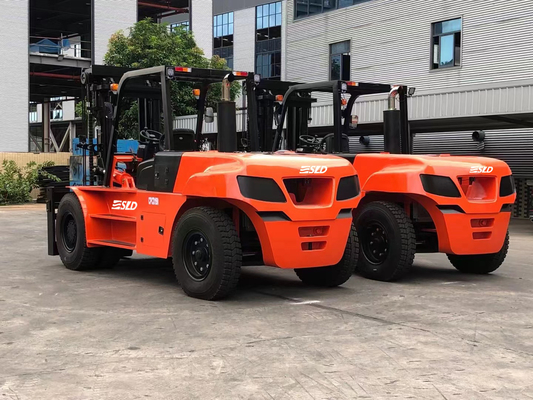

Hydraulic Powershift Diesel Lift Truck 15 Tons Customized

Hydraulic Powershift Diesel Lift Truck 15 Tons Customized
Hydraulic Powershift Diesel Lift Truck 15 Tons Customized Hydraulic Powershift Diesel Lift Truck 15 Tons Customized

Large Image :  Hydraulic Powershift Diesel Lift Truck 15 Tons Customized

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD150
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD57,971.00~USD65217.00 unit
Packaging Details: 1X40HQ container
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Detailed Product Description
Engine: Yuchai Or CUMMINS Transmission: Hydraulift Powershift
Max. Lifting Height: 3000mm Rated Capacity: 15000kgs
Load Center: 600mm Wheelbase: 3600mm
Service Weight: 18000kgs Color: Orange Red, Customized
OEM: Customized New Or Used: New
Highlight:

Hydraulic Powershift Diesel Lift Truck

,

15 Tons Diesel Lift Truck

,

Customized Heavy Lift Forklift

Economic 15 Tons lift truck with good quality hot sale



Main features of 15 ton diesel forklift:

Engine: Adopt Yuchai or CUMMINS turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.

Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.

Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.

Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.

Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance

Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.

Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.

Tyre: Resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.

Mast: Box-type internal-external mast, special all-round roller bearings, increase lift performance.

Overhead guard or Cab: Strong roof guard or full cabin with cool air-conditioner, wide view and comfortable seats, flexible control.



Parameters: Vehicle configuration   FD150
Performance Rated load   15000
  Load center   600
  Mast tilt angle (front/rear) º 6/12
  Overall dimensions Length mm 6635
    Width mm 2230
    Height mm 3050
    Mast lifting height mm 3000
  Fork size (L*W*H) mm 1800X200X90
  Min. turning radius mm 4800
  Max. travel speed (with load) Km/h 22
  Lifting speed (with load) mm/s 220
  Gradeability (with load) % 20
  Weight Kg 18000
Tyre Front   4X12.00-20/20PR
  Rear   2X12.00-20/18PR
  Wheel tread Front mm 1740
    Rear mm 1900
  Wheelbase mm 3300
  Min. ground clearance mm 270
Engine Model   YC6J175-T302
  Rated power KW 129
  Max. torque N.m 710

Note: the above data are subject to change without prior notice.
