25 Tons Heavy Duty Forklift For Handling 20ft Containers In Port Yard

25 Tons Heavy Duty Forklift For Handling 20ft Containers In Port Yard
25 Tons Heavy Duty Forklift For Handling 20ft Containers In Port Yard 25 Tons Heavy Duty Forklift For Handling 20ft Containers In Port Yard

Large Image :  25 Tons Heavy Duty Forklift For Handling 20ft Containers In Port Yard

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD250, CPCD250
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD123,188.00~USD130,345.00/ Unit
Packaging Details: 1X40FR+1X20GP
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 50 units per month
Detailed Product Description
Engine: Weichai, CUMMINS Power: 162KW
Transmission: Electronic Control Hydraulic Powershift Rated Load: 25000kgs
Load Center: 1200mm Mast Lifting Height: 4000mm
Fork Size: 2400x300x120mm Color: Yellow, Customized
New Or Used: New Performance: Quality Product
Highlight:

25Tons Heavy Duty Forklift

,

20ft Containers Handling Heavy Duty Forklift

,

Port Yard 20ft Container Lift Truck

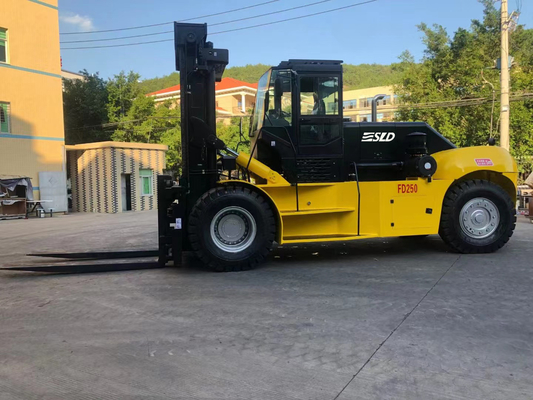

25 Tons Heavy Duty Forklift For Handling 20ft Containers In Port Yard



Main features of 25 ton forklifts

  • CUMMINS powerful turbocharged engine with 6-cylinder 4-stroke, excellent performance and high torque reserve make low-oil consumption.
  • Chinese famous Hangzhou Advanced transmission ZL50 special use for heavy duty forklifts, ZF technology. Double-turbo hydraulic torque converter facilitates the gear shifting for easier operation.
  • Enlarged and strengthened professional driven axle special for heavy duty forklifts, also adopt enlarged bearing, gear, hub and supporting shaft . The transmission system has reliable quality and increased support weight.
  • Increase the steering cylinder to ensure flexible steering under heavy load. The system pressure of the whole machine is stronger and the lifting force is sufficient.
  • Independent transmission oil heat dissipation to improve system stability; The operation is light and comfortable to improve the stability of the system.
  • Luxury mold molding new professional cab, strong rigidity, high strength, outstanding sound insulation and shockproof effect. Equipped with professional cooling and heating air conditioners. Wiper spray setting, the whole machine operation is more modern and humanized.
  • Luxurious appearance and harmonious proportion structure make it beautiful, generous and compact. New arc appearance design, beautiful and generous appearance.
  • The ultra long wheelbase design improves the longitudinal stability of the whole vehicle and ensures the operation balance and load, so as to realize the effective lifting of goods. More reliable quality and long service life of products.
  • The tire adopts Sino US joint venture Zhongwei . Ensure high bearing capacity, durability and greatly prolong the aging.
  • Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
  • Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance.
  • Use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
  • Box-type internal-external mast, special all-round roller bearings, increase lifting performance.



Parameters:  Vehicle configuration   FD250
Performance Rated load   25000
Load center   1200
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 9010
Width mm 3060
Height mm 3960
Mast lifting height mm 4000
Fork size (L*W*H) mm 2400X300X120
Min. turning radius mm 6160
Max. travel speed (with load) Km/h 25
Lifting speed (with load) mm/s 260
Gradeability (with load) % 20
Weight Kg 34500
Tyre Front   4X14.00-24/28PR
Rear   2X14.00-24/28PR
Wheel tread Front mm 2200
Rear mm 2170
Wheelbase mm 4400
Min. ground clearance mm 350
Engine Model   WD10G220E21
Rated power KW 162
Max. torque N.m 786

Note: the above data are subject to change without prior notice.
