Name: | 20 Tons Diesel Forklift | Rated Load: | 20000 Kgs |
---|---|---|---|
Load Center: | 900mm | Lifting Height: | 8000 Mm |
Engine: | Weichai | Transmission: | Hydraulic ZL50 |
Cabin: | Full Closed Cabin With AC | Tyre: | Pneumatic |
Color: | Orange Red, Yellow, Customized | Performance: | Quality Product |
Highlight: | 20Tons Diesel Forklift,Diesel Forklift FD200,Rated Load 20000kgs Heavy Lift Forklift |

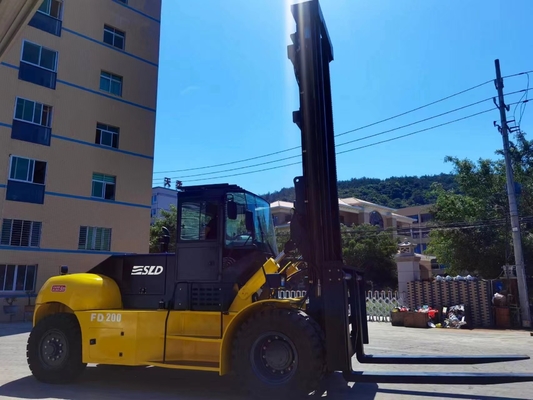

20 Tons Diesel Forklift FD200 Rated Load 20000kgs With High Mast Lifitng Height 8000mm
Main features:
Driven axle: Enlarged and strengthened professional driven axle special for heavy duty forklift, also adopt enlarged bearing, gear, hub and supporting shaft . The transmission system has reliable quality and increased support weight.
Steering system: Increase the steering cylinder to ensure flexible steering under heavy load. The system pressure of the whole machine is stronger and the lifting force is sufficient.
Cab: Luxury mold molding new professional cab, strong rigidity, high strength, outstanding sound insulation and shockproof effect. Equipped with professional cooling and heating air conditioners. Wiper spray setting, the whole machine operation is more modern and humanized.
Engine: Weichai / CUMMINS powerful turbocharged engine with 6-cylinder 4-stroke for excellent performance and high torque reserve is low-oil consumption.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable. Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Parameters: | Vehicle configuration | FD200 | ||
Performance | Rated load | 20000 | ||
Load center | 900 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 8000 | |
Width | mm | 2550 | ||
Height | mm | 3480 | ||
Mast lifting height | mm | 3500 | ||
Fork size (L*W*H) | mm | 2200X220X100 | ||
Min. turning radius | mm | 5600 | ||
Max. travel speed (with load) | Km/h | 26 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 25000 | ||
Tyre | Front | 4X14.00-24/20PR | ||
Rear | 2X12.00-20/20PR | |||
Wheel tread | Front | mm | 1850 | |
Rear | mm | 2130 | ||
Wheelbase | mm | 4050 | ||
Min. ground clearance | mm | 270 | ||
Engine | Model | WP10G220E21 | ||
Rated power | KW | 162 | ||
Max. torque | N.m | 786 |
Note: the above data are subject to change without prior notice.
