Name: | Heavy Lift Forklift | Rated Load: | 13500 Kgs |
---|---|---|---|
Mast Lifting Height: | 3000mm | Wheel Base: | 2950mm |
Service Weight: | 16000kgs | Engine: | Yuchai Or CUMMINS |
Load Center: | 600mm | Fork Size: | 1600X180X90mm |
Highlight: | 13.5 Ton Heavy Duty Diesel Forklift,Yuchai Engine Heavy Duty Diesel Forklift,13.5 Ton Heavy Diesel Forklift |

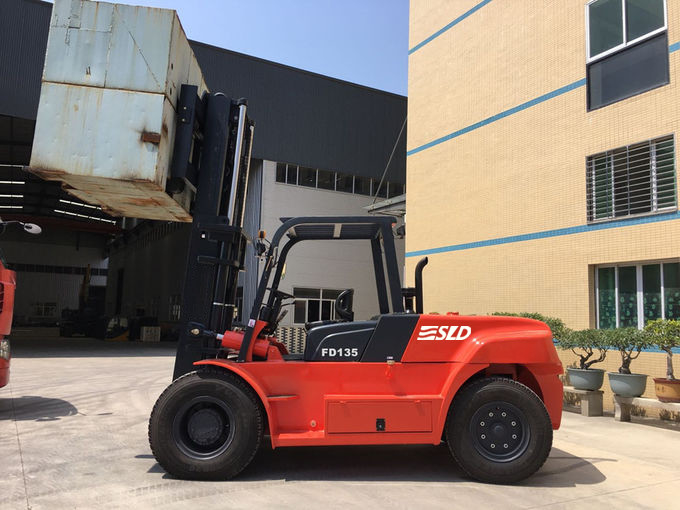

FD135 Diesel Forklift 13.5 Ton Heavy Duty Forklift
This 13.5 ton diesel forklift is widely accepted by customers because of its economy.
1. Adopt Yuchai diesel engine, large torque, strong overload capacity, reliable work, and low oil consumption.
2. Hydraulic transmission, Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.
3, Heavy load driven axle, Good heat dissipation and long service life.
4. Flexible steering axle adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability.
5. Standard 2 stage mast with wide view, reasonable structural design ensures high-quality performance.
13.5 tons heavy duty forklift Parameters
Parameters: | Vehicle configuration | FD135 | ||
Performance | Rated load | 13500 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 6130 | |
Width | mm | 2230 | ||
Height | mm | 2940 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1600X180X90 | ||
Min. turning radius | mm | 4350 | ||
Max. travel speed (with load) | Km/h | 23 | ||
Lifting speed (with load) | mm/s | 220 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 16000 | ||
Tyre | Front | 4X11.00-20/18PR | ||
Rear | 2X10.00-20/18PR | |||
Wheel tread | Front | mm | 1630 | |
Rear | mm | 1780 | ||
Wheelbase | mm | 2950 | ||
Min. ground clearance | mm | 300 | ||
Engine | Model | YC6J150-T301 | ||
Rated power | KW | 110 | ||
Max. torque | N.m | 600 |
Note: the above data are subject to change without prior notice.
