Name: | Heavy Lift Forklift | Rated Load: | 12000 Kgs |
---|---|---|---|
Mast Lifting Height: | 3000mm | Wheel Base: | 2950mm |
Service Weight: | 16000kgs | Engine: | Yuchai Or CUMMINS |
Load Center: | 600mm | Fork Size: | 1600X180X90mm |
Highlight: | 3000mm Heavy Lift Forklift,12 Ton Heavy Lift Forklift,3000mm 12 Ton Forklift |

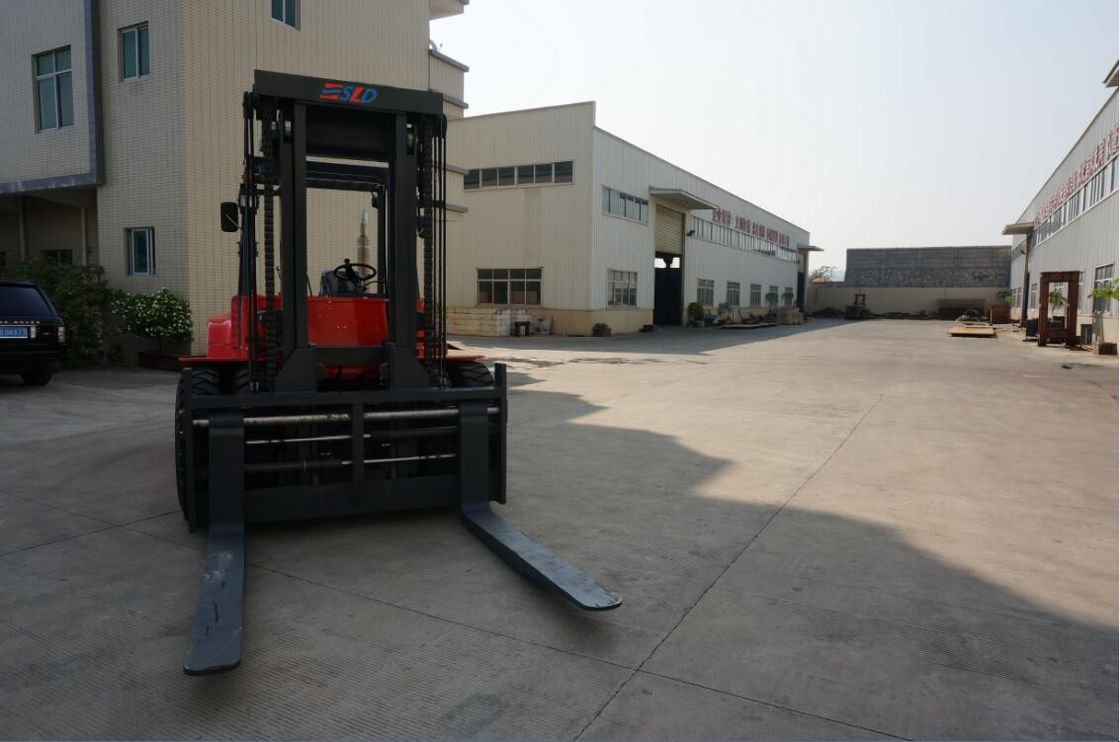

12 Ton 3000mm Heavy Lift Forklift Yuchai Or CUMMINS Engine
This new series Heavy Lift Forklift that made with the latest technical design provide you excellent operating perfor ce. Heavy Lift Forklift high standard perfor ce, comfortable driving experience and the simple and safe operation will make your work handier.
1. Adopt Yuchai diesel engine, which features sufficient power, large torque, strong overload capacity, reliable work, and low oil consumption
2. High strength solid steel gantry fork fixed with fork with regulator.
3. Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.
4. Fitted with handy steer with maximum freedom, provides steering conveniences.
5. An ideal operation friendly in the engineering and industrial sectors.
6. Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability
Heavy Lift Forklift Parameters
Parameters: | Vehicle configuration | FD120 | ||
Performance | Rated load | 12000 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 6130 | |
Width | mm | 2230 | ||
Height | mm | 2940 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1600X180X90 | ||
Min. turning radius | mm | 4350 | ||
Max. travel speed (with load) | Km/h | 23 | ||
Lifting speed (with load) | mm/s | 220 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 16000 | ||
Tyre | Front | 4X11.00-20/18PR | ||
Rear | 2X10.00-20/18PR | |||
Wheel tread | Front | mm | 1630 | |
Rear | mm | 1780 | ||
Wheelbase | mm | 2950 | ||
Min. ground clearance | mm | 300 | ||
Engine | Model | YC6J150-T301 | ||
Rated power | KW | 110 | ||
Max. torque | N.m | 600 |
Note: the above data are subject to change without prior notice.
