Name: | Heavy Duty Fork Trucks | Rated Load: | 25000kgs |
---|---|---|---|
Load Center: | 1200mm | Length Of Roll Prong: | 2000mm |
Mast Lifting Height: | 4000mm | Engine: | Weichai Or CUMMINS |
Transmission: | Hydraulic Powershift | New Or Used: | New |
Performance: | Quality Product | OEM: | Customized |
Highlight: | 25t Heavy Duty Fork Trucks,FD250 Heavy Duty Fork Trucks,FD250 heavy duty forklift truck |

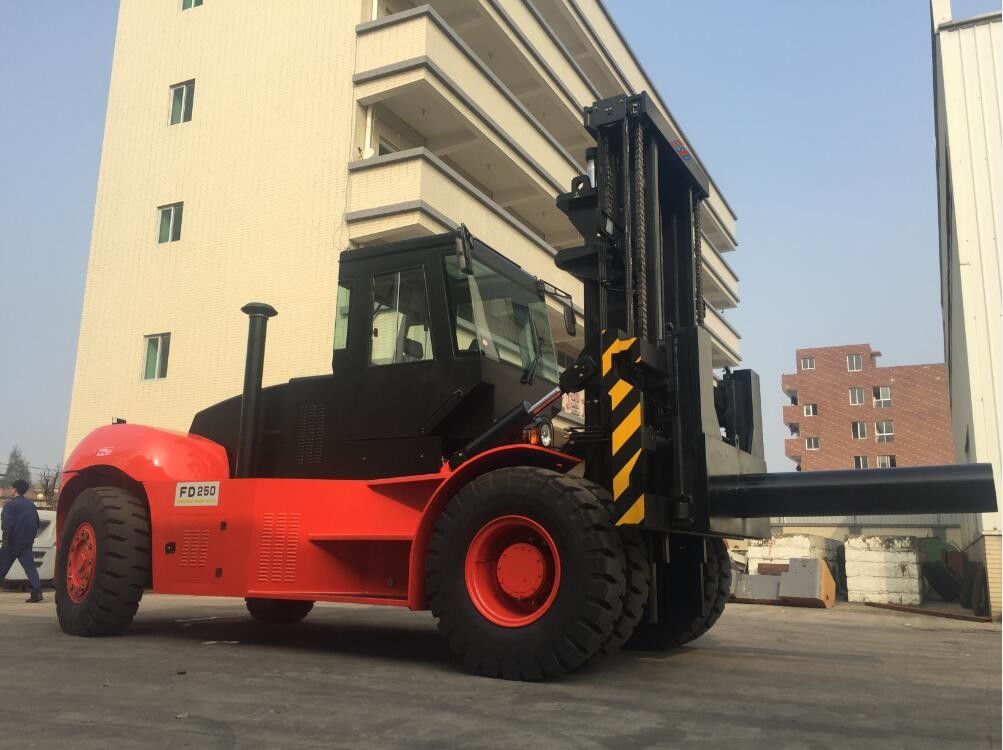

FD250 25t Heavy Duty Fork Trucks With Roll Prong Hydraulic System
Heavy Duty Fork Trucks Used in ports stations airports freight yards.The economical battery forklift stacker is designed for operation in narrow passageways and limited space, and the ideal equipment for loading/unloading and stacking products onto warehouses
Heavy Duty Fork Trucks Specification
Parameters: | Vehicle configuration | FD250 | ||
Performance | Rated load | 25000 | ||
Load center | 1200 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9010 | |
Width | mm | 3060 | ||
Height | mm | 3960 | ||
Mast lifting height | mm | 4000 | ||
Fork size (L*W*H) | mm | 2400X300X120 | ||
Min. turning radius | mm | 6160 | ||
Max. travel speed (with load) | Km/h | 25 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 34500 | ||
Tyre | Front | 4X14.00-24/28PR | ||
Rear | 2X14.00-24/28PR | |||
Wheel tread | Front | mm | 2200 | |
Rear | mm | 2170 | ||
Wheelbase | mm | 4400 | ||
Min. ground clearance | mm | 350 | ||
Engine | Model | WD10G220E21 | ||
Rated power | KW | 162 | ||
Max. torque | N.m | 786 |
Note: the above data are subject to change without prior notice.
Transmission & torque convert: imported technology, power shift electric control hydraulic transmission, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line use the famous brand, impact resistance, wear resistance and long service life
Engine: Cummins Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
