Engine: | CUMMINS | Transmission: | Power Shift Hydraulic |
---|---|---|---|
Rated Load: | 15000kgs | Load Center: | 600mm |
Mast Lifting Height: | 3500mm | Fork Length: | 1800mm |
Color: | Orange Red,customized | OEM: | Customized |
Attachments: | Fork, Roll Prong, Tire Prong | Options: | Side Shift, Fork Positioner |
Highlight: | CPCD150 Fork Lift Truck,15T Fork Lift Truck,CPCD150 Industrial Forklift Truck |

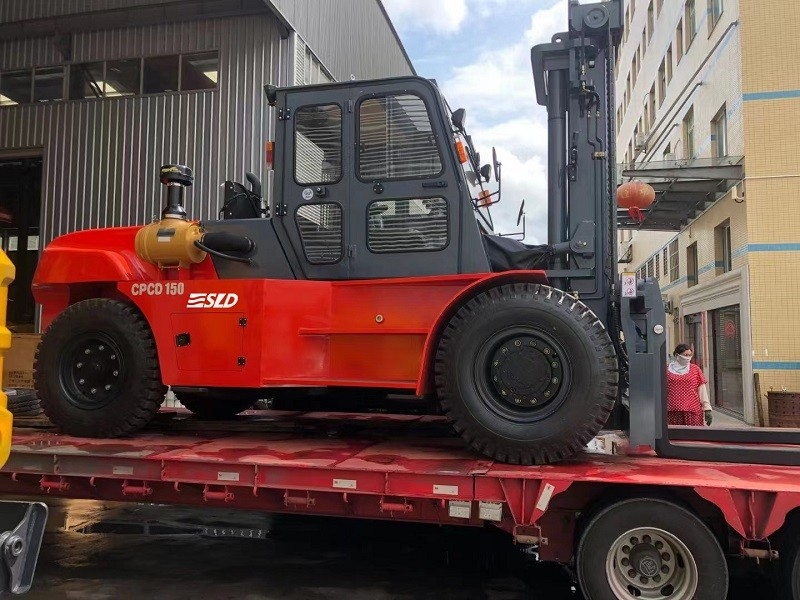

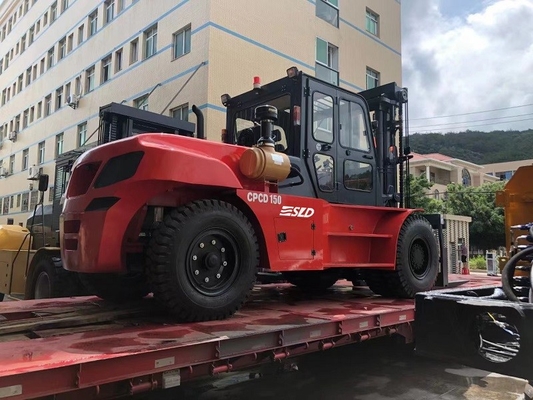

CPCD150 Fork Lift Truck 15 Tons Industrial Forklift
12 tons 13.5 tons 15 tons 16 tons forklifts are widely use in leasing and handling industry, steel factory, port etc.
At present, we have economic 15 tons and same as TCM configuration top 15 tons forklift as option. Customers can select suitable model to reach your operation conditions.
Engine:Yuchai YC6J175-T302 engine, national III stage, strong power, energy conservation and environmental protection.
Transmission & torque converter: Hydraulic transmission special for heavy-duty forklift, imported technology, reliable performance,convenient maintenance, smooth transmission and convenient operation.
Driven axle: Reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Linde type exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.
Tyre: High strength tyres, bear heavy loaded - safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity
Mast: Kalmar type box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: With air-conditioning and heating, and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
Parameters: | Vehicle configuration | FD150 | ||
Performance | Rated load | 15000 | ||
Load center | 600 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 7200 | |
Width | mm | 2550 | ||
Height | mm | 3460 | ||
Mast lifting height | mm | 3000 | ||
Fork size (L*W*H) | mm | 1800X200X90 | ||
Min. turning radius | mm | 5050 | ||
Max. travel speed (with load) | Km/h | 22 | ||
Lifting speed (with load) | mm/s | 240 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 17000 | ||
Tyre | Front | 4X12.00-24/20PR | ||
Rear | 2X12.00-20/18PR | |||
Wheel tread | Front | mm | 1850 | |
Rear | mm | 2130 | ||
Wheelbase | mm | 3600 | ||
Min. ground clearance | mm | 270 | ||
Engine | Model | YC6J175-T302 | ||
Rated power | KW | 129 | ||
Max. torque | N.m | 710 |
Note: the above data are subject to change without prior notice.
