Product Details:
Payment & Shipping Terms:
|
Engine: | Weichai, CUMMINS | Transmission: | Electronic Control Hydraulic Powershift |
---|---|---|---|
Rated Load: | 25000kgs | Load Center: | 1200mm |
Mast Lifting Height: | 5500mm | Power: | 162KW |
Fork Size: | 2400x300x120mm | Color: | Yellow, Customized |
New Or Used: | New | Performance: | Quality Product |
Highlight: | 20ft Container Lifting Forklift,30 Ton Container Lifting Forklift,28 Ton Shipping Container Forklift |

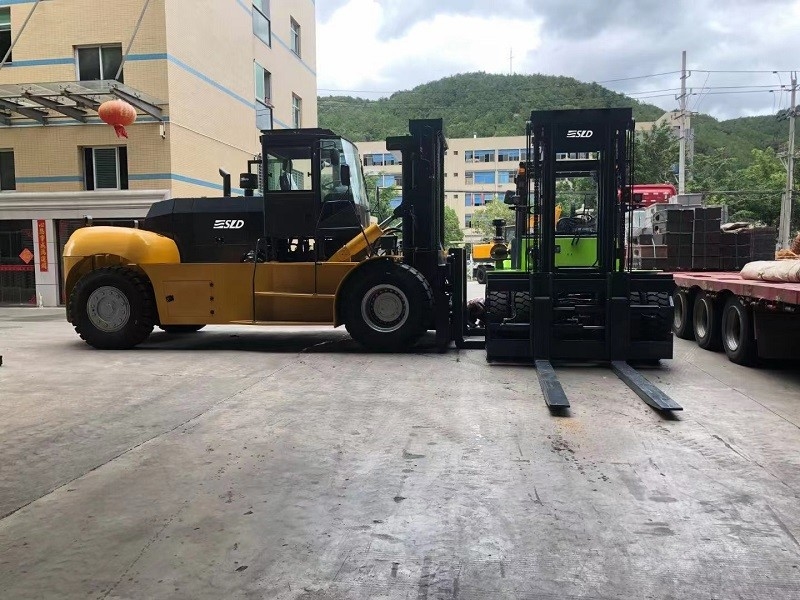

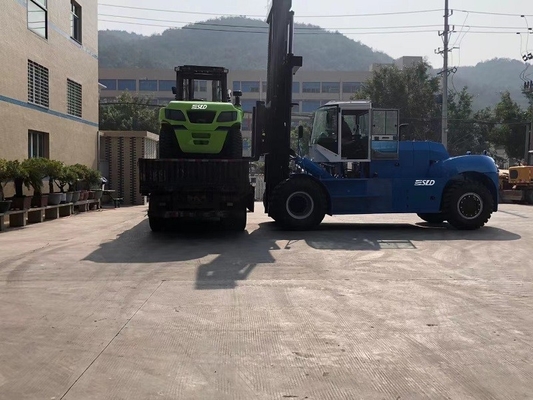

25 Tons 28 Tons 30 Tons Container Forklift Special Use For Lifting And Stacking Heavy 20ft Containers
Combined with advanced technology (TCM technology) , we design and produce characteristic heavy duty forklifts with high cost performance.
Not only provide forklifts with good quality and very competitive price, also bring perfect after-sale service to satisfy customers' working condition.
Main features of 25 ton 28 ton 30 ton forklifts
1. Adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, sa-tisfies the requirement of high efficiency operation.
2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.
3. Adopt double turbine hydraulic torque converter, stepless speed change, single level control for the speed changing.
4. Variable speed control valve matched with neutral starter, the machine start more secure.
5. Front axle adopt heavy duty type driving axle, enlarge the size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist,steel structure bridge shell support, increase the load capacity and service life.
6. Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
7. Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
8. Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.Note: the above data are subject to change without prior notice.
Parameters: | Vehicle configuration | FD250 | ||
Performance | Rated load | 25000 | ||
Load center | 1200 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9010 | |
Width | mm | 3060 | ||
Height | mm | 3960 | ||
Mast lifting height | mm | 4000 | ||
Fork size (L*W*H) | mm | 2400X300X120 | ||
Min. turning radius | mm | 6160 | ||
Max. travel speed (with load) | Km/h | 25 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 34500 | ||
Tyre | Front | 4X14.00-24/28PR | ||
Rear | 2X14.00-24/28PR | |||
Wheel tread | Front | mm | 2200 | |
Rear | mm | 2170 | ||
Wheelbase | mm | 4400 | ||
Min. ground clearance | mm | 350 | ||
Engine | Model | WD10G220E21 | ||
Rated power | KW | 162 | ||
Max. torque | N.m | 786 |
Note: the above data are subject to change without prior notice.
