Color: | Orange Yellow | New Or Used: | New |
---|---|---|---|
Performance: | Quality Product | OEM: | Customized |
Highlight: | 42000kgs Shipping Container Forklift,Weichai Engine Shipping Container Forklift,Weichai Engine Container Lifting Forklift |

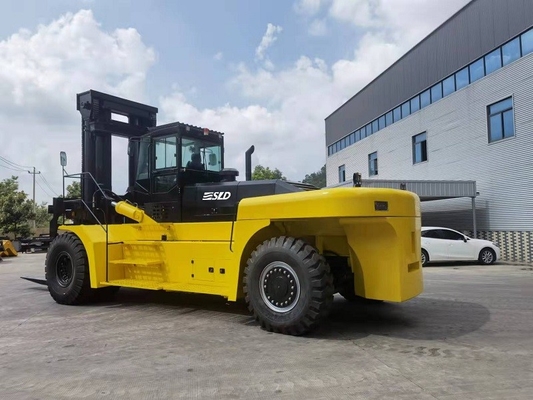

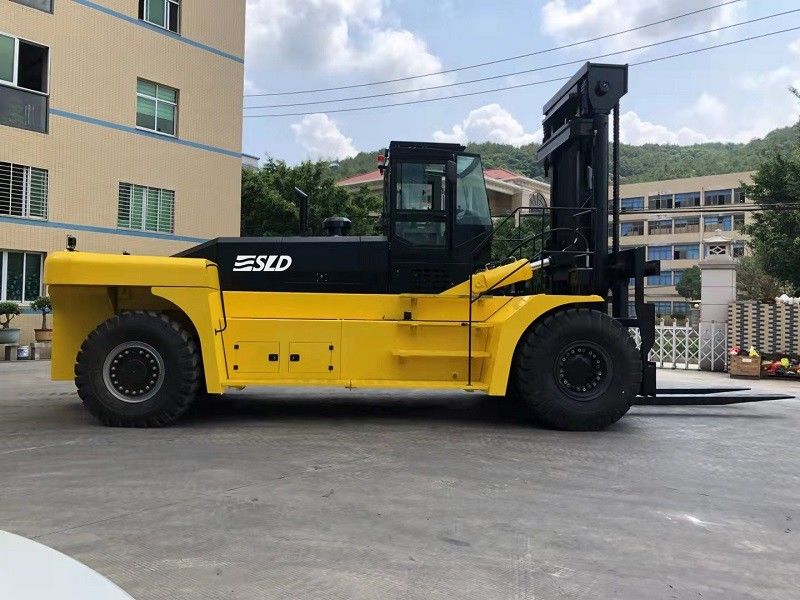

Rated Load 42000kgs FD420 Heavy Container Forklift With Best Factory Price
SLD 42 tons lift forklift compare of TCM 42 tons diesel forklift, cheaper price base on good quality.High return on investment.
Main configurations: Weichai engine (Model: WP12G375E350), Hydraulic transmission ZL80, Kessler heavy-duty axle
2 stage mast lifting height 4000mm, Fork length 2600mm,Side shift &Fork position,Pilot control valve,Full cabin with cooling A/C
Reverse Reverse alarm etc.
Item | Specification | Unit | SLD | ||
General | 1 | Model | FD420 | ||
3 | Power Type | Diesel | |||
4 | Rated Capacity | Kg | 42000 | ||
5 | Load Center | mm | 1250 | ||
Dimensions | 6 | Mast Lift Height | mm | 4000 | |
7 | Fork Size(LxWxT) | mm | 2600x300x130 | ||
8 | Fork Spread(outside)(Min./Max) | mm | 910/2830 | ||
9 | Mast Tilt Angle(F/R) | deg | 6·/12· | ||
10 | Fork Overhang | mm | 1180 | ||
11 | Overall Length without forks | mm | 8170 | ||
12 | Overall Width | mm | 3600 | ||
13 | Mast Lowered Height | mm | 5040 | ||
14 | Cabin Height | mm | 3820 | ||
15 | Min.Turning Radius | mm | 7730 | ||
Performance | 16 | Speed(Unload/Load) | Travel | km/h | 30/26 |
17 | Lifting | mm/s | 300 | ||
18 | Max.gradeability(Load) | % | 20 | ||
19 | Max.traction(Load) | KN | 240 | ||
20 | Service Weight | kg | 53000 | ||
Tires | 21 | Tire size | Front | 4X18.00-25-28PR | |
22 | Rear | 2X16.00-25-28PR | |||
23 | Tread | Front | mm | 2495 | |
24 | Rear | mm | 2880 | ||
25 | Wheelbase | mm | 5500 | ||
26 | Min.Ground Clearance(Under mast) | mm | 400 | ||
Power & Transmission | 27 | Battery | Voltage/Capacity(5HR) | V/Ah | 2X12/150 |
28 | Engine | Model | WP12G375E350 | ||
29 | Manufacture | WeiChai | |||
30 | Rated Output | Kw | 276 | ||
31 | Rated Torque | N.m | 1550 | ||
32 | No.Of Cyinder | 6 | |||
33 | Bore*stroke | mm | 126x155 | ||
34 | Displacement | L | 11.6 | ||
35 | Transmissions | Manufacture | ZL80 | ||
37 | Gears FWD/RVS | 4/4 | |||
38 | Operating Pressute | Mpa | 21 |
Note: the above data are subject to change without prior notice.
