Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Rated Load: | 3500kgs |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000mm |
| Wheelbase: | 1700mm | Service Weight: | 4500mm |
| Overall Dimension(without Fork): | 2770x1225x2175mm | Fork Size: | 1070x125x50mm |
| Engine: | ISUZU Or YANMAR | Transmission: | Hydraulic |
| High Light: | CE Hydraulic Diesel Forklift Truck,3500Kgs Diesel Forklift Truck,ORS Seat 3.5 Ton Forklift |
||

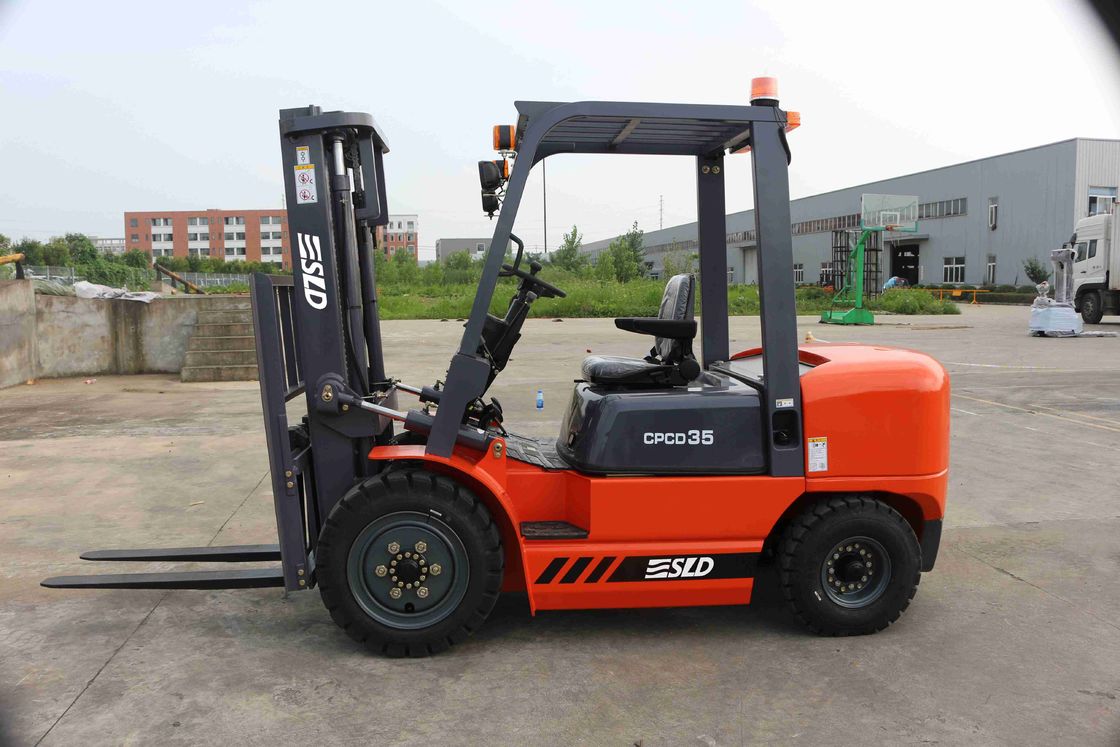

Rated Capacity 3500 Kgs CPCD3500 Forklift 3.5 Ton
Enviromental protection system
Install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise and high exhaust system as option to reduce dust.
Power system
Equipped with Chinese powerful and reliable engine with excellent environmental performance. Original imported ISUZU, YANMAR, MITSUBISHI and CUMMINS engines as options.
Hydraulic system
Adopt advanced load sense technology which offers flow for steering system to save energy, protect environment, and lower the system heat.
Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
Lighting system
Equipped with full set of LED lamps, which are brighter and energy saving.
|
General |
|
|
|
|
|
Model |
|
FD30 |
FD35 |
|
|
Power Type |
|
Diesel |
Diesel |
|
|
Load Capacity |
kg |
3000 |
3500 |
|
|
Load centre |
mm |
500 |
500 |
|
|
Tyre |
|
|
|
|
|
Tyre |
|
|
Pneumatic Tyre |
Pneumatic Tyre |
|
Front Tyre |
|
28*9-15-12PR |
28*9-15-12PR |
|
|
Rear Tyre |
|
6.50-10-10PR |
6.50-10-10PR |
|
|
Overall Dimension |
|
|
|
|
|
Lift Height |
mm |
3000 |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070*125*45 |
1070*125*50 |
|
Mast Tilt Angle |
F/R |
. |
6/12 |
6/12 |
|
Mast Lowered Height |
mm |
2115 |
2115 |
|
|
Mast Extended Height(with backrest) |
mm |
4175 |
4150 |
|
|
Length to face of fork(Without fork) |
mm |
2710 |
2750 |
|
|
Overall Width |
mm |
1225 |
1225 |
|
|
Overhead Guard Height |
mm |
2090 |
2090 |
|
| Travel Speed(Empty load) | km/h | 19 | 19 | |
| Lifting Speed(Full load) | mm/s | 440 | 420 | |
Engine Option
| Item | Manufacture | C/O | Model | No.of Cylinder | Displacement(CC) | Rated Output/r.p.m(kw) | Rated Torque/r.p.m(N.m) | Bore*Stroke |
| 1 | ISUZU | JAPAN | C240NKFC-01 | 4 | 2369 | 35.4/2500 | 137.7/1800 | 86*102 |
| 2 | ISUZU | JAPAN | 4JG2PE-01 | 4 | 3059 | 46/2450 | 184.7/1600-1800 | 95.4*107 |
| 3 | YANMAR | JAPAN | 4TNE98-BQFLC | 4 | 3318 | 42.1/2300 | 177.6-196.3/1700 | 98*110 |
| 4 | MITSUBISHI | JAPAN | S4S | 4 | 3331 | 35.3/2250 | 169/1700 | 94*120 |
| 5 | XINCHAI | CHINA | A498BPG-520 | 4 | 3170 | 45/2500 | 193/1800 | 98*105 |
| 6 | XINCHAI | CHINA | C490BPG-236 | 4 | 2670 | 40/2650 | 160/1800-2000 | 90*105 |
