Product Details:
Payment & Shipping Terms:
|
| Rated Load: | 2500kgs | Transmission: | Hydraulic |
|---|---|---|---|
| Power Type: | Diesel | Engine: | ISUZU Or YANMAR |
| Load Center: | 500mm | Lift Height: | 3000mm |
| Wheelbase: | 1600mm | Service Weight: | 3700mm |
| Fork Size: | 1070x120x40mm | Overall Dimension(without Fork): | 2600x1150x2055mm |
| High Light: | CPCD25 Diesel Forklift Truck,Capacity 2500 Kgs Diesel Forklift Truck,Led Lamps 2.5 Ton Forklift |
||

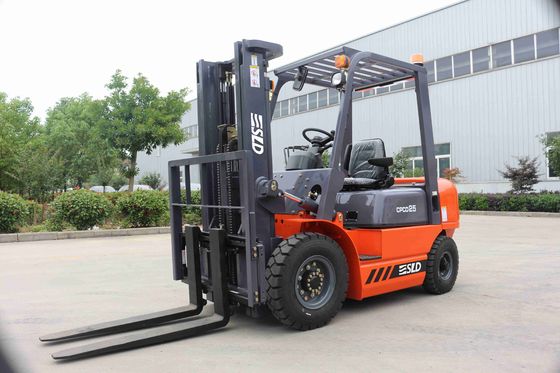

CPCD2500 Load Capacity 2500kgs 2.5 TONS Diesel Forklift Economic Price
Equipped with Chinese powerful and reliable engine with excellent environmental performance. Original imported ISUZU, YANMAR, MITSUBISHI and CUMMINS engines as options.
2. Enviromental protection system
Install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise and high exhaust system as option to reduce dust.
3. Hydraulic system
Adopt advanced load sense technology which offers flow for steering system to save energy, protect environment, and lower the system heat.
4. Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
5. Lighting system
Equipped with full set of LED lamps, which are brighter and energy saving.
| General | ||||
| Model | FD20 | FD25 | ||
| Power Type | Diesel | Diesel | ||
| Load Capacity | kg | 2000 | 2500 | |
| Load centre | mm | 500 | 500 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 7.00-12-12PR | 7.00-12-12PR | ||
| Rear Tyre | 6.00-9-10PR | 6.00-9-10PR | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1070*120*40 | 1070*120*40 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2070 | 2070 | |
| Mast Extended Height(with backrest) | mm | 4070 | 4070 | |
| Length to face of fork(Without fork) | mm | 2590 | 2590 | |
| Overall Width | mm | 1150 | 1150 | |
| Overhead Guard Height | mm | 2070 | 2070 | |
