Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Engine: | Mitsubishi |
|---|---|---|---|
| Transmission: | Hydraulic | Rated Load: | 10000kgs |
| Overall Dimension(without Fork): | 4280x2170x2830mm | Service Weight: | 13000mm |
| Load Center: | 600mm | Lift Height: | 3000mm |
| Wheelbase: | 2800mm | Fork Size: | 1520x175x85mm |
| High Light: | CE Driving Axle Diesel Forklift Truck,10 Ton Diesel Forklift Truck |
||

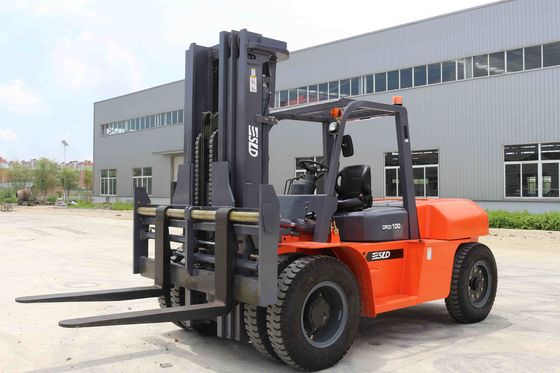

Rated Load 10000kgs 10 Ton Diesel Forklift With Big Power Environmental Performance
1. Hydraulic system
Adopt advanced load sense technology which offers flow for steering system to save energy, protect environment, and lower the system heat.
2. Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3. Lighting system
Equipped with full set of LED lamps, which are brighter and energy saving.
4. Power system
Equipped with Chinese powerful and reliable engine with excellent environmental performance. Original imported ISUZU, MITSUBISHI and CUMMINS engines as options.
5. Heavy-duty driving axle
Install heavy-duty driving axle to ensure safety work at bad working conditions.
| l | ||||
| Model | FD100 | FD120 | ||
| Power Type | Diesel | Diesel | ||
| Load Capacity | kg | 10000 | 12000 | |
| Load centre | mm | 600 | 600 | |
| Tyre | ||||
| Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
| Front Tyre | 9.00-20-14PR | 11.00-20-16PR | ||
| Rear Tyre | 9.00-20-14PR | 9.00-20 | ||
| Overall Dimension | ||||
| Lift Height | mm | 3000 | 3000 | |
| Fork Size | L×W×T | mm | 1520×175×85 | 1520×180×100 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2830 | 3080 | |
| Mast Extended Height(with backrest) | mm | 4335 | 4500 | |
| Length to face of fork(Without fork) | mm | 4280 | 4700 | |
| Overall Width | mm | 2170 | 2200 | |
| Overhead Guard Height | mm | 2570 | 2590 | |
