Product Details:
Payment & Shipping Terms:
|
Rated Load: | 25000kgs | Load Center: | 1200mm |
---|---|---|---|
Length Of Roll Prong: | 2000mm | Mast Lifting Height: | 4000mm |
Engine: | Weichai Or CUMMINS | Transmission: | Electronic Control Hydraulic Powershift |
Color: | Orange Red, Yellow, Customized | New Or Used: | New |
Performance: | Quality Product | OEM: | Customized |
Highlight: | Steel Coils Lifting Diesel Operated Forklift,Container Handling Diesel Operated Forklift,15 Ton Diesel Operated Forklift |

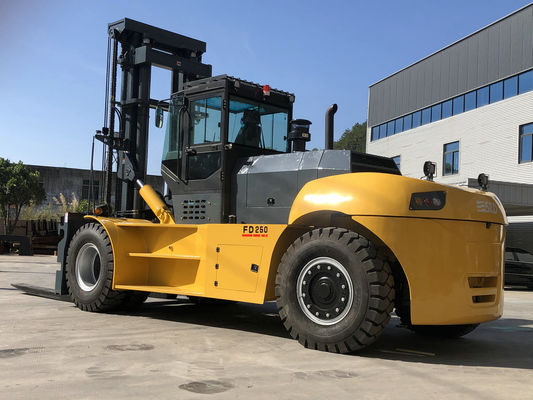

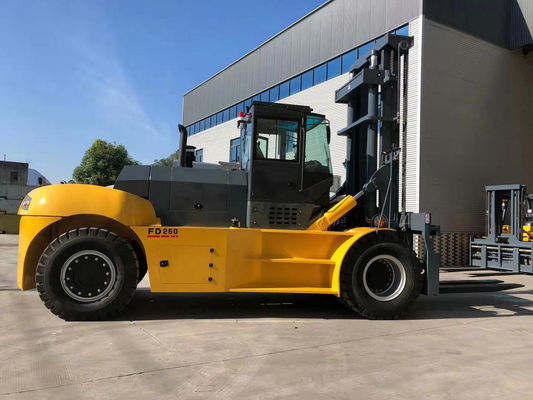

Container Forklift Truck Machine 15 Ton 20 Ton 25 Ton 30 Ton Diesel Forklift Price With Steel Coils Lifting
We (Xiamen Sealand Development Co., Ltd) are professional manufacturer and supplier and trade company of material handling equipment and construction machinery in Xiamen city, Fujian province, China.
Container material handling equipments including 1.5 tons to 35 tons forklifts, 45 tons container reach stacker, 8tons / 9tons empty container handler etc. These products are widely used in factory warehouse,Port wharf, Shipping industry, Logistics transportation industry, steel industry etc.
Main features:
1.Adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, sa-tisfies the requirement of high efficiency operation.
2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.
3. Adopt double turbine hydraulic torque converter, stepless speed change, single level control for the speed changing.
4. Variable speed control valve matched with neutral starter, the machine start more secure.
5. Front axle adopt heavy duty type driving axle, enlarge the size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist,steel structure bridge shell support, increase the load capacity and service life.
6. Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
7. Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
8. Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.Note: the above data are subject to change without prior notice.
Parameters: | Vehicle configuration | FD250 | ||
Performance | Rated load | 25000 | ||
Load center | 1200 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9010 | |
Width | mm | 3060 | ||
Height | mm | 3960 | ||
Mast lifting height | mm | 4000 | ||
Fork size (L*W*H) | mm | 2400X300X120 | ||
Min. turning radius | mm | 6160 | ||
Max. travel speed (with load) | Km/h | 25 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 34500 | ||
Tyre | Front | 4X14.00-24/28PR | ||
Rear | 2X14.00-24/28PR | |||
Wheel tread | Front | mm | 2200 | |
Rear | mm | 2170 | ||
Wheelbase | mm | 4400 | ||
Min. ground clearance | mm | 350 | ||
Engine | Model | WD10G220E21 | ||
Rated power | KW | 162 | ||
Max. torque | N.m | 786 |
Note: the above data are subject to change without prior notice.
