Product Details:
Payment & Shipping Terms:
|
Rated Load: | 25000kgs | Load Center: | 1200mm |
---|---|---|---|
Length Of Roll Prong: | 2000mm | Mast Lifting Height: | 4000mm |
Engine: | Weichai Or CUMMINS | Transmission: | Electronic Control Hydraulic Powershift |
Color: | Orange Red, Yellow, Customized | New Or Used: | New |
Performance: | Quality Product | OEM: | Customized |
Highlight: | SLD Diesel Heavy Lift Forklift,Heavy Lift Forklift With CUMMINS Engine,35 Ton Heavy Lift Forklift |

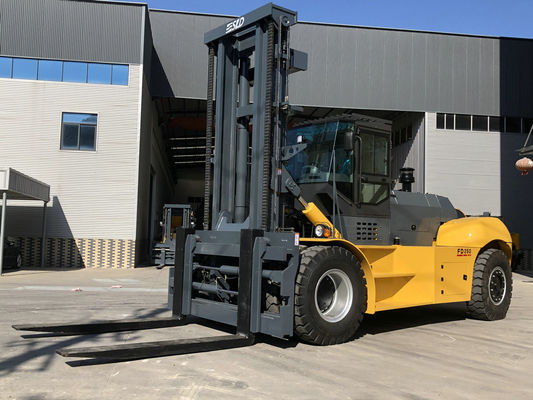

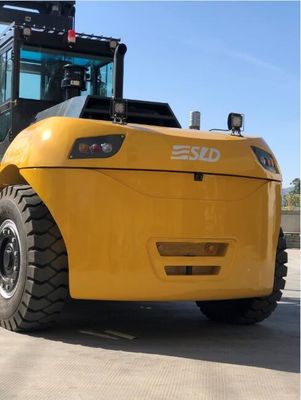

New SLD Heavylift Truck 25 Ton 28ton 30 Ton 32ton 35 Ton Diesel Forklift Truck Hot Sale
China 25 Ton Diesel Forklift Truck Cheapest price 25000KG Trucks/Double Mast Forklift/Big load Lifting Capacity
Main features of 25 ton forklift:
1.Adopt Cummins, Weichai, Yuchai turbocharging engine, powerful, energy conservation, environmental protection, sa-tisfies the requirement of high efficiency operation.
2. Use Hangchi, Sanchi planet type hydraulic power shift transmission, big traction in combined operating condition.
3. Adopt double turbine hydraulic torque converter, stepless speed change, single level control for the speed changing.
4. Variable speed control valve matched with neutral starter, the machine start more secure.
5. Front axle adopt heavy duty type driving axle, enlarge the size of axle housing, hub and bearing, spiral bevel gear and wheel planetary wheel deceleration increasing twist,steel structure bridge shell support, increase the load capacity and service life.
6. Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
7. Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
8. Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.Note: the above data are subject to change without prior notice.
Parameters: | Vehicle configuration | FD250 | ||
Performance | Rated load | 25000 | ||
Load center | 1200 | |||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9010 | |
Width | mm | 3060 | ||
Height | mm | 3960 | ||
Mast lifting height | mm | 4000 | ||
Fork size (L*W*H) | mm | 2400X300X120 | ||
Min. turning radius | mm | 6160 | ||
Max. travel speed (with load) | Km/h | 25 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 34500 | ||
Tyre | Front | 4X14.00-24/28PR | ||
Rear | 2X14.00-24/28PR | |||
Wheel tread | Front | mm | 2200 | |
Rear | mm | 2170 | ||
Wheelbase | mm | 4400 | ||
Min. ground clearance | mm | 350 | ||
Engine | Model | WD10G220E21 | ||
Rated power | KW | 162 | ||
Max. torque | N.m | 786 |
Note: the above data are subject to change without prior notice.
