Color: | Orange Red, Yellow, Customized | New Or Used: | New |
---|---|---|---|
Performance: | Quality Product | OEM: | Customized |
Rated Load: | 30000kgs | Mast Lifting Height: | 4000mm |
Load Center: | 1250mm | Length Of Roll Prong: | 2400mm |
Engine: | Weichai Or CUMMINS | Transmission: | Hydraulic Powershift |
Highlight: | 4000mm Container Handling Forklift,4000mm Container Lifting Forklift,FD300 Fork Loader |

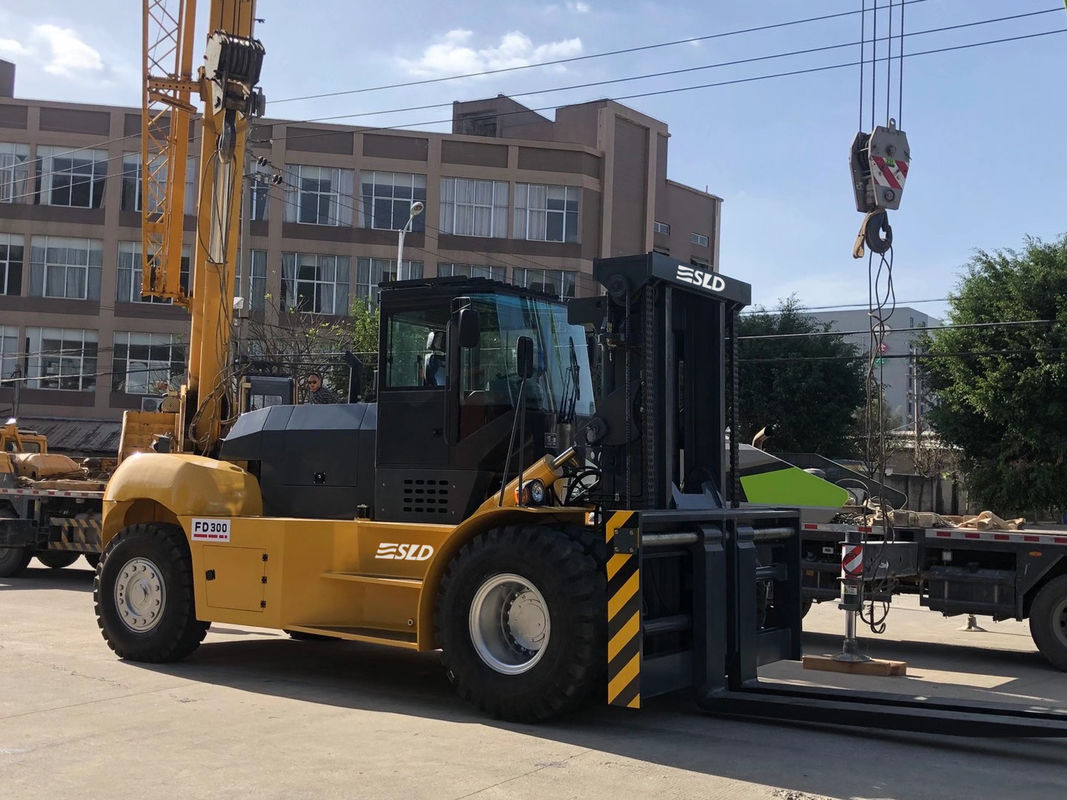

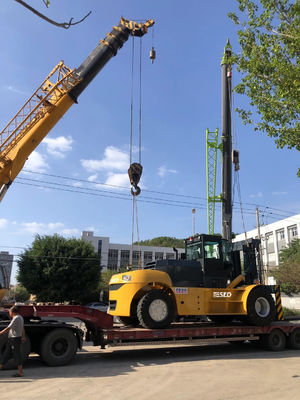

Container Material Handling Equipments 30 Ton Use For Stacking Heavy Containers In Shipyard
Xiamen Sealand Development Co., Ltd is a professional manufacturer and supplier of container material handling equipment and construction machinery in Quanzhou city, Fujian province, China.
Container material handling equipments including 12 tons~35 tons heavy duty lift forklift, 45 tons container reach stacker, 8tons / 9tons empty container handler etc. These products are widely used in Port wharf, Shipping industry, Logistics transportation industry, steel industry etc.
Construction machinery including 5 tons to 42 tons forklift loaders, they are widely used in stone block handling in quarry site and stone stockyard etc.
Item | Specification | Unit | |||
General | 1 | Model | FD300 | ||
2 | Power Type/model | Diesel | |||
3 | Rated Capacity | Kg | 30000 | ||
4 | Load Center | mm | 1250 | ||
Dimensions | 5 | Lift Height | mm | 4000 | |
6 | Fork size | mm | 2400*300*120 | ||
7 | Mast Tilt Angle(F/R) | deg | 6/12 | ||
8 | Fork Overhang | mm | 1190 | ||
9 | Overall Dimensions | Length without forks | mm | 7160 | |
10 | Overall Width | mm | 3200 | ||
11 | Mast Lowered Height | mm | 3960 | ||
12 | Overhead Guard Height | mm | 3690 | ||
13 | Min.Outer turning Radius | mm | 6480 | ||
Performance | 14 | Speed | Travel (Unload/Load) | km/h | 28/24 |
15 | Lifting (Unload/Load) | mm/s | 250/180 | ||
16 | Max.gradeability(Load) | % | 20 | ||
17 | Max.traction(Load) | KN | 200 | ||
18 | Service Weight | kg | 38000 | ||
Wheels&Tires | 19 | Tire | Front | 4×14.00-24-32PR | |
20 | Rear | 2×14.00-24-32PR | |||
21 | Tread | Front | mm | 2330 | |
22 | Rear | mm | 2140 | ||
23 | Wheelbase | mm | 4800 | ||
24 | Min.Ground Clearance(Under mast) | mm | 350 | ||
Power & Transmission | 25 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/150 |
26 | Engine | Model | WD10G240E21 | ||
27 | Manufacturer | WEICHAI | |||
28 | Rated Output | Kw | 178 | ||
29 | Rated Torque | N.m | 2200 | ||
30 | No.Of Cyinder | 6 | |||
31 | Bore*stroke | mm | 114 | ||
32 | Displacement | L | 8.3 | ||
33 | Transmissions | Model | ZL60 | ||
34 | Gearshift (FWD/RVS) | 2/1 | |||
35 | Operating Pressute | Mpa | 21 |
Note: the above data are subject to change without prior notice.
Main features of 30 tons diesel forklift with roll prong:
Engine: Adopt Cummins or Weichai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
