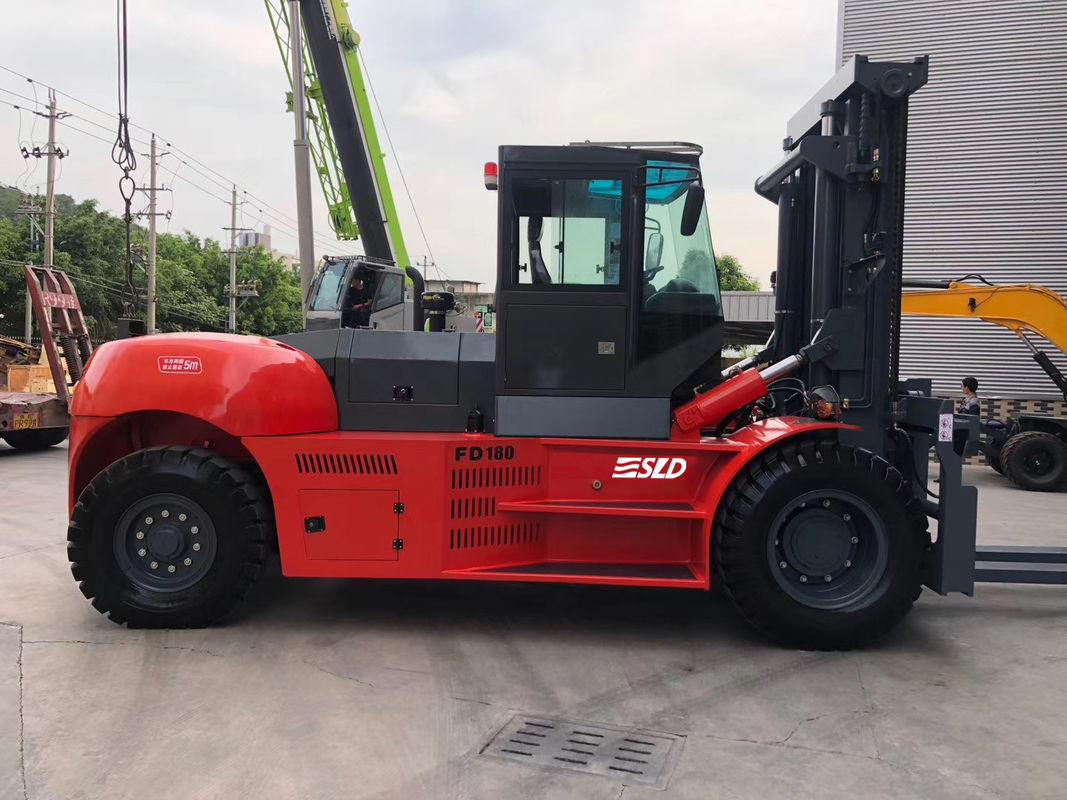

CPCD180 18t 3.5m Heavy Lift Forklift with Positioner Side Shift

CPCD180 18t 3.5m Heavy Lift Forklift with Positioner Side Shift
CPCD180 18t 3.5m Heavy Lift Forklift with Positioner Side Shift

Large Image :  CPCD180 18t 3.5m Heavy Lift Forklift with Positioner Side Shift

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD180
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD76,923.00 unit
Packaging Details: Flat rack container
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Detailed Product Description
Overall Size: 7200x2550x3460mm Wheelbase: 3600mm
Mast Lifting Height: 3500mm Rated Load: 18000kgs
Load Center: 900mm Service Weight: 25000kgs
Engine: Yuchai Or CUMMINS Transmission: Hydraulic
Color: Orange Red, Customized New Or Used: New
Highlight:

CPCD180 Forklift Tr

,

CPCD180 18t Heavy Lift Forklift

,

FD180 Heavy Lift Forklifts

18 Ton Forklift Combustion Balance Heavy Forklift 16 Ton Diesel Forklift



Main configurations:

Engine: Cummins Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection

Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable

Transmission & torque convert: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation

Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity

Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance

Pipeline: high pressure oil line use the famous brand, impact resistance, wear resistance and long service life

Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable

Fork: use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity

Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance



Model


FD180
Features
Rated Load
Kg
18000
Load Center
mm
900
Wheelbase
mm
3600
Weight
Weight
Kg
25000
Chassis
Tire Specs:Front

12.00-24
Tire Specs:Rear

12.00-20
Tires Qty,front/rear(X-dreve wheels)

4/2
Wheel tread:Front
mm
2070
Wheel tread:Rear
mm
2130
Dimensions
Mast/carriage tilt angle(front/rear)
Degree(°)
6/12
Mast height(fork lowering)
mm
3460
Mast lifting height
mm
3500
Max.height
mm
5220
height to head guard(height to cab)
mm
3220
Overall height(with forks)
mm
7200
Fork front verticaal sueface to the rear end of the vehicle
mm
5400
Overall width
mm
2750
Fork dimension
mm
1800*200*90
Fork carriage width
mm
2500
Mast min ground(with load)
mm
270
Wheelbase center min ground(with load)
mm
310
Min.turning Radius
mm
5050
Travel speed(with load/without load)
km/h
22/30
Performance
Max.lifting speed(with load/without load)
mm/s
240/300
traction
KN
120
gradeability(with load/without load)
%
20/22
Driving brake

Hydraulic clamp disvc
Engine
Engine
brand
Yuchai Engine
model
YC6J175-T302
Rated Output
129(Kw)
Cylinder No
6
Others
Transmission gears(Front/rear)

2/1

Note: the above data are subject to change without prior notice.
