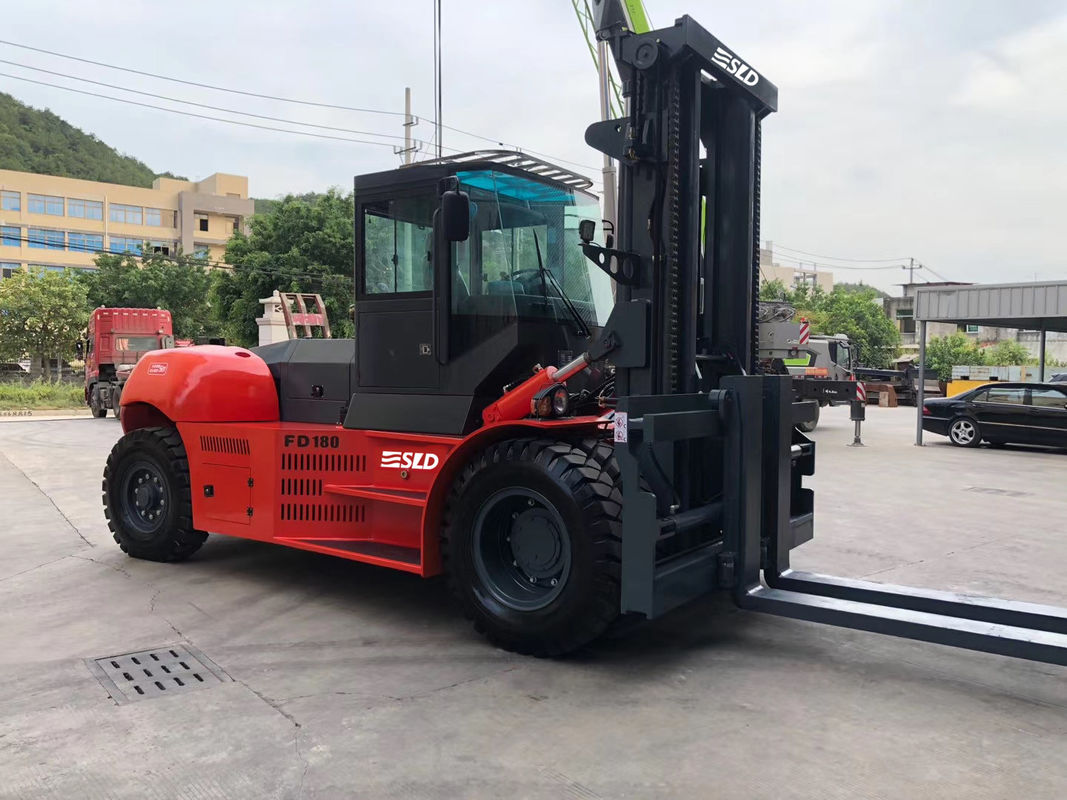

3.5m Mast 36000 LBS 18 TON FD180 Heavy Duty Forklift Machine

3.5m Mast 36000 LBS 18 TON FD180 Heavy Duty Forklift Machine
3.5m Mast 36000 LBS 18 TON FD180 Heavy Duty Forklift Machine

Large Image :  3.5m Mast 36000 LBS 18 TON FD180 Heavy Duty Forklift Machine

Product Details:
Place of Origin: China
Brand Name: SLD
Certification: ISO, CE
Model Number: FD180
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD76,923.00 unit
Packaging Details: Flat rack container
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
Detailed Product Description
Rated Load: 18000kgs Load Center: 900mm
Mast Lifting Height: 3500mm Overall Size: 7200x2550x3460mm
Service Weight: 25000kgs Engine: Yuchai Or CUMMINS
Transmission: Hydraulic Wheelbase: 3600mm
Color: Orange Red, Customized New Or Used: New
Highlight:

FD180 Forklifts

,

3500mm 18ton forklift Machine

,

FD180 18t Heavy Duty Forklift

18 Ton Forklift Combustion Balance Heavy Forklift 16 Ton Diesel Forklift



Main configurations:

1. Original Parker hydraulic valve and pump.
2. Heigh strength 3.5m lifting height mast and 1800mm longer fork.
3. FOPS/ROPS cab and OPS/ORS adjustable suspension seat.
4. Standard enclosed operator cabin, air-conditioner, fork positioner.
5. Optional Cummins engine, HangChi ZF technique transmission.

6. Full LED light, suitable for port night operation



Model


FD180
Features
Rated Load
Kg
18000
Load Center
mm
900
Wheelbase
mm
3600
Weight
Weight
Kg
25000
Chassis
Tire Specs:Front

12.00-24
Tire Specs:Rear

12.00-20
Tires Qty,front/rear(X-dreve wheels)

4/2
Wheel tread:Front
mm
2070
Wheel tread:Rear
mm
2130
Dimensions
Mast/carriage tilt angle(front/rear)
Degree(°)
6/12
Mast height(fork lowering)
mm
3460
Mast lifting height
mm
3500
Max.height
mm
5220
height to head guard(height to cab)
mm
3220
Overall height(with forks)
mm
7200
Fork front verticaal sueface to the rear end of the vehicle
mm
5400
Overall width
mm
2750
Fork dimension
mm
1800*200*90
Fork carriage width
mm
2500
Mast min ground(with load)
mm
270
Wheelbase center min ground(with load)
mm
310
Min.turning Radius
mm
5050
Travel speed(with load/without load)
km/h
22/30
Performance
Max.lifting speed(with load/without load)
mm/s
240/300
traction
KN
120
gradeability(with load/without load)
%
20/22
Driving brake

Hydraulic clamp disvc
Engine
Engine
brand
Yuchai Engine
model
YC6J175-T302
Rated Output
129(Kw)
Cylinder No
6
Others
Transmission gears(Front/rear)

2/1

Note: the above data are subject to change without prior notice.
