Product Details:
Payment & Shipping Terms:
|
Rated Load: | 18000kgs | Load Center: | 900mm |
---|---|---|---|
Mast Lifting Height: | 3500mm | Engine: | Yuchai Or CUMMINS |
Transmission: | Hydraulic | Wheelbase: | 3600mm |
Service Weight: | 25000kgs | Overall Size: | 7200x2550x3460mm |
Color: | Orange Red, Customized | New Or Used: | New |
Highlight: | FD180 Forklift Loading Truck,FD180 Diesel Forklift,FD180 16Ton Forklift |

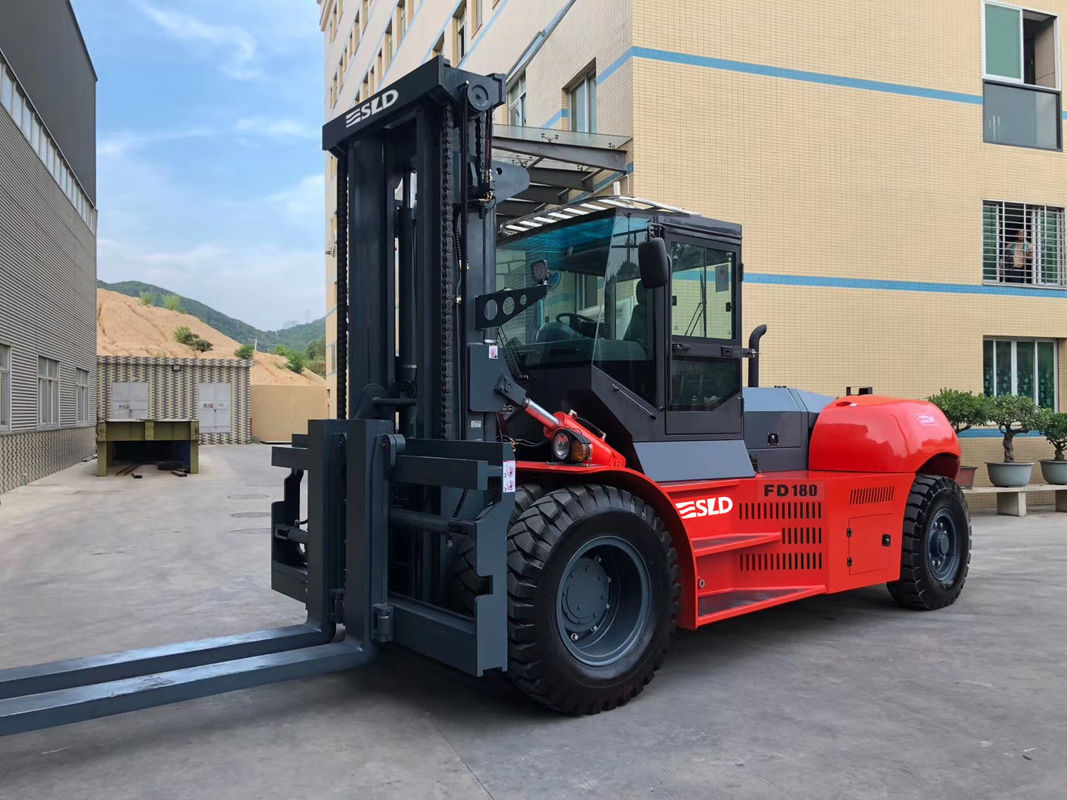

18 Ton Forklift Combustion Balance Heavy Forklift 16 Ton Diesel Forklift
Item | Specification | Unit | |||
General | 1 | Model | FD180 | ||
2 | Power Type/model | Diesel | |||
3 | Rated Capacity | Kg | 18000 | ||
4 | Load Center | mm | 900 | ||
Dimensions | 5 | Lift Height | mm | 3500 | |
6 | Fork Size(LxWxT) | mm | 2000×220×90 | ||
7 | Fork Spread(outside)(Min./Max) | mm | 540/2260 | ||
8 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
9 | Fork Overhang | mm | 800 | ||
10 | Length without forks | mm | 5400 | ||
11 | Overall Width | mm | 2550 | ||
12 | Mast Lowered Height | mm | 3460 | ||
13 | Overhead Guard Height | mm | 3300 | ||
14 | Outer turning Radius | mm | 5050 | ||
Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
16 | Lifting | mm/s | 300 | ||
17 | Max.gradeability(Load) | % | 20 | ||
18 | Max.drawbar pull(Load) | KN | 120 | ||
19 | service Weight | kg | 22000 | ||
Wheels&Tires | 20 | Tire | Front | 4×12.00-24-18PR | |
21 | Rear | 2×12.00-20-18PR | |||
22 | Tread | Front | mm | 1850 | |
23 | Rear | mm | 2130 | ||
24 | Wheelbase | mm | 3600 | ||
25 | Ground Clearance(Under mast) | mm | 260 | ||
Power & Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/120 |
27 | Engine | Model | YC6J175-T302 | ||
28 | Manufacture | YUCHAI | |||
29 | Rated Output | Kw | 129 | ||
30 | Rated Torque | N.m | 710 | ||
31 | No.Of Cyinder | 6 | |||
32 | Bore*stroke | mm | 102/120 | ||
33 | Displacement | L | 6.5 | ||
34 | Transmission | Type | Fluid Torque Converter | ||
35 | StageFWD/RVS | 2/1 | |||
36 | Operating Pressute | Mpa | 19 |
Main configurations:
Engine: 18 ton diesel forklift truck use Yuchai Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: 18tons diesel forklift truck adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: 18 ton diesel forklift truck matched with imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Hydraulic system: 18 tons diesel forklift truck has double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use famous brand Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: 3.5-6m box-type internal-external mast, special all-round roller bearings, increase lifting performance
Note: the above data are subject to change without prior notice.
