Power Type: | Diesel | Overall Dimension(without Fork): | 4280x2170x2830mm |
---|---|---|---|
Service Weight: | 13000mm | Rated Load: | 10000kgs |
Load Center: | 600mm | Lift Height: | 3000mm |
Wheelbase: | 2800mm | Fork Size: | 1520x175x85mm |
Engine: | ISUZU | Transmission: | Hydraulic |
Highlight: | cpcd100 20k Forklift,CPCD100,cpcd100 forklift |

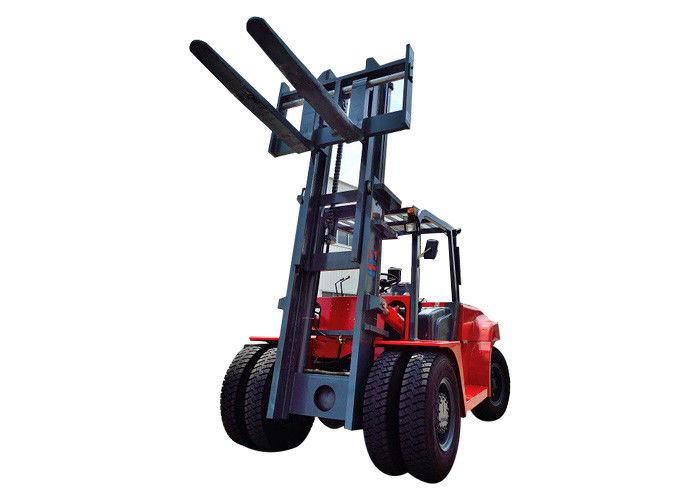

CPCD100 Fork lift 10 Ton Diesel Forklift Truck With full cabin AC
Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
Environmental:
Middle muffler, more environmental.
High technology:
Maintenance free radiators adopt Germany technology.
Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
l | ||||
Model | FD100 | FD120 | ||
Power Type | Diesel | Diesel | ||
Load Capacity | kg | 10000 | 12000 | |
Load centre | mm | 600 | 600 | |
Tyre | ||||
Tyre | Pneumatic Tyre | Pneumatic Tyre | ||
Front Tyre | 9.00-20-14PR | 11.00-20-16PR | ||
Rear Tyre | 9.00-20-14PR | 9.00-20 | ||
Overall Dimension | ||||
Lift Height | mm | 3000 | 3000 | |
Fork Size | L×W×T | mm | 1520×175×85 | 1520×180×100 |
Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
Mast Lowered Height | mm | 2830 | 3080 | |
Mast Extended Height(with backrest) | mm | 4335 | 4500 | |
Length to face of fork(Without fork) | mm | 4280 | 4700 | |
Overall Width | mm | 2170 | 2200 | |
Overhead Guard Height | mm | 2570 | 2590 |
